Pressure Control Solenoid: Installation

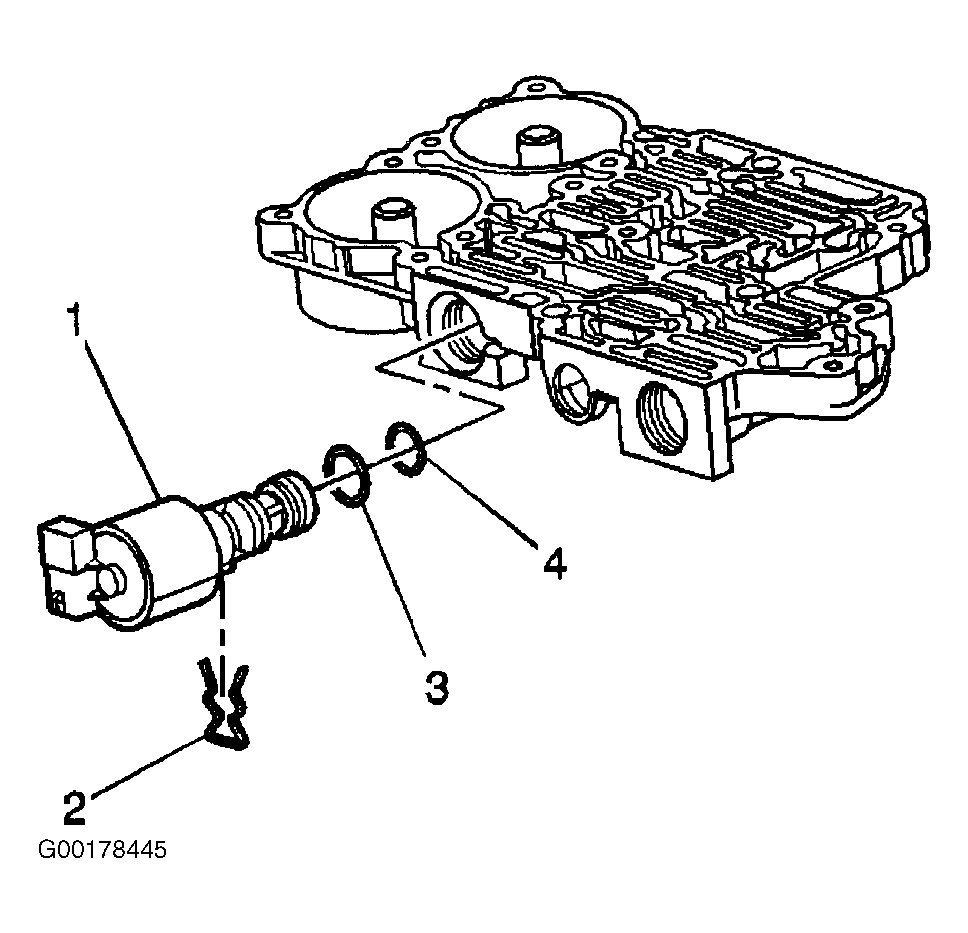

  1. Install new "O" ring seals (3-4) to the pressure control solenoid (1), if the "O" rings were previously removed. See Figure.
  2. Install the pressure control solenoid (1) into the control valve body.

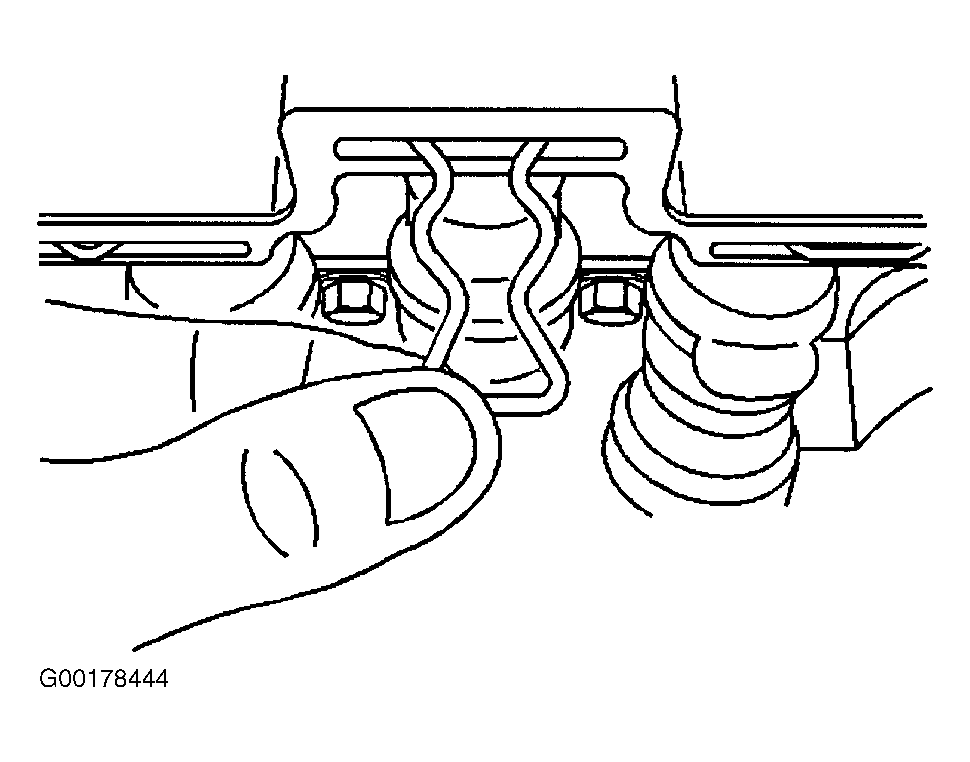

  3. Install the pressure control solenoid retainer into the control valve body. See Figure.

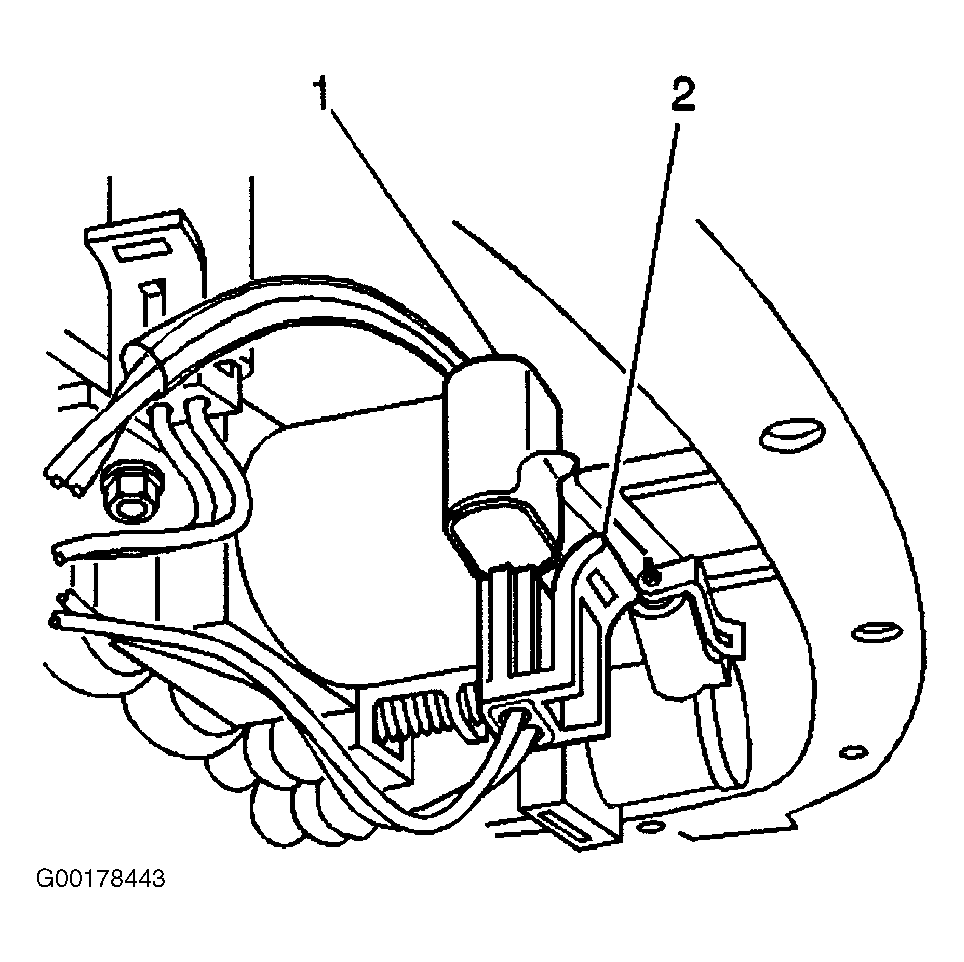

  4. Connect the electrical wiring harness connector (2) to the pressure control solenoid (1). See Figure.
  5. Install the transmission oil pan and filter.
