Floor Shift Control Boot: Installation

  1. Install the shift control boot and knob assembly onto the shift lever.

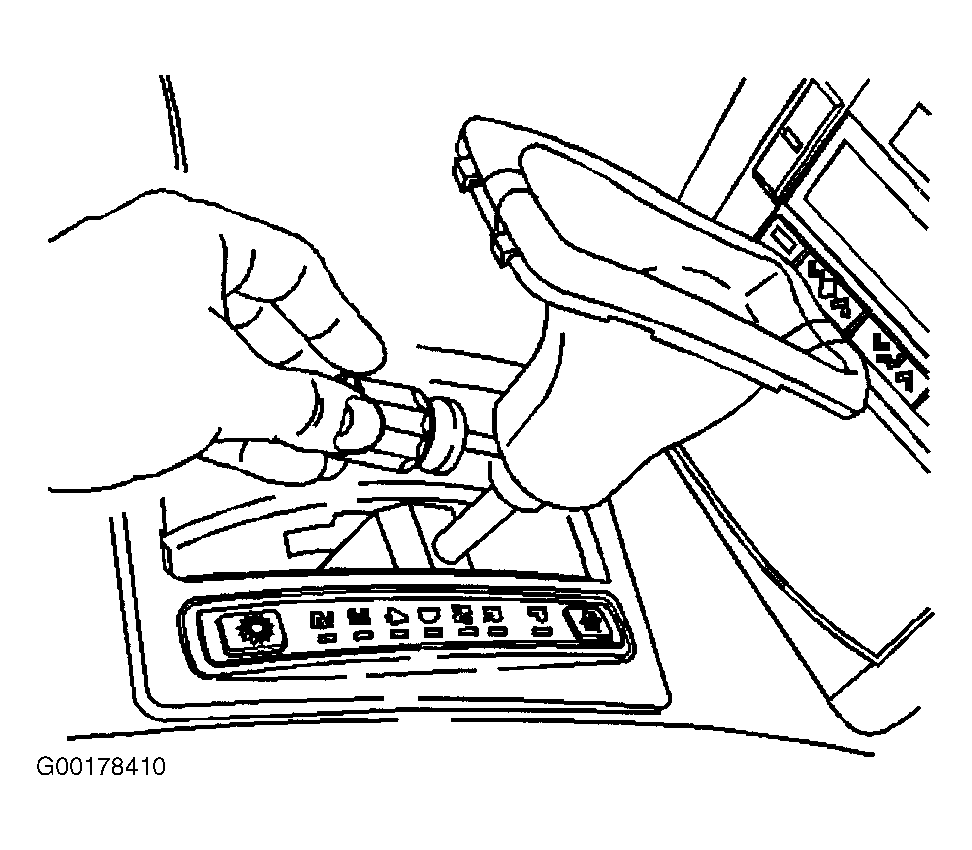

  2. Install the shift knob retaining screw. See Figure.

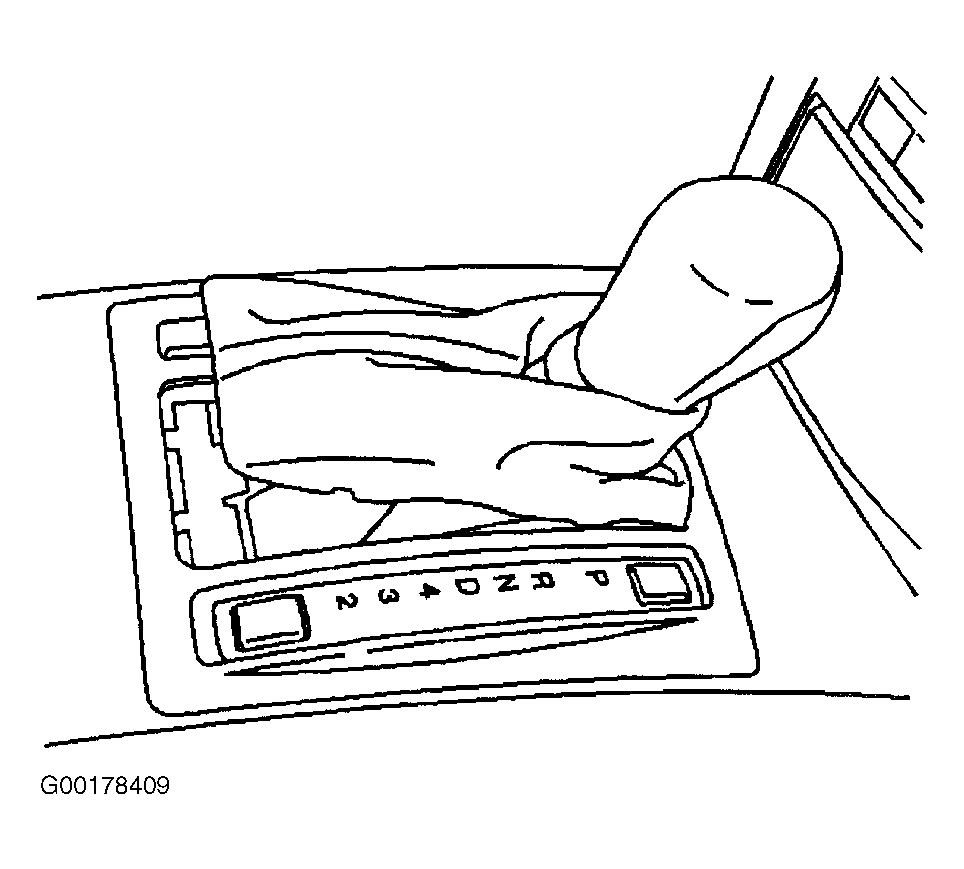

  3. Insert the front tabs of the shift control boot into the console trim plate opening. See Figure.
  4. Press the rear of the shift control boot down into the console trim plate opening.
  5. Tug lightly to insure the shift control boot is securely attached to the console trim plate opening.
