Installation Procedure

  1. Install the stabilizer shaft insulators (3) to the stabilizer shaft with the slit facing rearward.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the stabilizer shaft bracket (2) and mounting bolts (1).

    Tighten

    Tighten the bolts to 60 N.m (44 lb ft).

  3. Lower the vehicle.

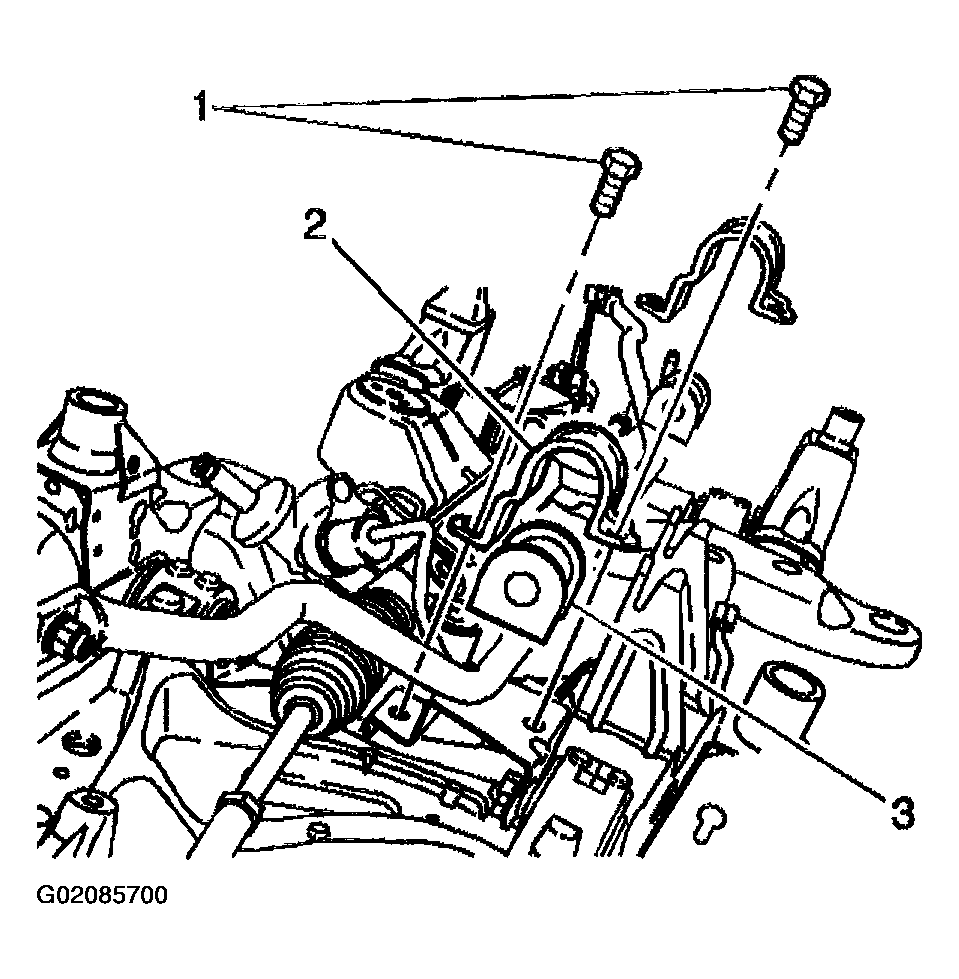

    Fig 1: Stabilizer Shaft Insulators
    G02085700Courtesy of GENERAL MOTORS CORP.
