Schematic Wiring Diagrams

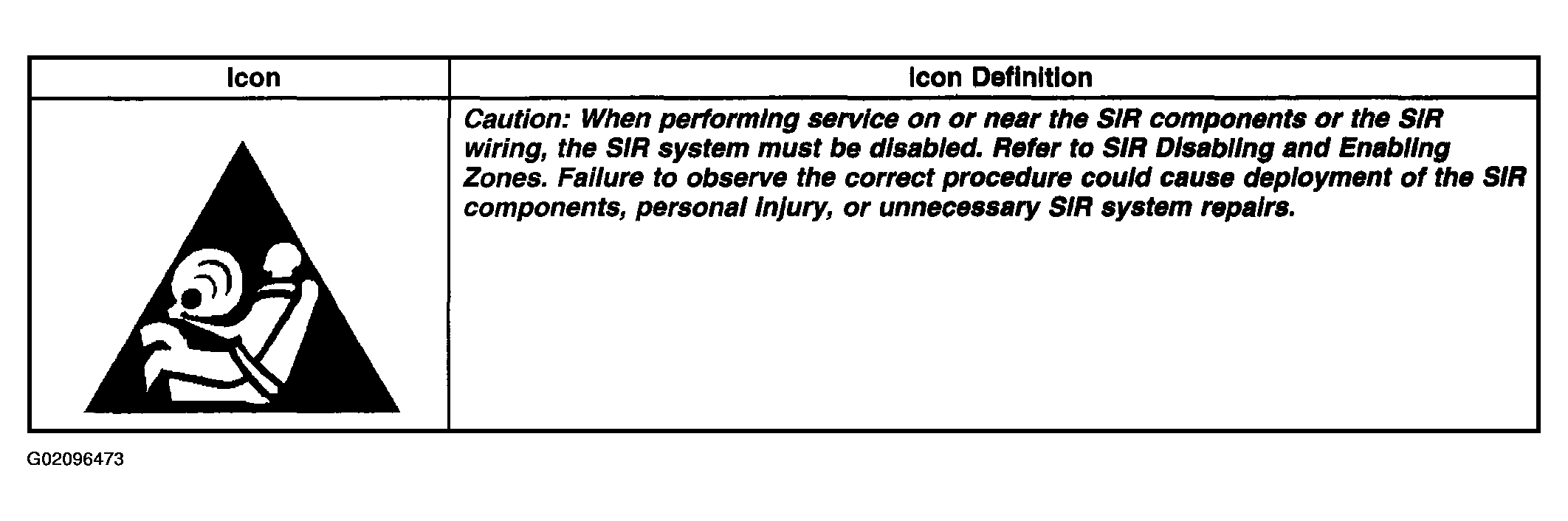

Fig 1: Seat Belt Schematic Icons

G02096473

Courtesy of GENERAL MOTORS CORP.

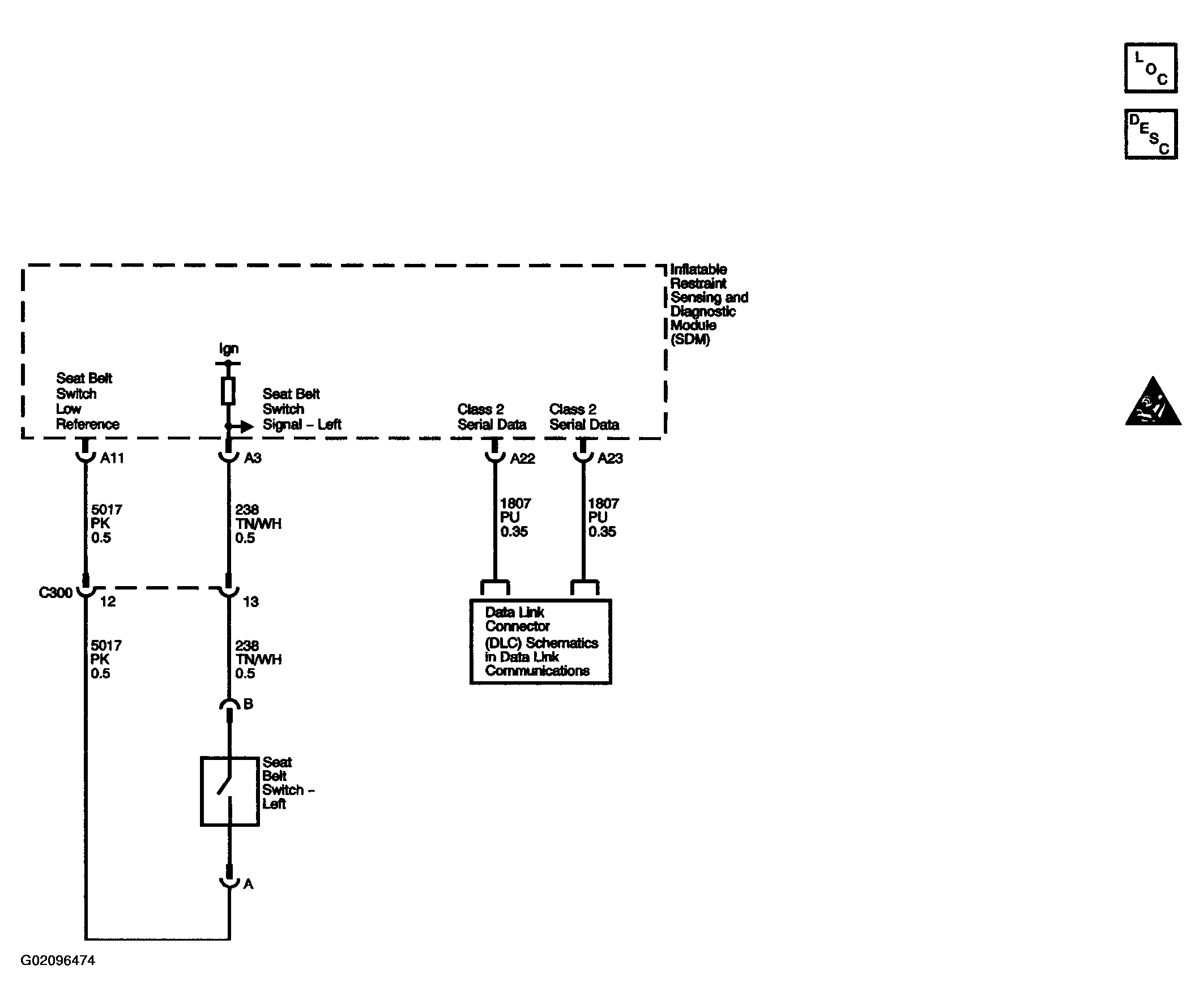

Fig 2: Seat Belt Schematics

G02096474

Courtesy of GENERAL MOTORS CORP.
