Home
>>
Cadillac
>>
2003
>>
CTS Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt System
>>
Component Locator
>>
Seat Belt Connector End Views
Seat Belt Connector End Views

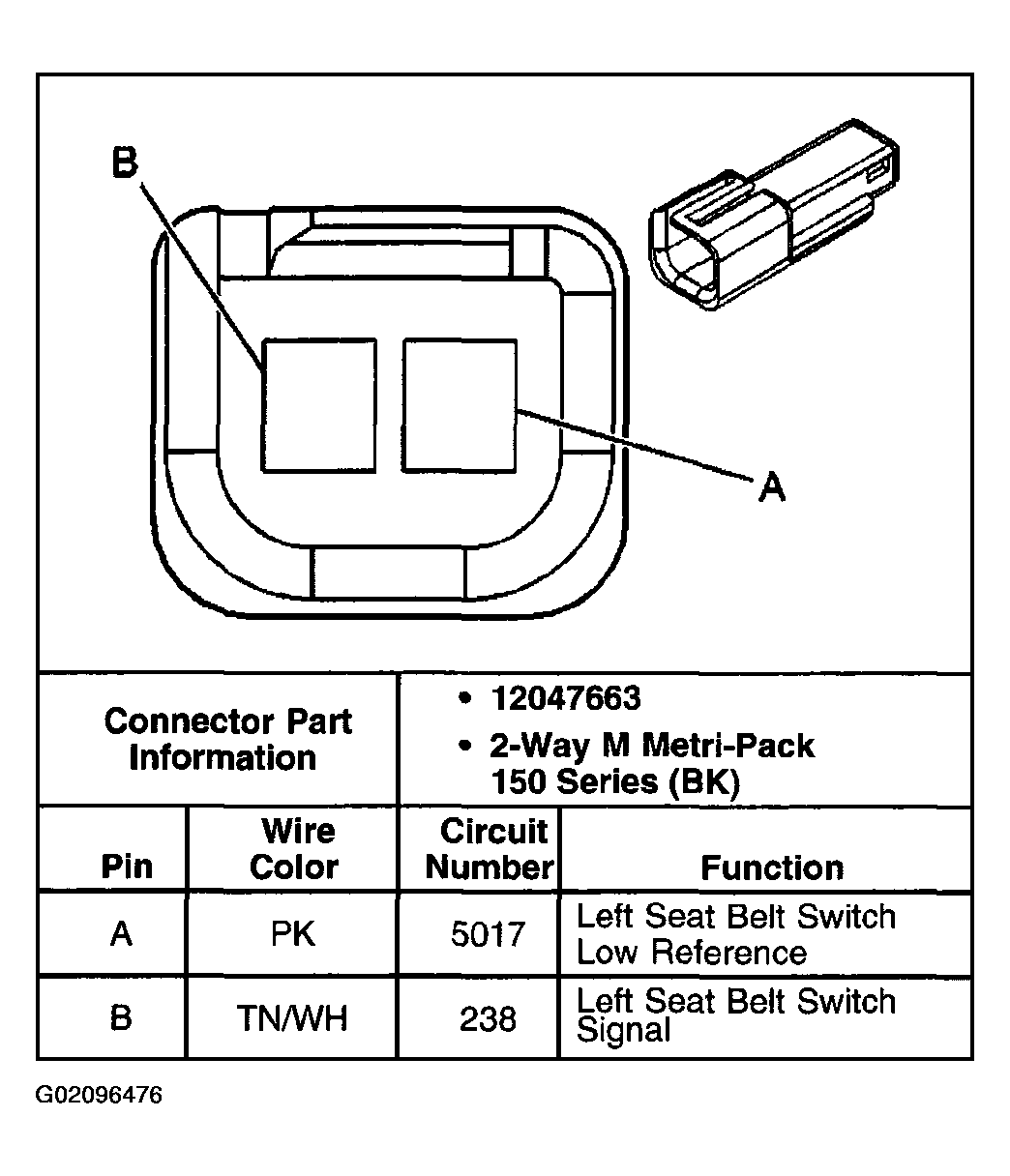

Fig 1: Identifying Seat Belt Switch Connector End View - Left
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
