Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

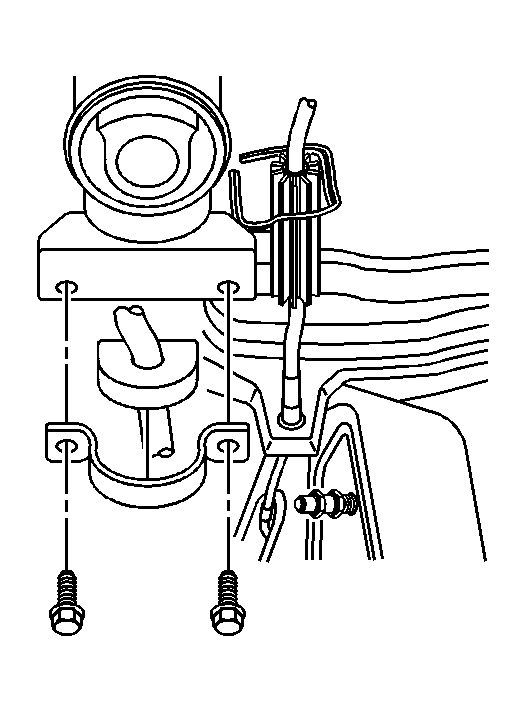

    Fig 1: Installing Stabilizer Shaft Insulator To Stabilizer Shaft
    GM802054Courtesy of GENERAL MOTORS CORP.
  1. Install the stabilizer shaft insulator to the stabilizer shaft with the slit facing rearward.
  2. Install the stabilizer shaft to the vehicle.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the stabilizer shaft brackets and mounting bolts.

    Tighten:  Tighten the bolts to 60 N.m (44 lb ft).

    4. Fig 2: Installing Stabilizer Shaft Links To Stabilizer Shaft
    GM802013Courtesy of GENERAL MOTORS CORP.
  4. Install the stabilizer shaft links to the stabilizer shaft.
  5. Install the stabilizer shaft links to the stabilizer shaft retaining nuts.

    Tighten:  Tighten the nuts to 50 N.m (37 lb ft).

  6. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  7. Lower the vehicle.
