Diagnostic Procedure

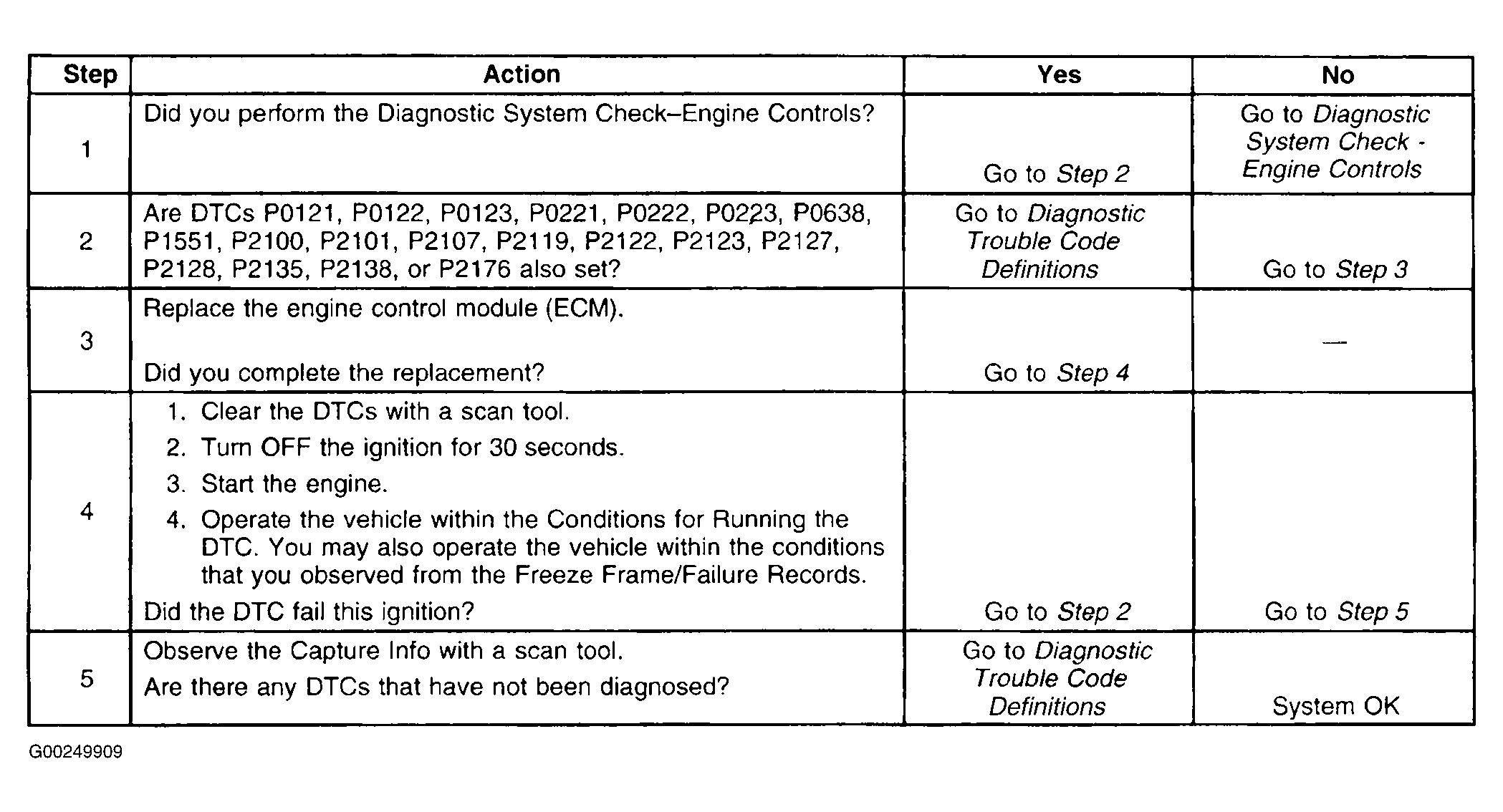

Fig 1: DTC P2105: Throttle Control System - Out Of Controllable Limit
G00249909Courtesy of GENERAL MOTORS CORP.
