Starter Relay: Removal

NOTE: Required Tool: Relay Puller Pliers (J-43244).
  1. Remove the electrical center cover. Locate the relay. See FUSES & CIRCUIT BREAKERS article in ELECTRICAL.
    NOTE: Always note the orientation of the relay. Ensure that the electrical center is secure, as not to put added stress on the wires or terminals.
  2. Using the Relay Puller Pliers, position the tool on opposing corners of the relay. See Fig 1 .
    CAUTION: Use the Relay Puller Pliers to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.
  3. Remove the relay from the electrical center.

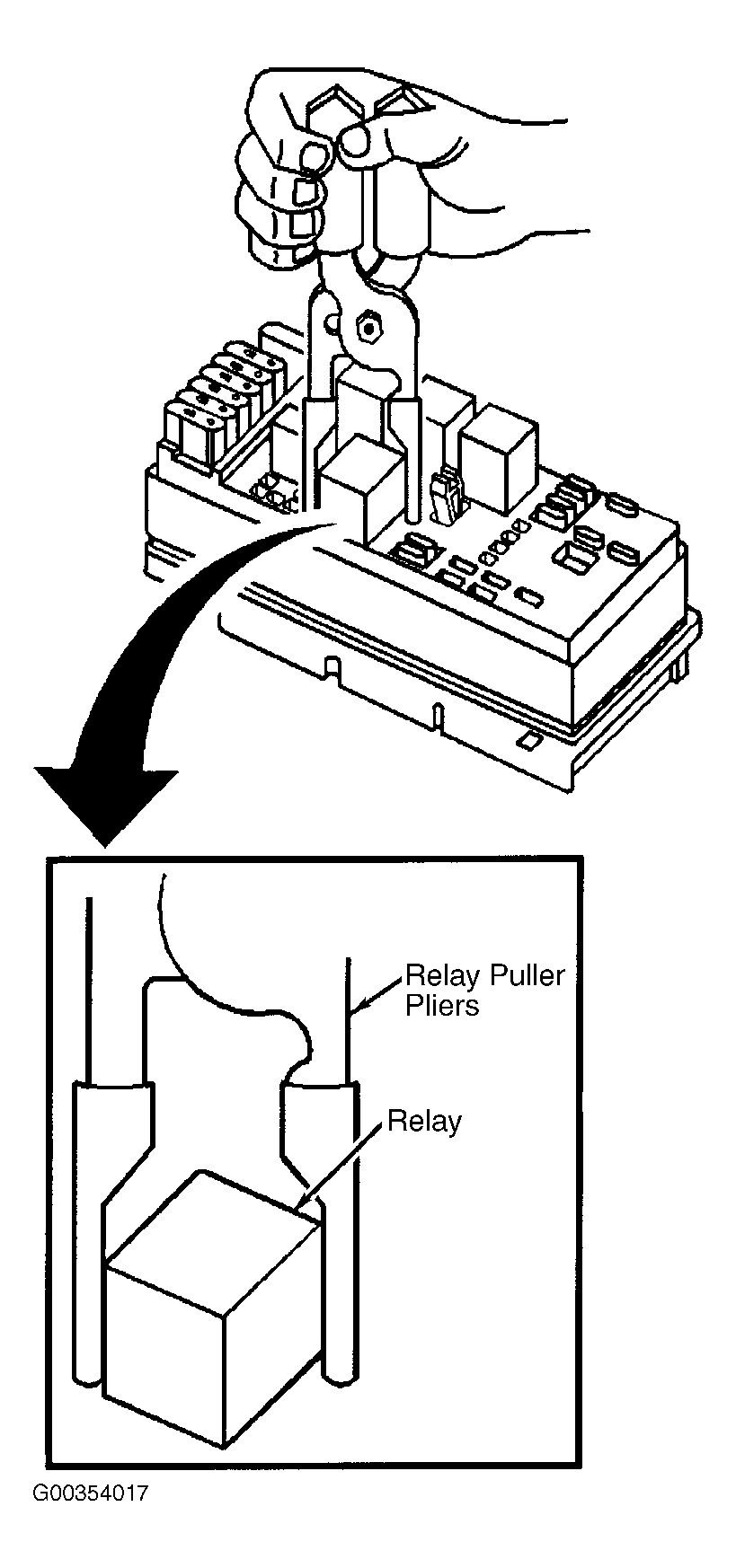

Fig 1: Removing Relay From Electrical Center
G00354017Courtesy of GENERAL MOTORS CORP.
