Removal Procedure
- Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE
in General Information.
- Remove the lower air deflector. Refer to AIR DEFLECTOR REPLACEMENT -- FRONT BUMPER FASCIA
in Bumpers.

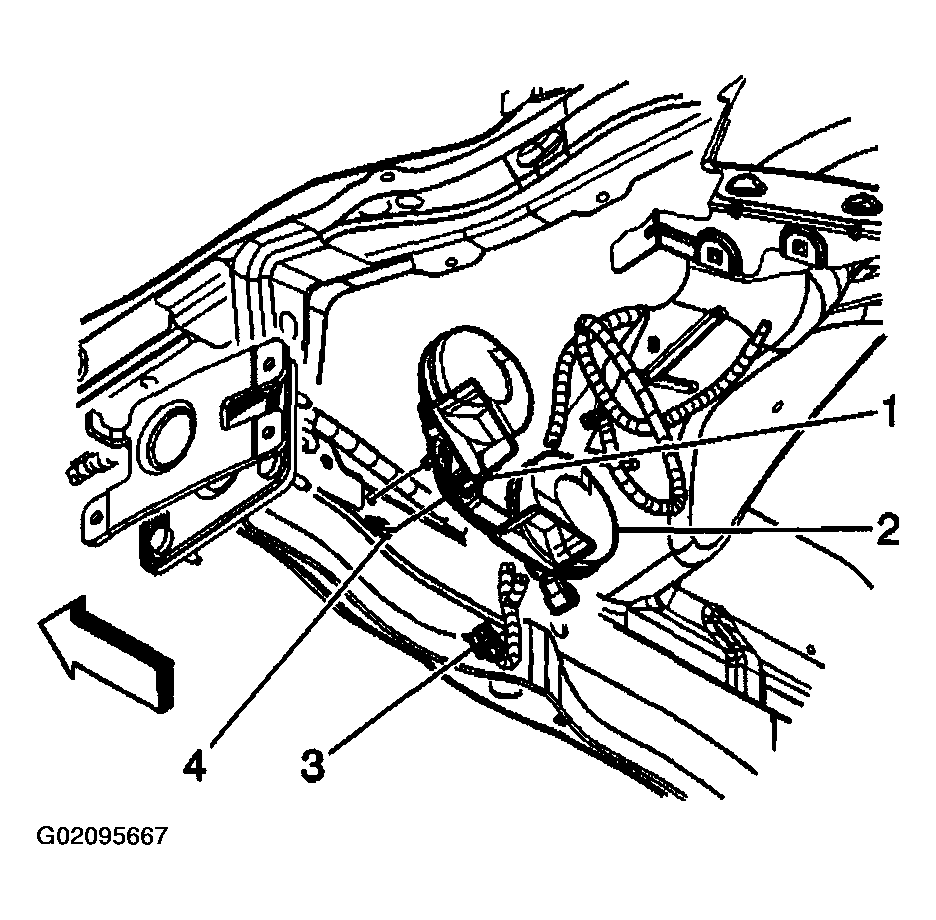

- Loosen the bolt (1) that secures the horn assembly (2) to the body four full turns.
- Grasp the horn assembly (2) on both sides and rock it back and forth in order to pull it forward on the stud.
Courtesy of GENERAL MOTORS CORP.
- Slide the horn assembly (2) rearward in order to locate the stud in the large portion of the keyhole slot (4).
- Disconnect the horn electrical connector (3) from the horn assembly (2).
- Pull the horn assembly (2) outward in order to remove it from the vehicle.
