Home >> Cadillac >> 2003 >> CTS Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Steering Wheel Position Sensor Connector End View

Steering Wheel Position Sensor Connector End View

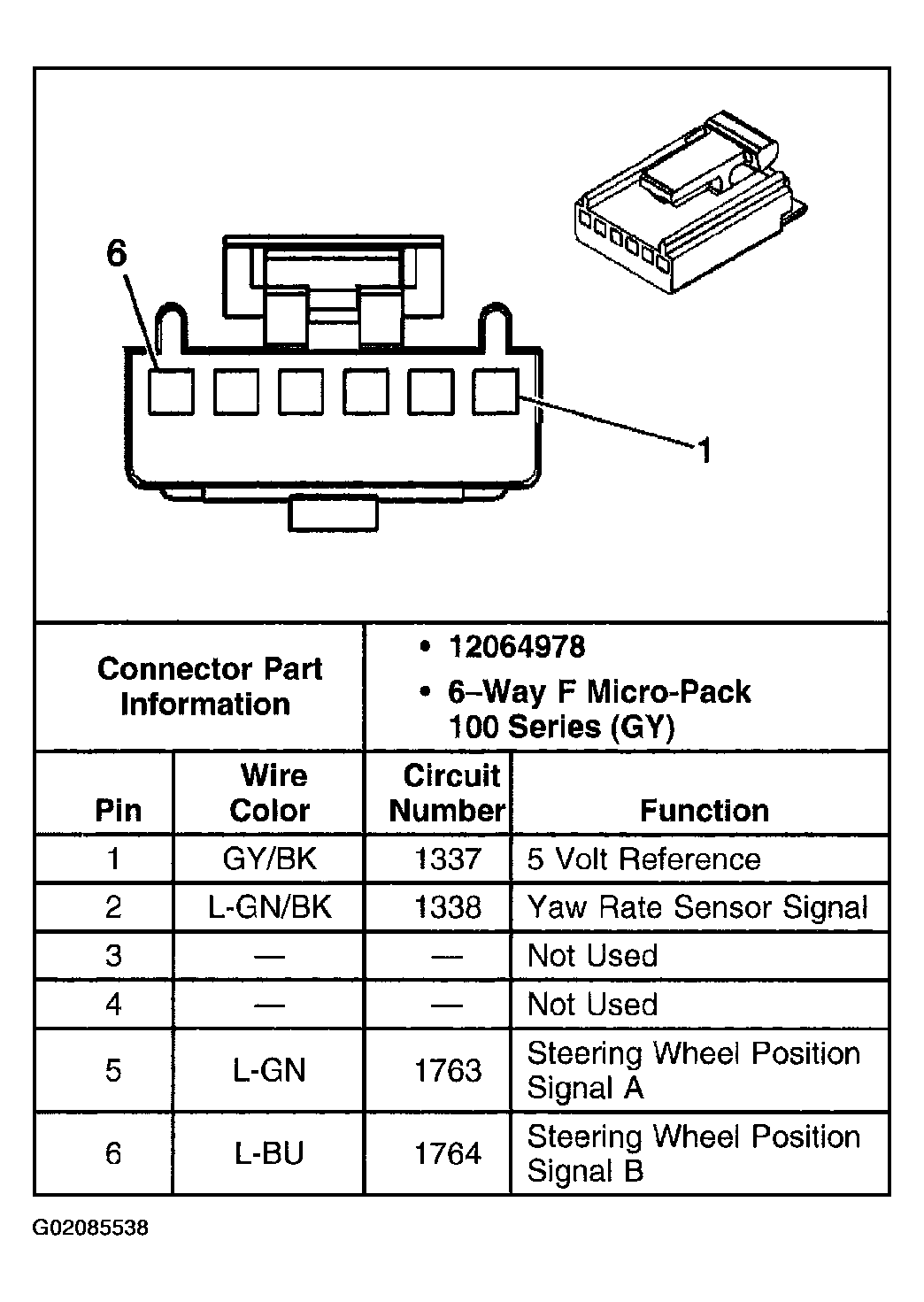

Fig 1: Steering Wheel Position Sensor

G02085538

Courtesy of GENERAL MOTORS CORP.
