Reverse Switch Connector End View

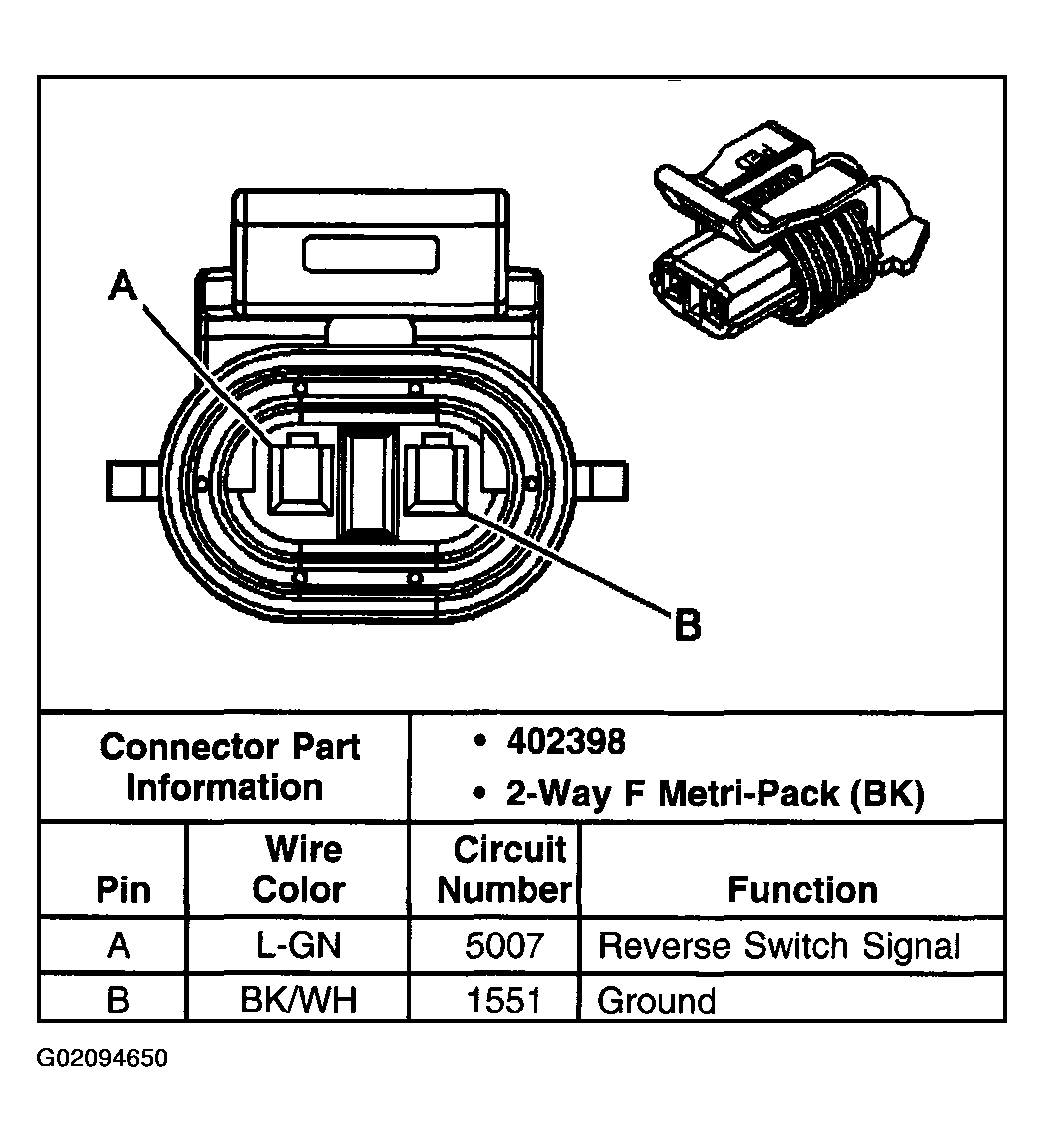

Fig 1: Reverse Switch

G02094650

Courtesy of GENERAL MOTORS CORP.
