A/C Refrigerant Pressure Sensor Connector End View

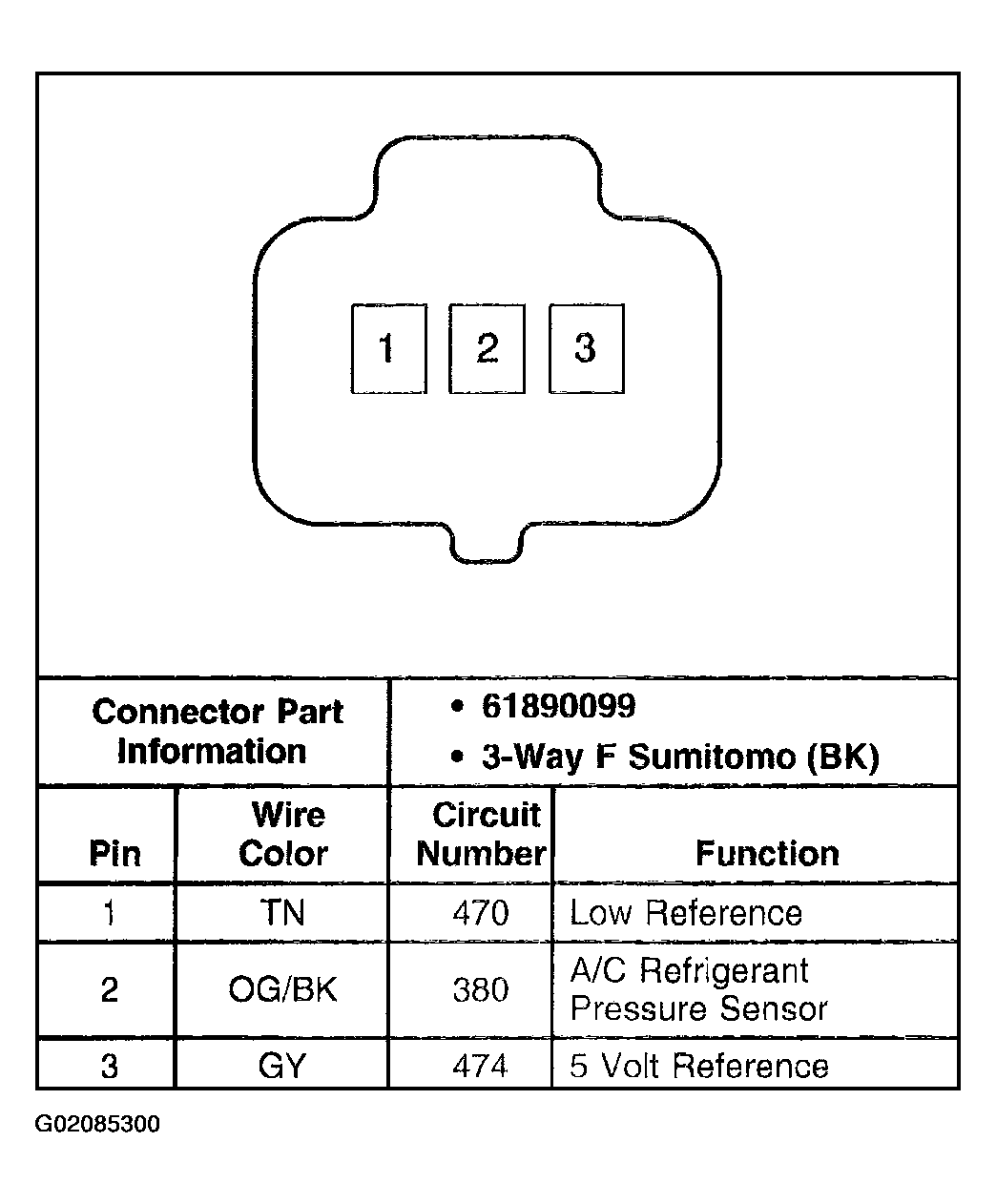

Fig 1: A/C Refrigerant Pressure Sensor

G02085300

Courtesy of GENERAL MOTORS CORP.
