Installation Procedure

  1. If the windshield reveal molding retainer clips are bent or damaged, do not reform. Replace the retainer clips. Refer to WINDSHIELD SIDE REVEAL MOLDING/LACE RETAINER CLIP REPLACEMENT  .
  2. Position the bottom end of the reveal molding under the edge of the air inlet grille.
  3. Align the tab of the reveal molding to the center of the top clip.
  4. Press down on the side reveal molding evenly in order to engage the molding to the windshield retainer clips.
  5. Remove the masking tape.
  6. Clean the tape residue from the windshield.

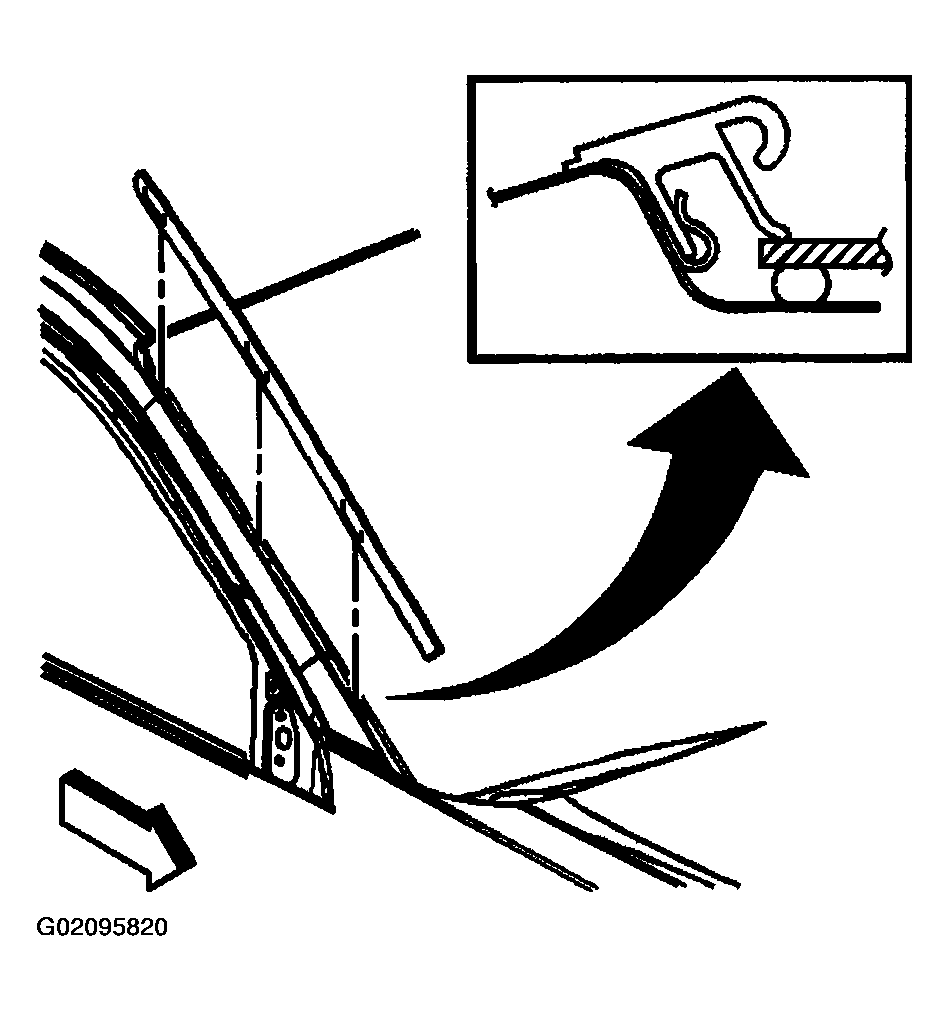

    Fig 1: Installing Windshield Side Reveal Molding To Vehicle
    G02095820Courtesy of GENERAL MOTORS CORP.
