Installation Procedure

  1. Position the sunroof window (3) into the opening.
  2. The window Trade Mark™ points rearward.
  3. Install the sunroof window screws (1).
  4. Finger tighten the screws, do not tighten.

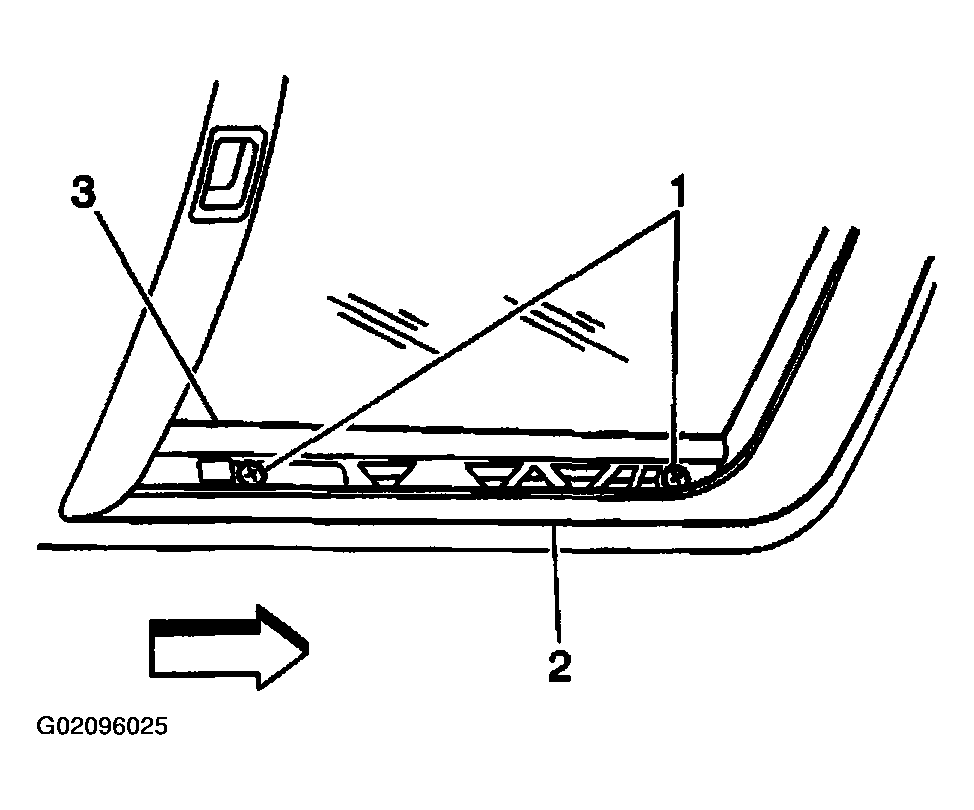

    Fig 1: Installing Sunroof Window Screws
    G02096025Courtesy of GENERAL MOTORS CORP.
  5. Carefully close the sunroof window from the vent position to the full closed position.
  6. Adjust the sunroof window. Refer to SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT  .
  7. Connect the sunroof panel side opening closeout covers (2) to the sunroof window clips.
  8. Snap the sunroof panel side opening closeout covers into the sunroof window retention clips.
  9. Close the sunshade.
  10. Cycle the sunroof window to ensure proper operation and fit.

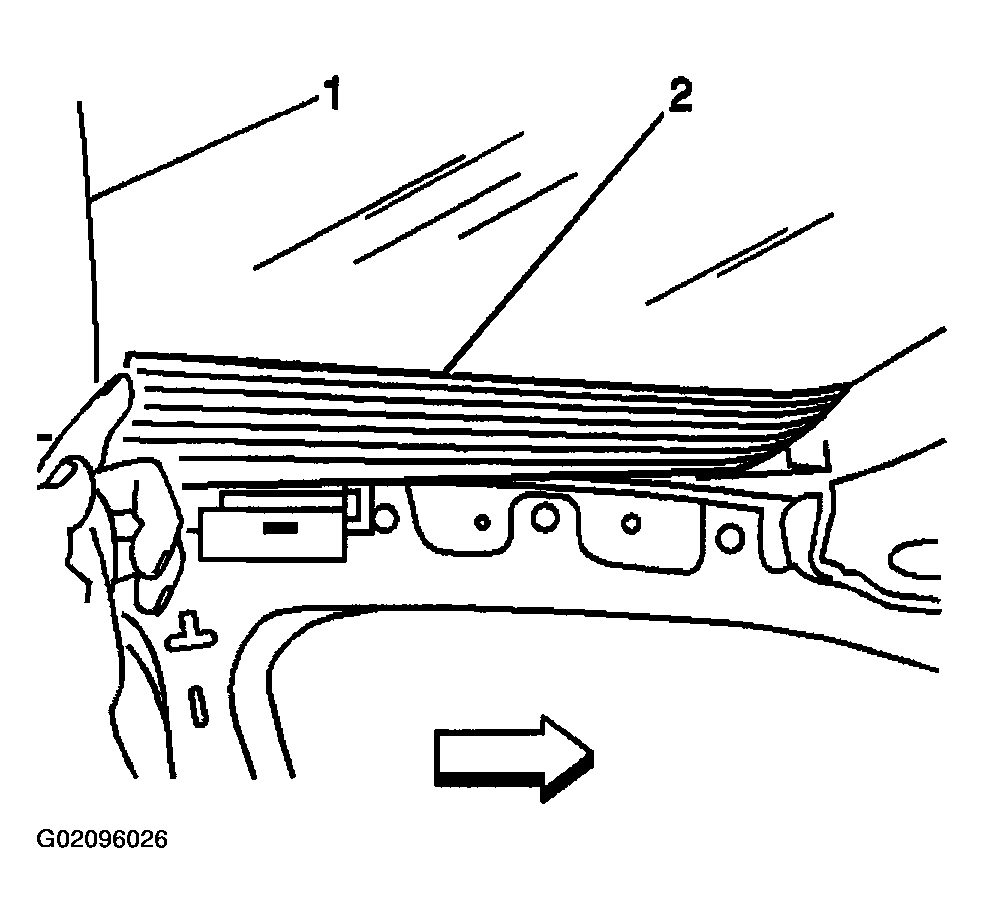

    Fig 2: Connecting Sunroof Panel Side Opening Closeout Covers To Sunroof Window Clips
    G02096026Courtesy of GENERAL MOTORS CORP.
