Installation Procedure

  1. Install the switch to the overhead console.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (1) to secure the switch to the overhead console.

    Tighten

    Tighten the screws (1) to 2 N.m (18 lb in).

  3. Connect the electrical connectors.
  4. Install the overhead console. Refer to CONSOLE REPLACEMENT -- OVERHEAD .

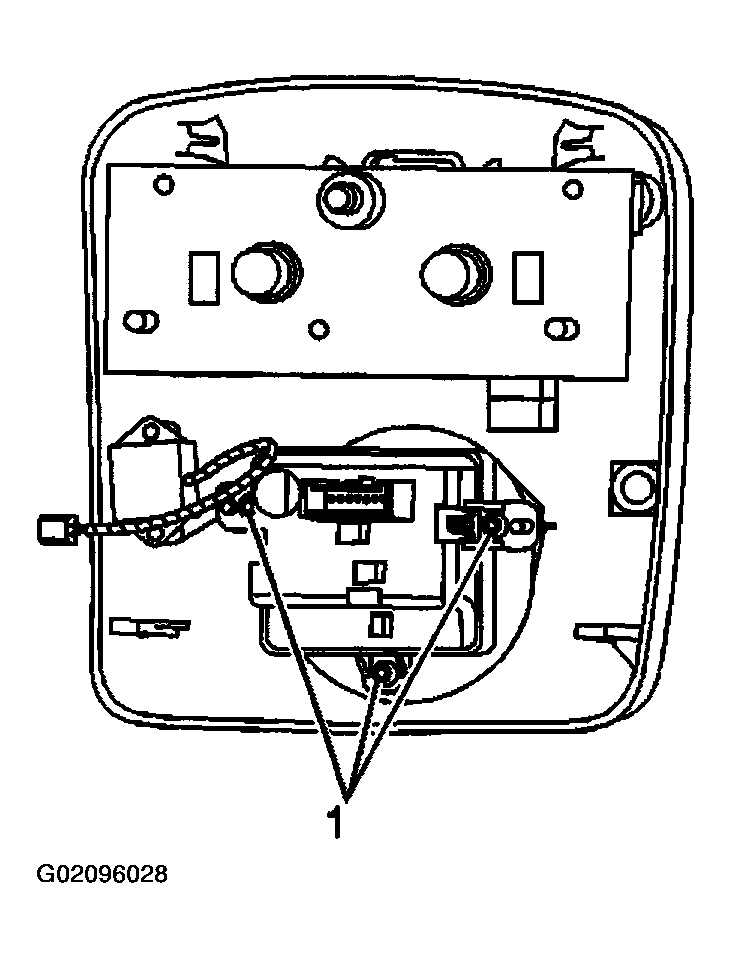

    Fig 1: Installing Screws To Secure Switch To Overhead Console
    G02096028Courtesy of GENERAL MOTORS CORP.
