Power Roof Systems Connector End Views

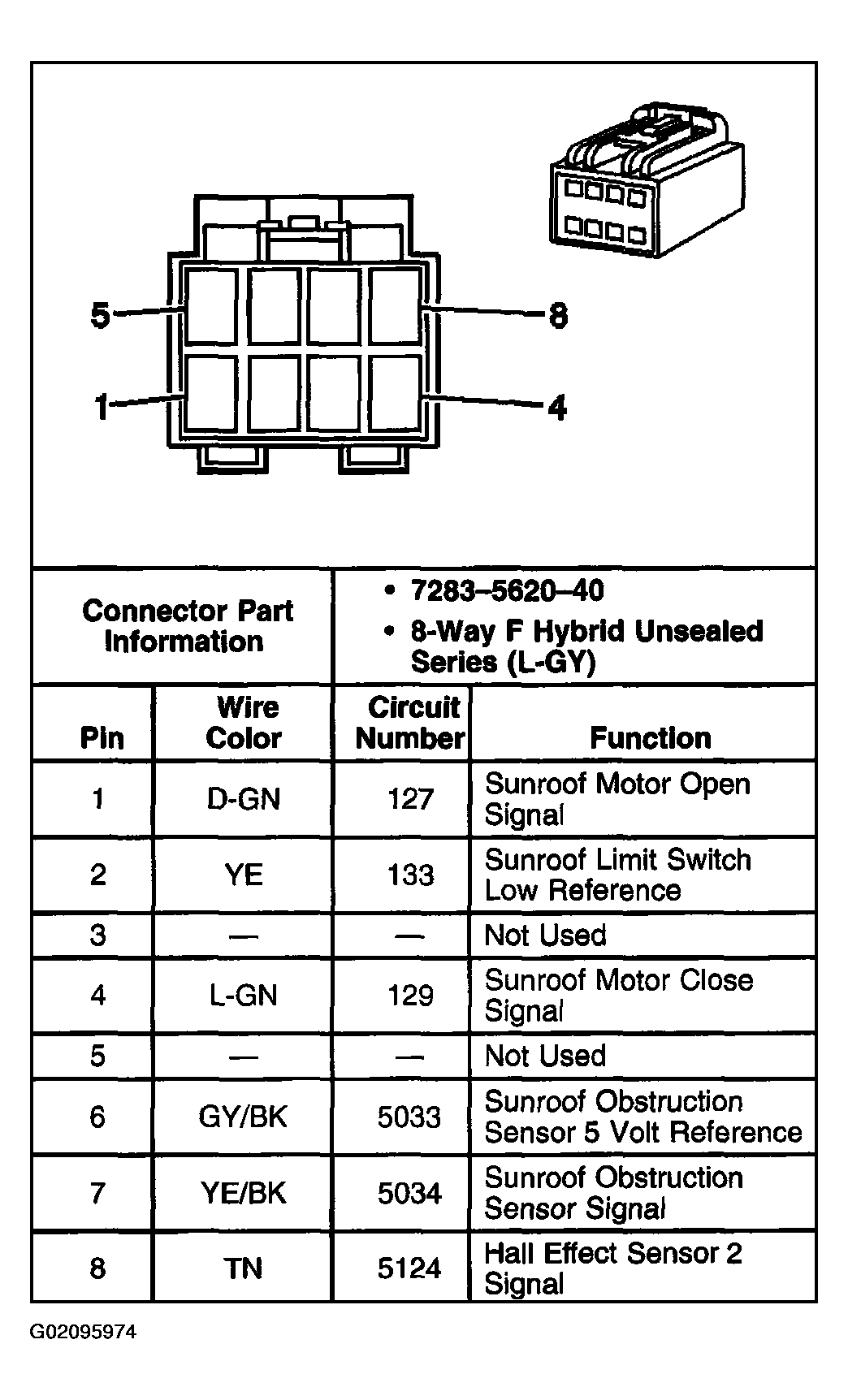

Fig 1: Identifying Sunroof Control Module C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Sunroof Control Module C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Sunroof Control Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Sunroof Limit Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Sunroof Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
