Installation Procedure

  1. Install the sensor (1) in the motor and rotate it clockwise until it locks in to place.
  2. Connect the electrical connector (2) to the sensor.

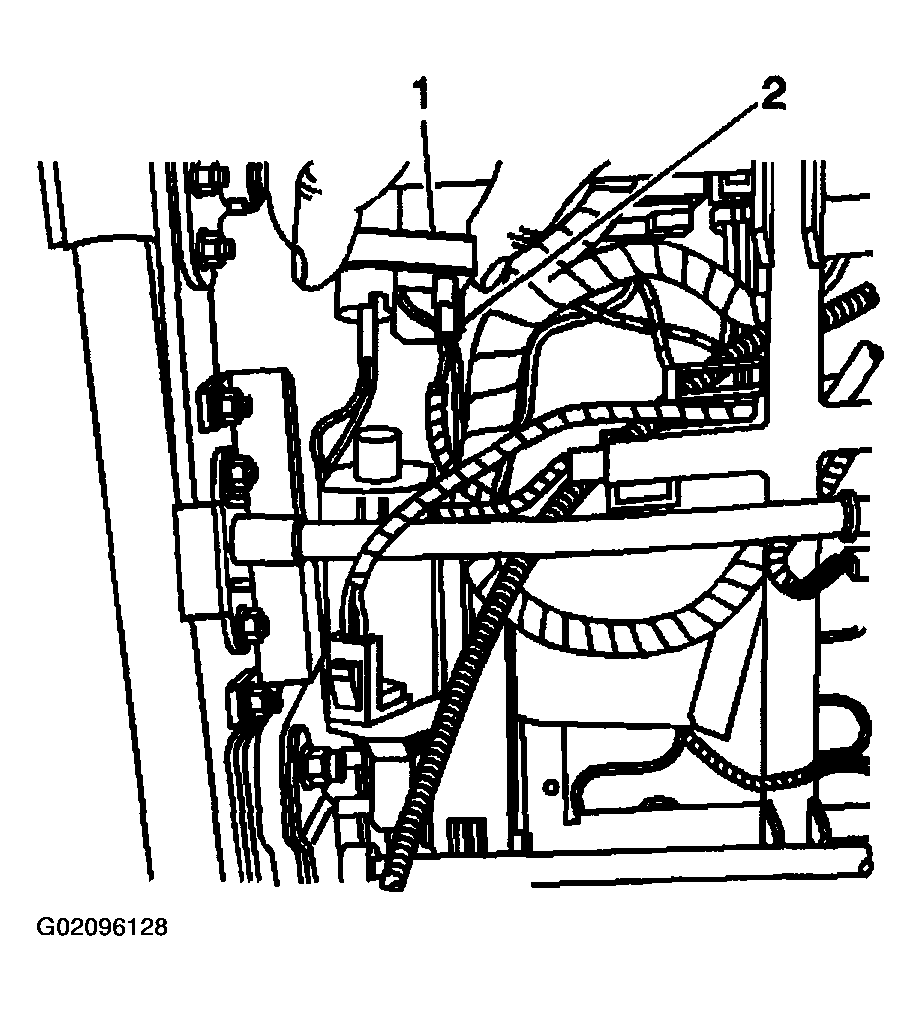

    Fig 1: Connecting Electrical Connector To Sensor
    G02096128Courtesy of GENERAL MOTORS CORP.
