Removal Procedure

  1. Insert a flat - bladed tool under the front edge of the switch to release the retainer from the door trim panel.
  2. Disconnect the electrical connector from the lock switch.
    Fig 1: Disconnecting Electrical Connector From Lock Switch
    G02096145Courtesy of GENERAL MOTORS CORP.
  3. Use a flat - bladed tool to disengage the locking tabs from both sides of the switch.
  4. Remove the lock switch.

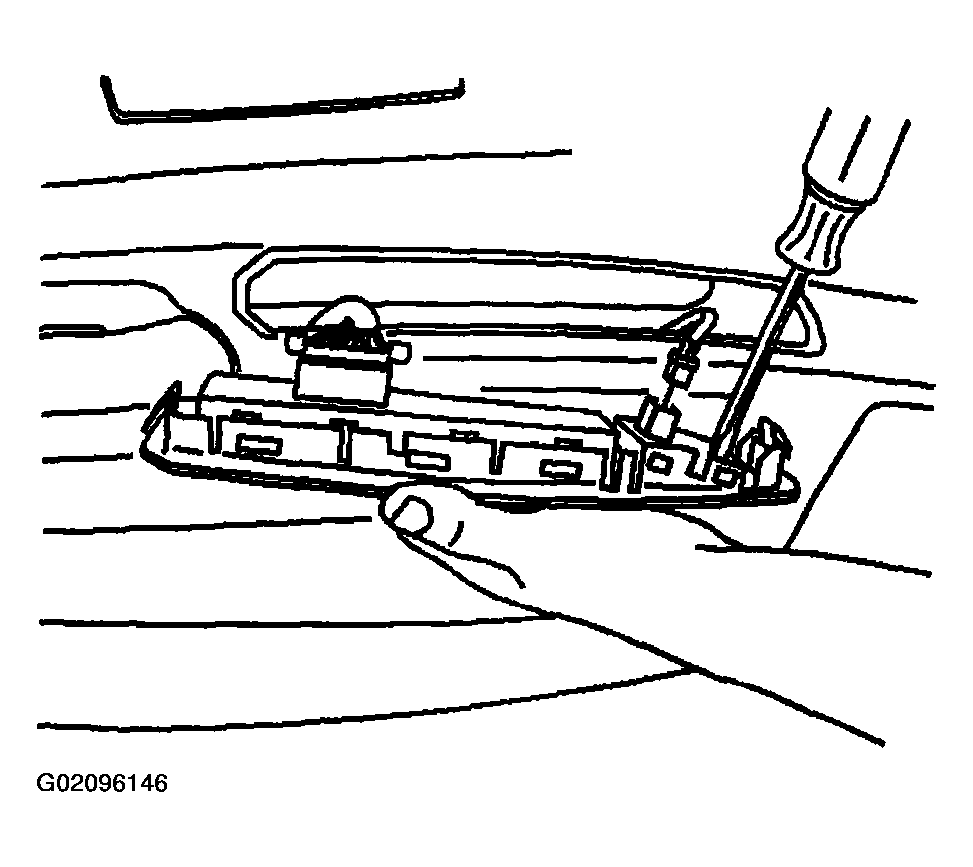

    Fig 2: Using Screw Driver To Disengage Locking Tabs From Both Sides Of Switch
    G02096146Courtesy of GENERAL MOTORS CORP.
