Installation Procedure

Important:  In order to verify the GPS system is operational, the vehicle must be parked outside for a minimum of five minutes.

1. Connect the GPS antenna harness (3) at the electrical carrier.
2. Install the screws securing the GPS antenna (1) to the electrical carrier.
3. Install the rear shelf trim cover. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF in Interior Trim.

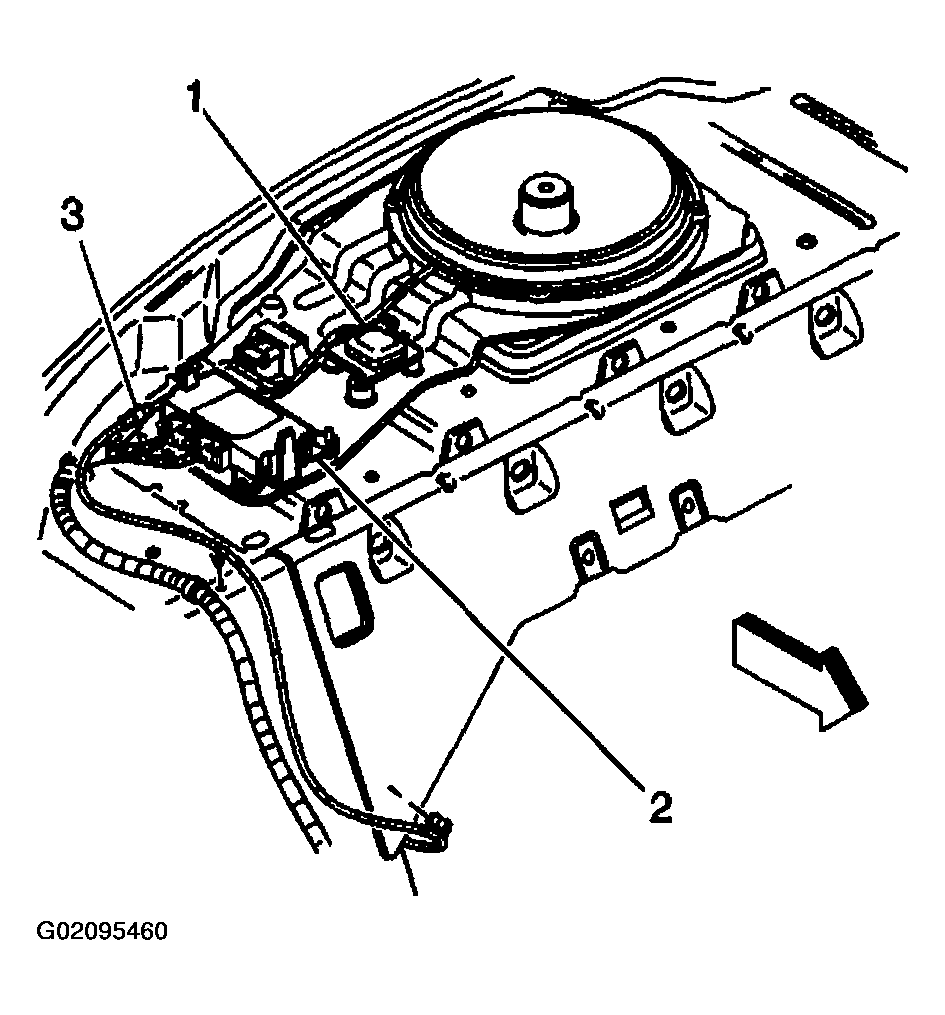

   Fig 1: Installing Screws Securing GPS Antenna To Electrical Carrier

   Courtesy of GENERAL MOTORS CORP.
