Installation Procedure

  1. Connect the 2 electrical connectors to the sunroof control module.

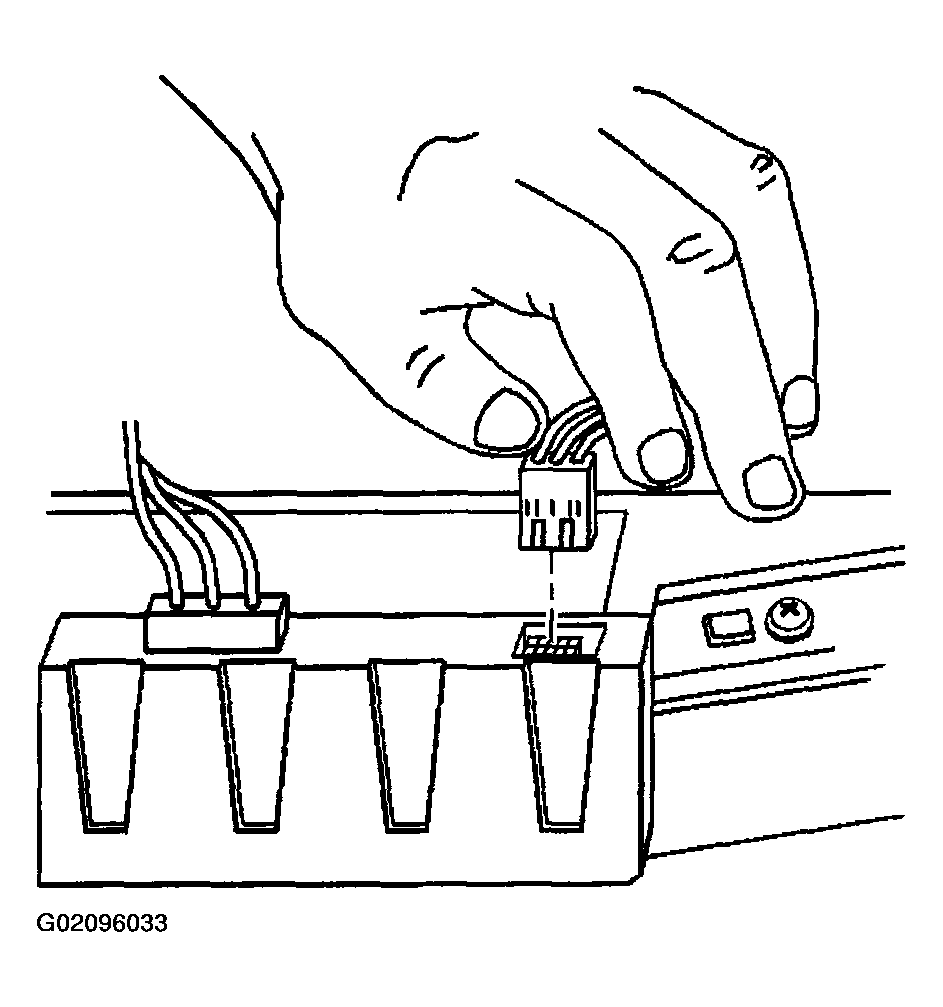

    Fig 1: Connecting 2 Electrical Connectors To Sunroof Control Module
    G02096033Courtesy of GENERAL MOTORS CORP.
  2. Position the sunroof control module tabs (2) into the sunroof module assembly slots (3).
  3. Slide the sunroof control module away from the sunroof actuator until the lock tab is fully engaged.
  4. An audible click should be heard when the control module is secure to the sunroof module assembly.
  5. Secure the electrical harness to the drive cable tube with a new tie strap.

    Important:  Test for proper operation of the sunroof before installing the headliner.

  6. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

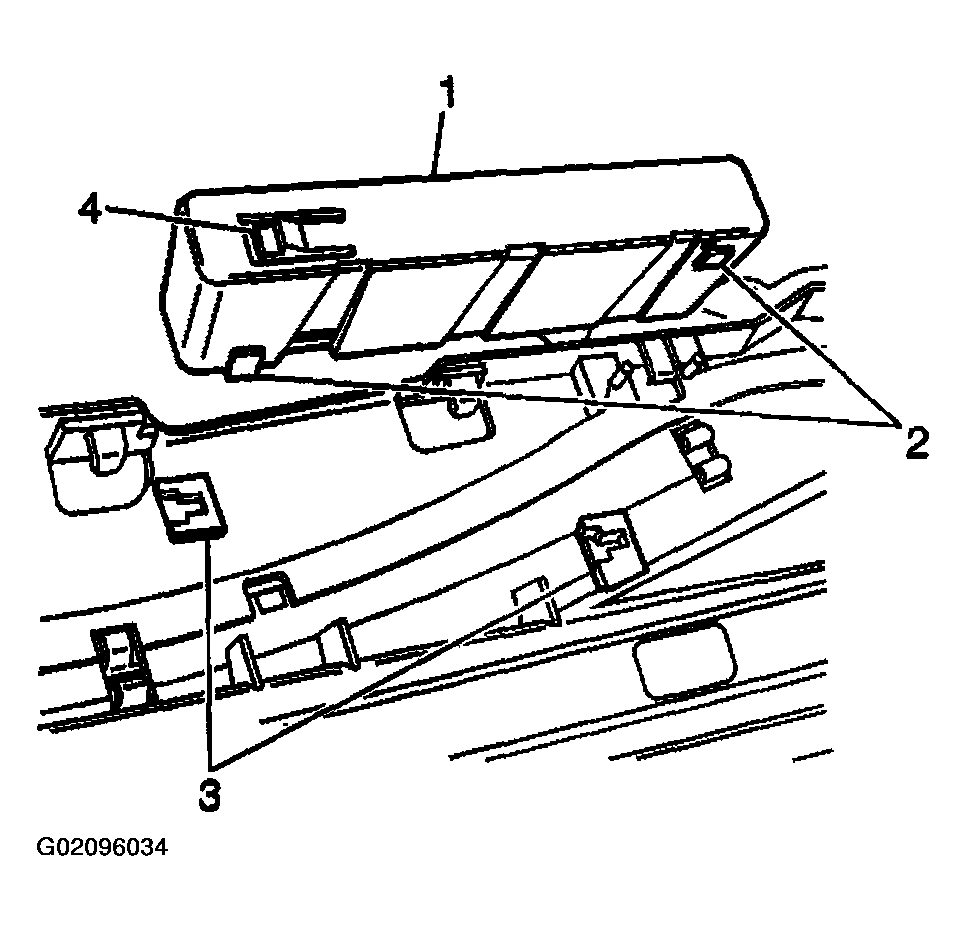

    Fig 2: Positioning Sunroof Control Module Tabs Into Sunroof Module Assembly Slots
    G02096034Courtesy of GENERAL MOTORS CORP.
