Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Door .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Door .
  3. Remove the inner belt sealing strip. Refer to Sealing Strip Replacement - Inner Belt .
  4. Loosen the rear wedge in order to allow the wedge to drop.
  5. Remove the window guide blocks.
  6. Position the window (1) in order to access the 3 window sash to regulator bolts.
  7. Using the aid of an assistant, perform the following steps:
    1. 7.1. Hold the window (1).
    2. 7.2. Remove the 3 window sash to regulator bolts.
  8. Remove the window from the door.
  9. Remove both of the window run channels from the door. Refer to Window Channel Replacement - Door .

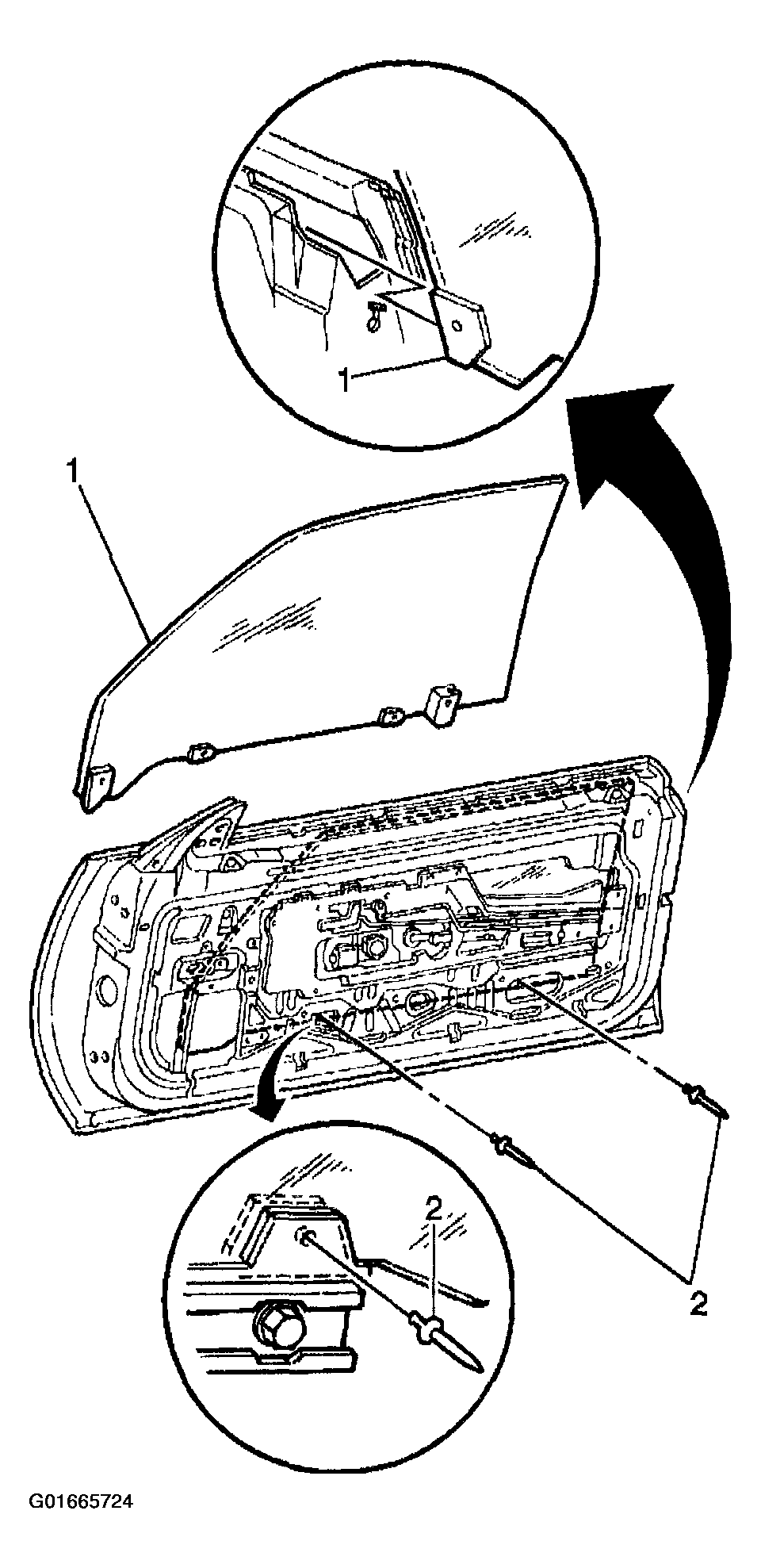

    Fig 1: Window & Components
    G01665724Courtesy of GENERAL MOTORS CORP.
