Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Carefully disengage the trim plate from the trim panel.
  3. Disconnect the electrical connector from the lock switch.
  4. Disengage the retainers on the backside of the switch.
  5. Remove the door lock switch from the trim plate.

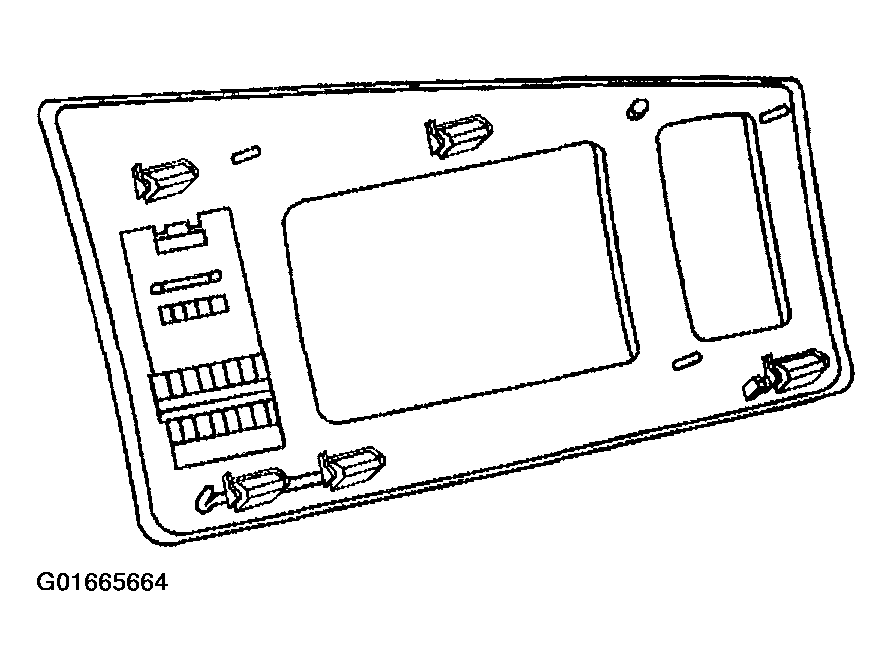

    Fig 1: Power Door Lock Trim Plate
    G01665664Courtesy of GENERAL MOTORS CORP.
