Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fastener that retains the center receptacle (2). (if removed)
  2. Connect the electrical connector (3).
  3. Push the electrical connector and the wiring above the headliner.
  4. Position the sunshade outer bezel in place.
  5. Align the fastener holes.
    NOTE: Refer to FASTENER NOTICE .

    Important:  Do not pinch the wiring when you install the fasteners.

  6. Install the fasteners (2) that attach the bezel.

    Tighten

    Tighten the fasteners to 1.5 N.m (13 lb in).

  7. Reposition the sunshade.

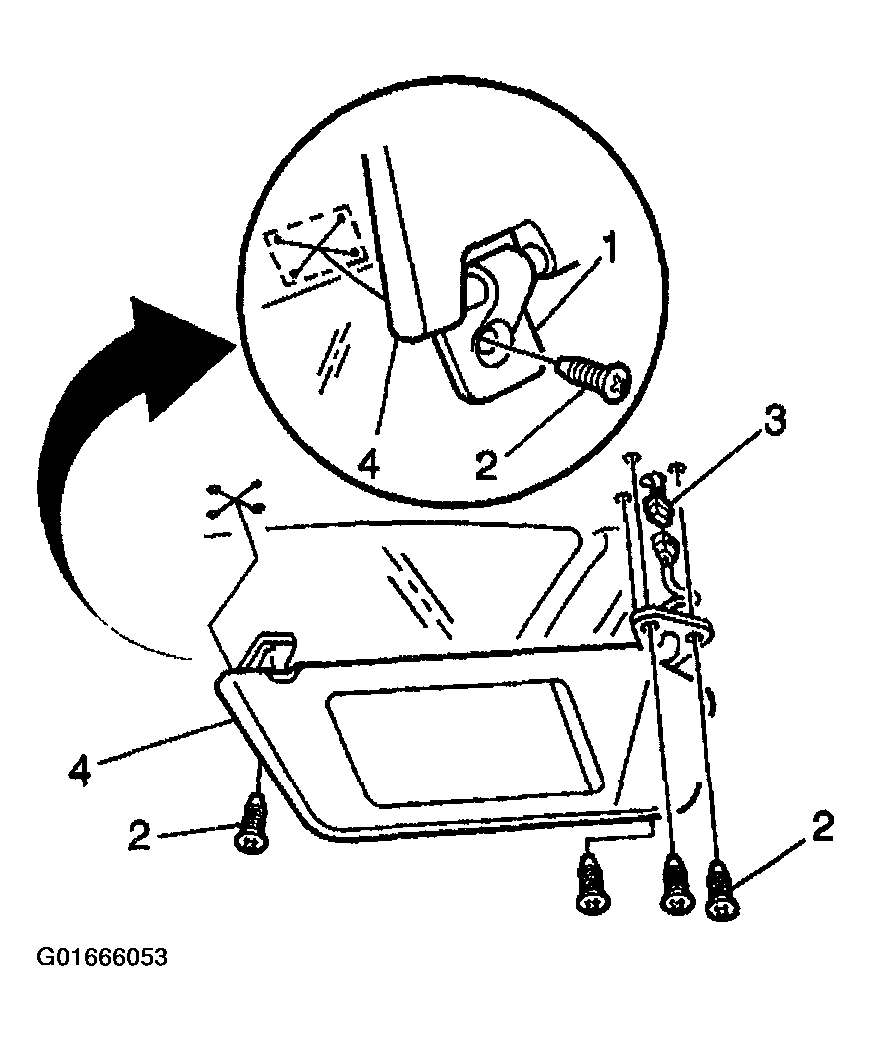

    Fig 1: Identifying Sunshade Outer Bezel, Fasteners & Receptacle
    G01666053Courtesy of GENERAL MOTORS CORP.
