Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front air deflector to the lower front fascia.
  2. Install the push-pin retainers in order to retain the front air deflector to the lower front fascia.
  3. Install the push-in retainers securing the air deflector to the front fender extensions.
  4. Secure the outer edges of the air deflector to the energy absorber units with new tie straps.
  5. Lower the vehicle.

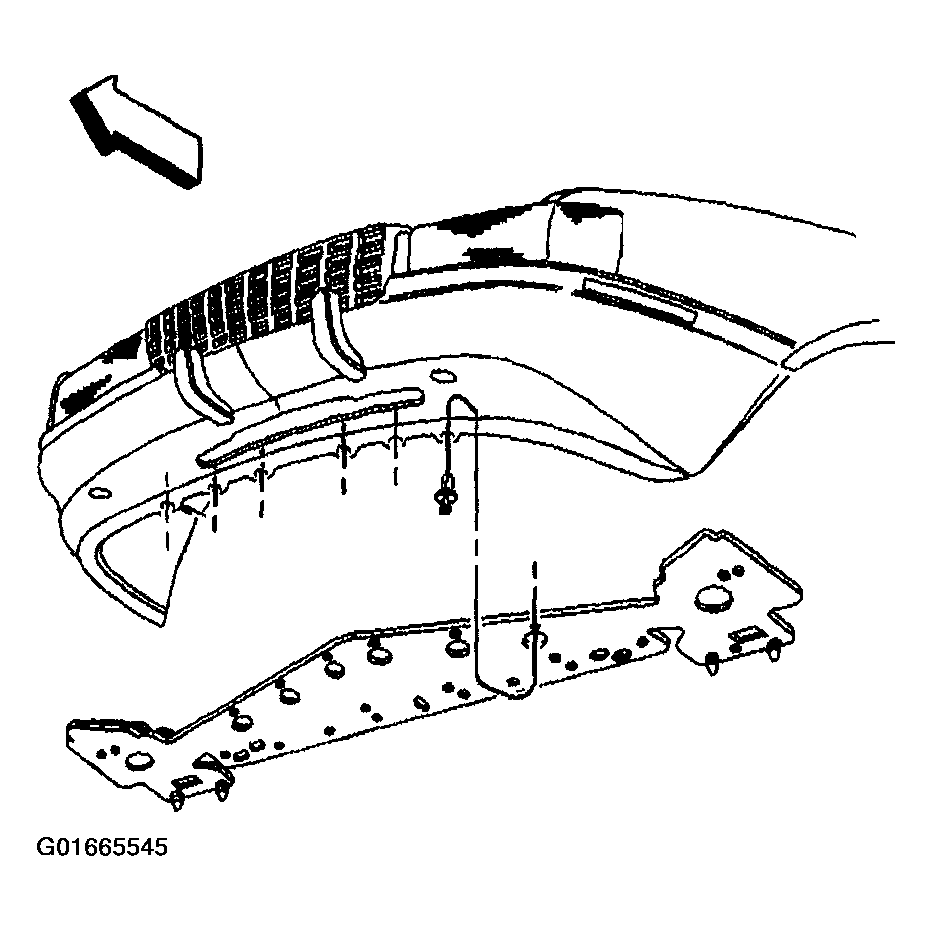

    Fig 1: Identifying Front Air Deflector & Fastening Components
    G01665545Courtesy of GENERAL MOTORS CORP.
