Scan Tool Output Controls

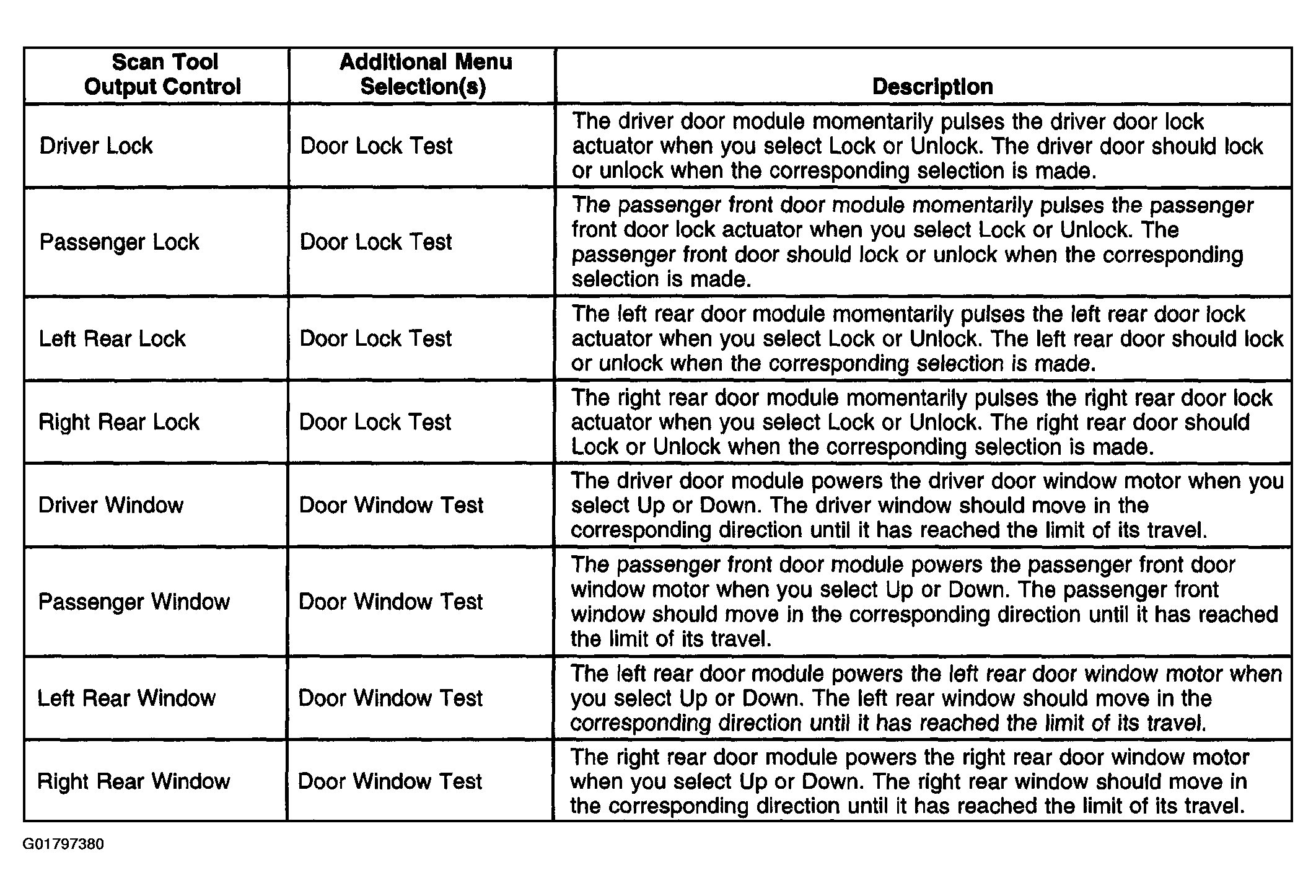

Fig 1: Identifying Scan Tool Output Controls (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

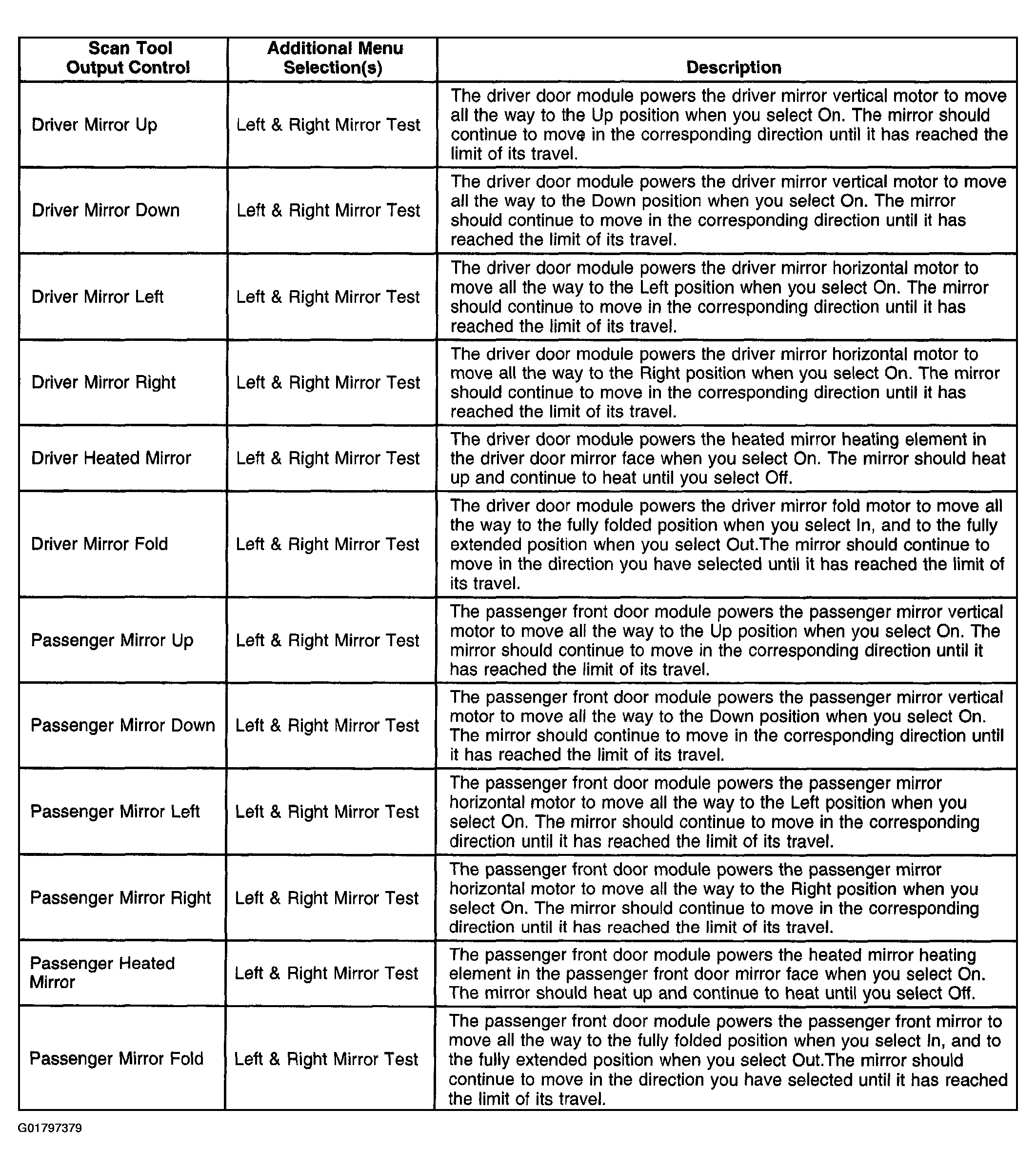

Fig 2: Identifying Scan Tool Output Controls (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
