Assembly Procedure

  1. After replacing the damaged pump assembly (1) with the new pump assembly (1), assemble the pump reservoir.
  2. Refer to Power Steering Reservoir Replacement - Off Vehicle .

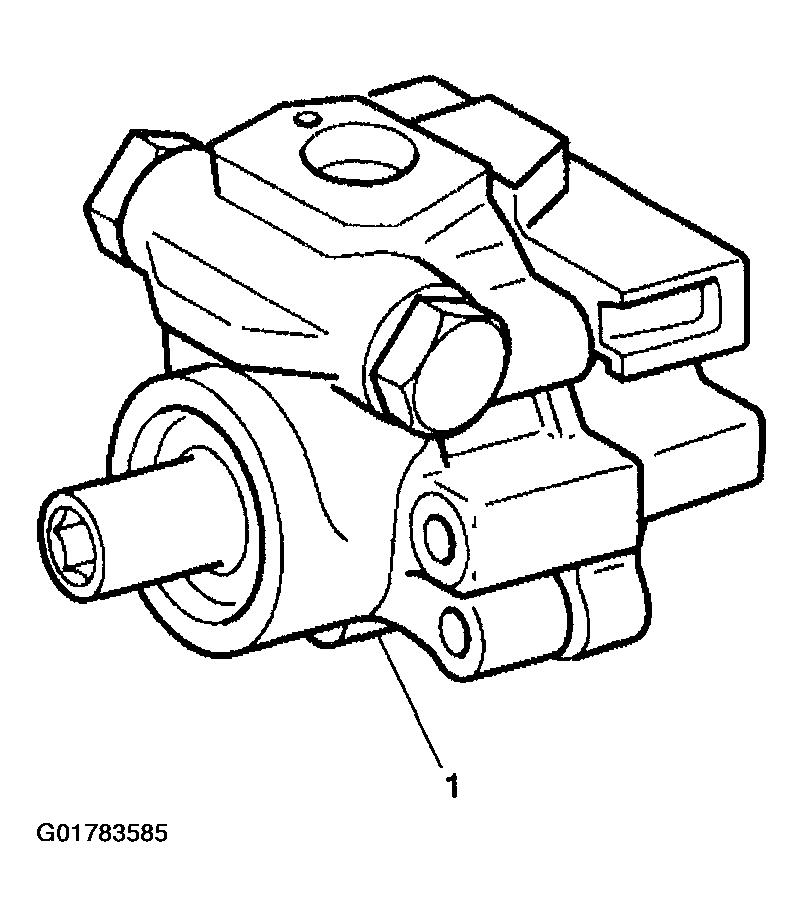

    Fig 1: Replacing Pump Assembly
    G01783585Courtesy of GENERAL MOTORS CORP.
