Power Steering Gear Disassembled View (Magnasteer)

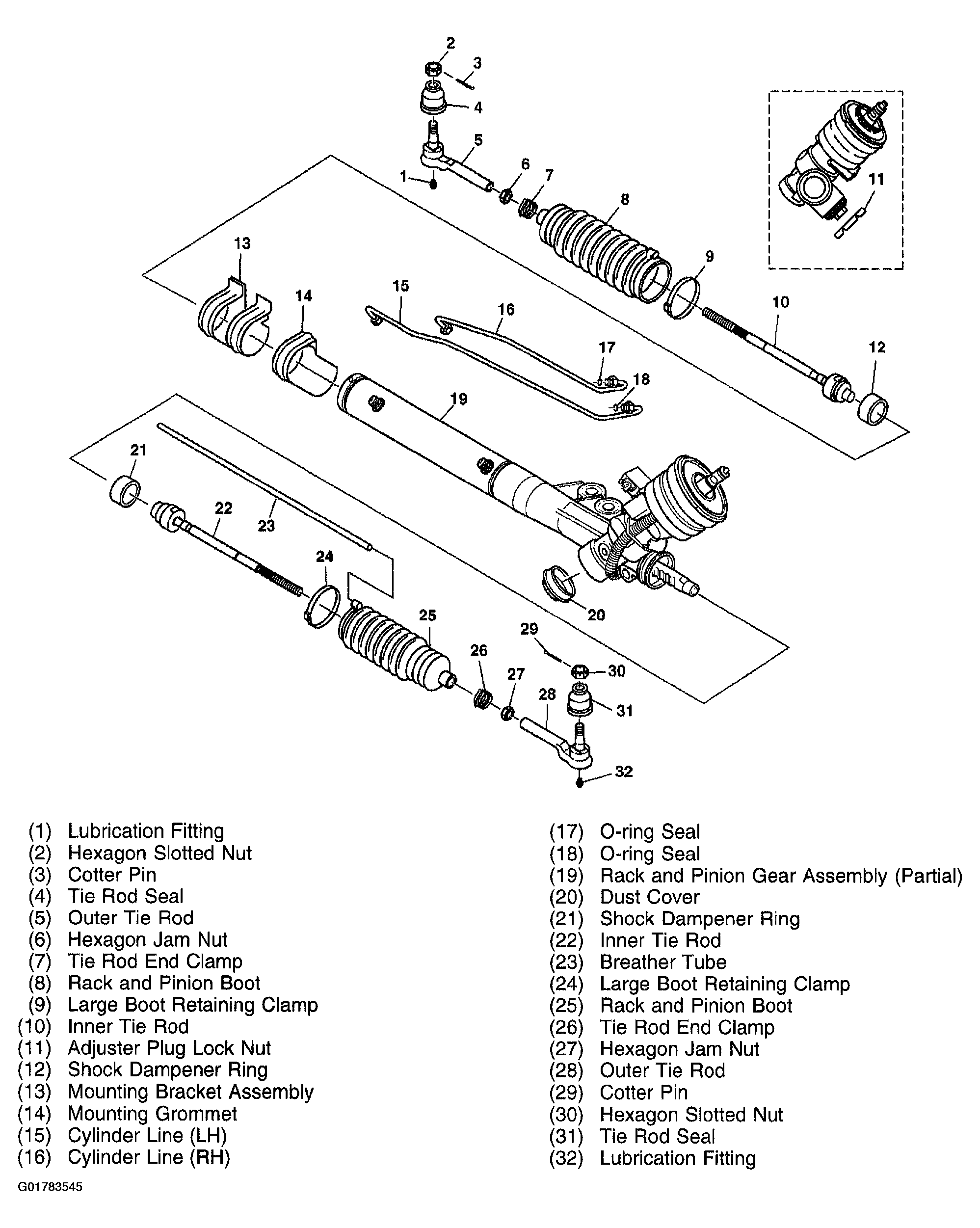

Fig 1: Identifying Magnasteer Power Steering Gear

G01783545

Courtesy of GENERAL MOTORS CORP.
