Lifting and Jacking the Vehicle: Notes

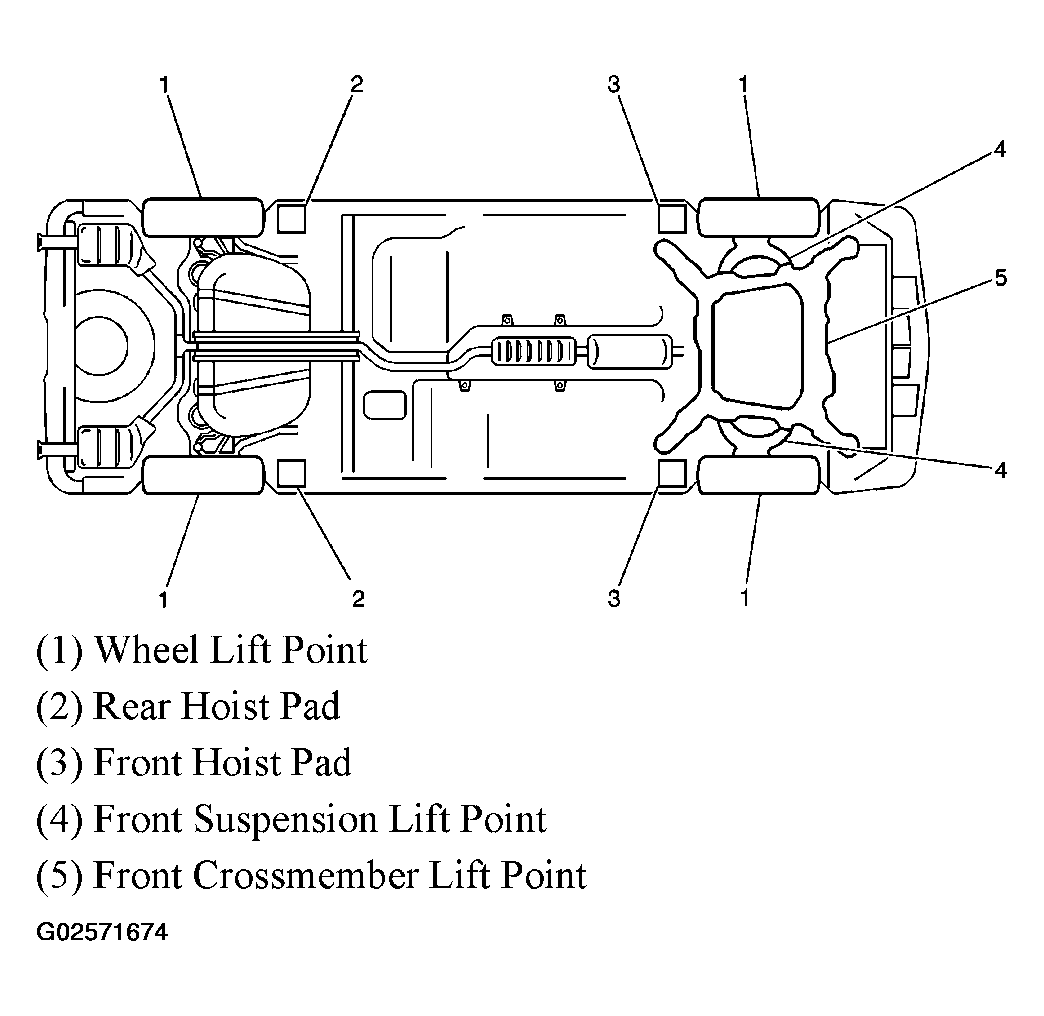

Fig 1: Locating Vehicle Lift Points
G02571674Courtesy of GENERAL MOTORS CORP.
CAUTION: To help avoid personal injury, always use jack stands when you are working on or under any vehicle that is supported only by a jack.
CAUTION: To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed.
NOTE: When you are jacking or lifting a vehicle at the frame side rails or other prescribed lift points, be certain that the lift pads do not contact the catalytic converter, the brake pipes or the fuel lines. If such contact occurs, vehicle damage or unsatisfactory vehicle performance may result.
