Installation Procedure

  1. Apply a soapy solution to the tail pipe hanger rod and the inner diameter of the rear exhaust hanger in order to ease the installation of the hanger.
  2. Press the rear exhaust hanger over the tail pipe hanger rod.

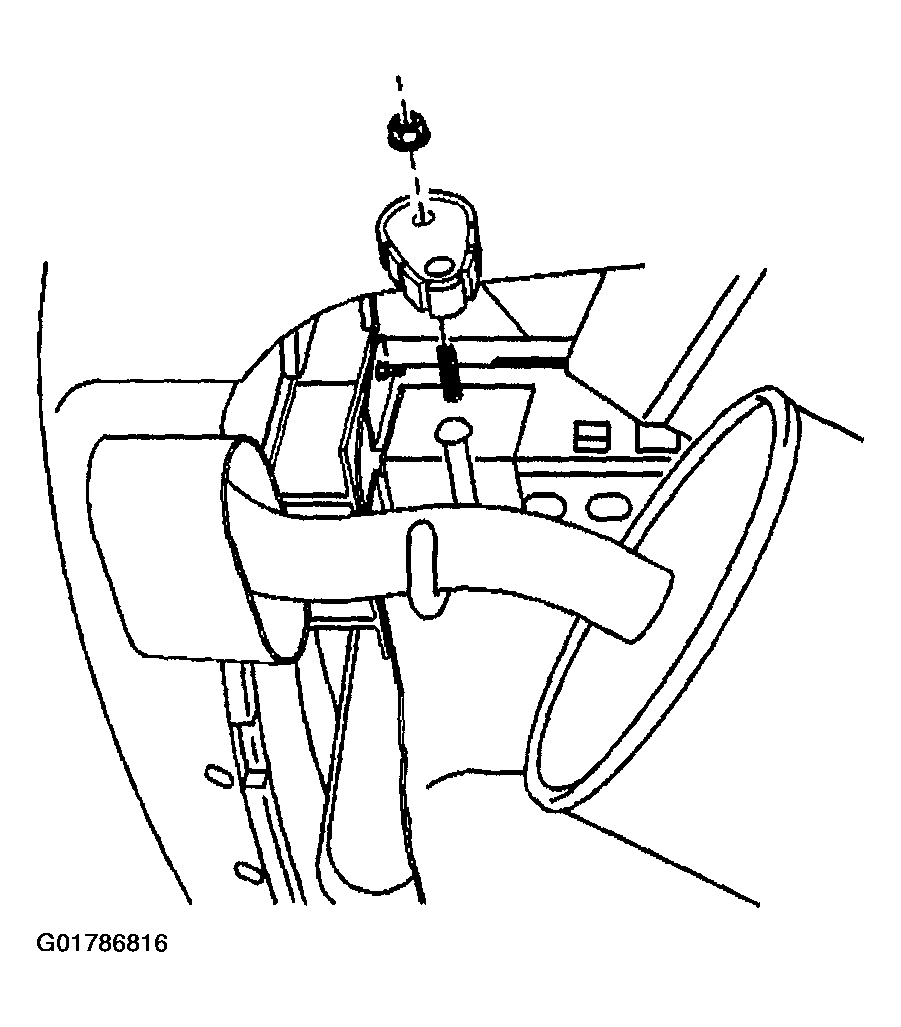

    Fig 1: Rear Exhaust Hanger & Tail Pipe Hanger Rod
    G01786816Courtesy of GENERAL MOTORS CORP.
  3. Position the rear exhaust hanger to the rear exhaust hanger bracket.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the nut securing the rear exhaust hanger to the rear exhaust hanger bracket.

    Tighten

    Tighten the rear exhaust hanger nut to 30 N.m (22 lb ft).

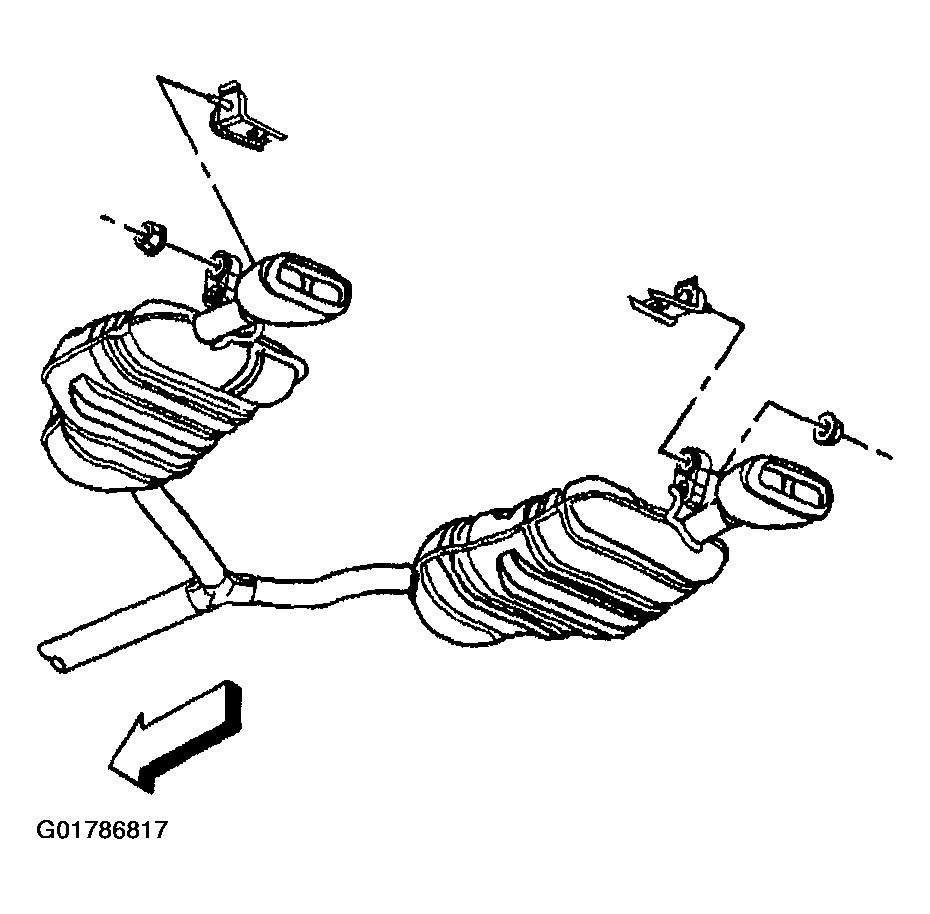

    Fig 2: Rear Exhaust Hanger Bracket & Nuts
    G01786817Courtesy of GENERAL MOTORS CORP.
  5. Apply a soapy solution to the exhaust pipe hanger rod and the inner diameter of the center exhaust hanger in order to ease the installation of the hanger.
  6. Press the center exhaust hanger over the exhaust pipe hanger rod.

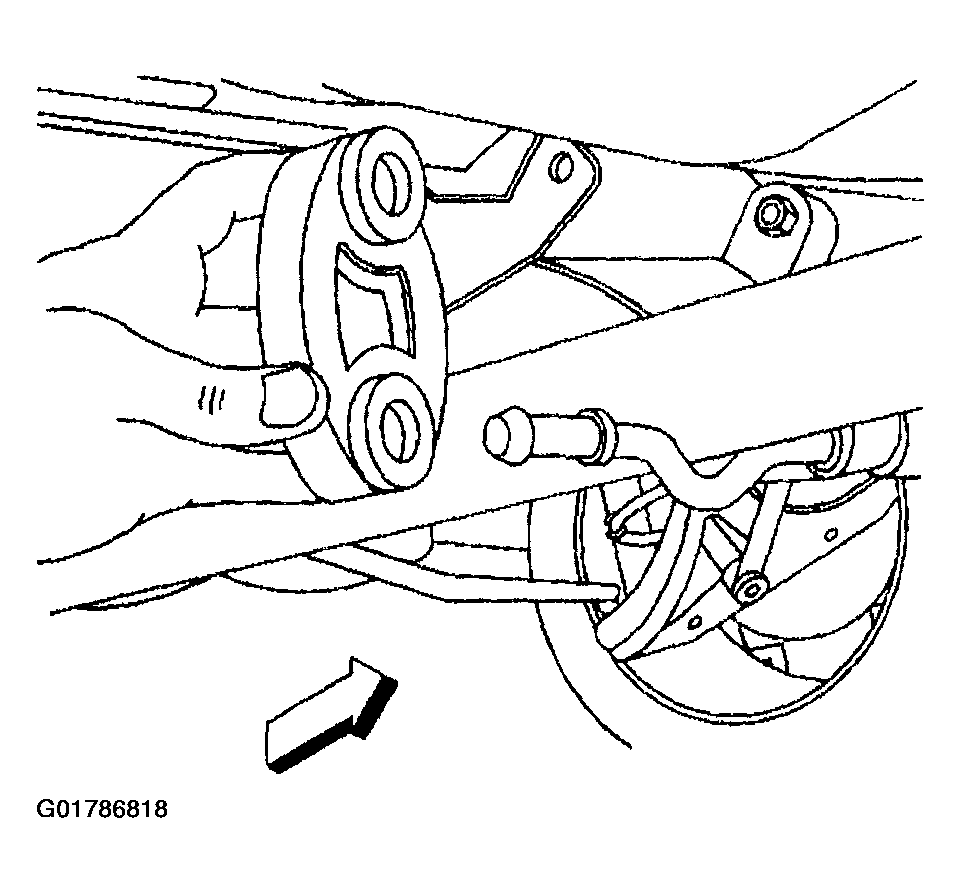

    Fig 3: Center Exhaust Hanger & Exhaust Pipe Hanger Rod
    G01786818Courtesy of GENERAL MOTORS CORP.
  7. Install the bolt securing the center exhaust hanger to the rear suspension support bracket.

    Tighten

    Tighten the center exhaust hanger bolt to 30 N.m (22 lb ft).

  8. Lower the vehicle.
    Fig 4: Center Exhaust Hanger & Bolt
    G01786819Courtesy of GENERAL MOTORS CORP.
