Installation Procedure

NOTE: Refer to Fastener Notice on page P-9 in Cautions and Nations.
  1. Install the replacement horn to the original bracket or the replacement bracket supplied with the kit.

    Verify the orientation of the horn trumpet to the mounting bracket is correct

    Tighten

    Tighten the horn to the mounting bracket fastener to 10 N.m (90 lb in).

  2. Install the horns (1) to the frame rail.
  3. Install the fasteners to secure the horns (1) to the body.

    Tighten

    Tighten the fasteners to 15 N.m (11 lb ft).

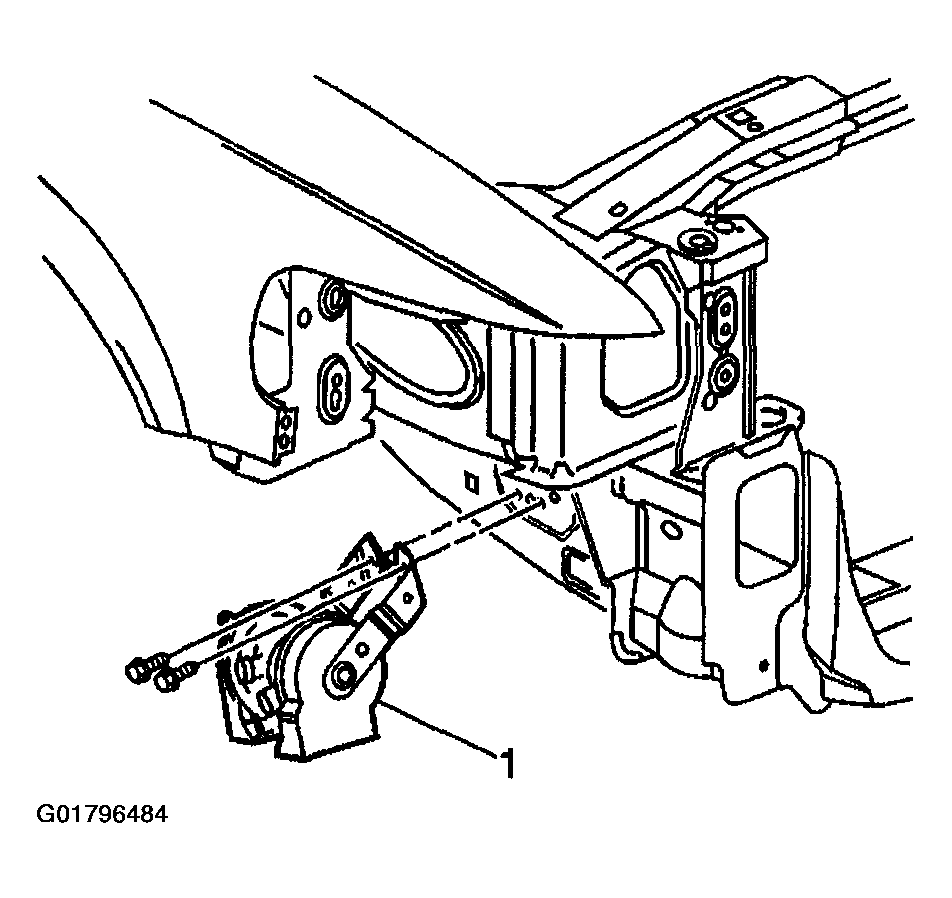

    Fig 1: Installing Fasteners & Horns
    G01796484Courtesy of GENERAL MOTORS CORP.
  4. Connect the horn electrical connectors (1) to the horns (2).
  5. Install the front air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT .
  6. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

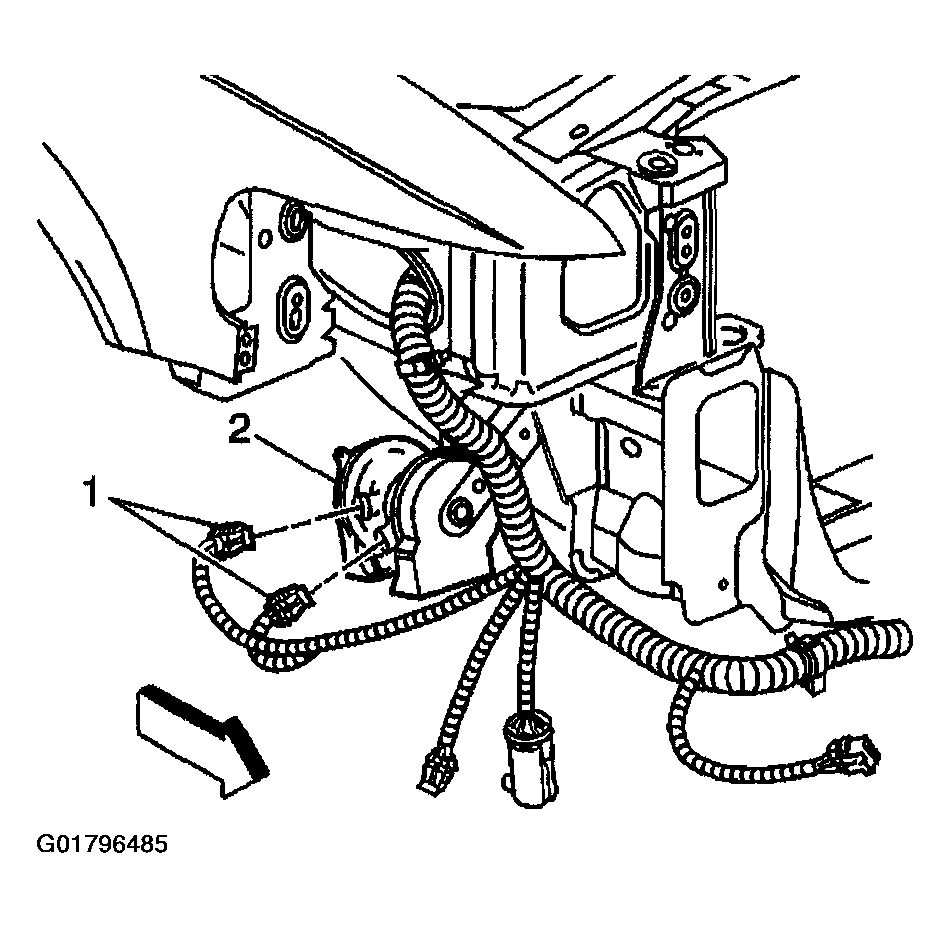

    Fig 2: Installing Electrical Connectors & Horns
    G01796485Courtesy of GENERAL MOTORS CORP.
