Removal Procedure

Important:

• Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
• Always route the replacement cable the same way as the original cable.

1. Remove the upper filler panel. Refer to FILLER PANEL REPLACEMENT - UPPER .
2. Remove the bolt (1) securing the engine ground cable (2) to the right side body frame rail.

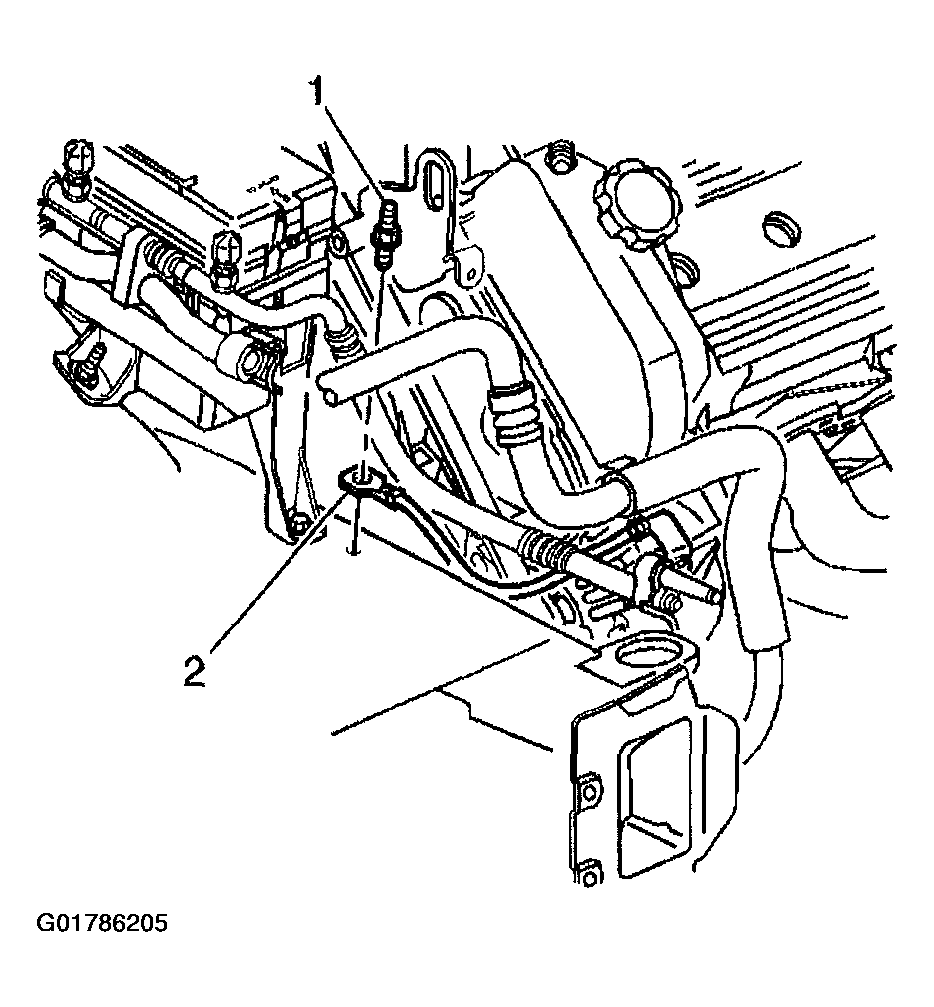

   Fig 1: Removing Engine Ground Cable

   Courtesy of GENERAL MOTORS CORP.
3. Remove the bolt securing the engine ground cable to the generator.
4. Remove the engine ground cable from the vehicle.
