Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the battery positive cable (1) from the battery.

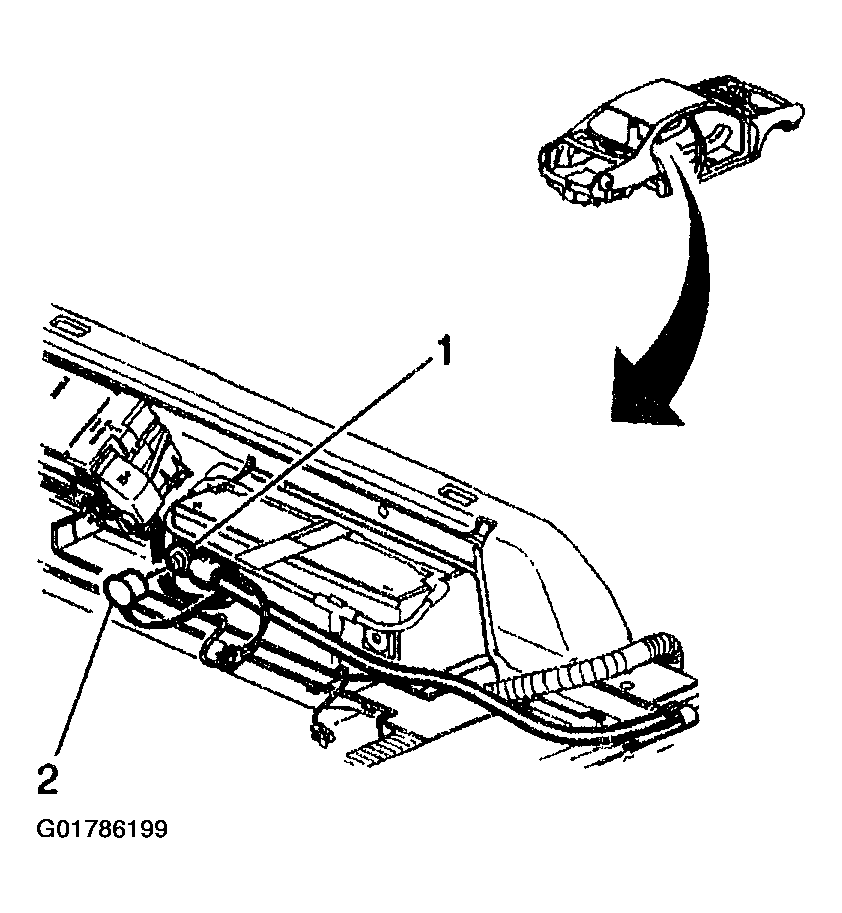

    Fig 1: Disconnecting Battery Positive Cable From Battery
    G01786199Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery vent tube (1) from the battery.
    Fig 2: Removing Battery Vent Tube From Battery
    G01786200Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery retainer bolt and battery retainer.

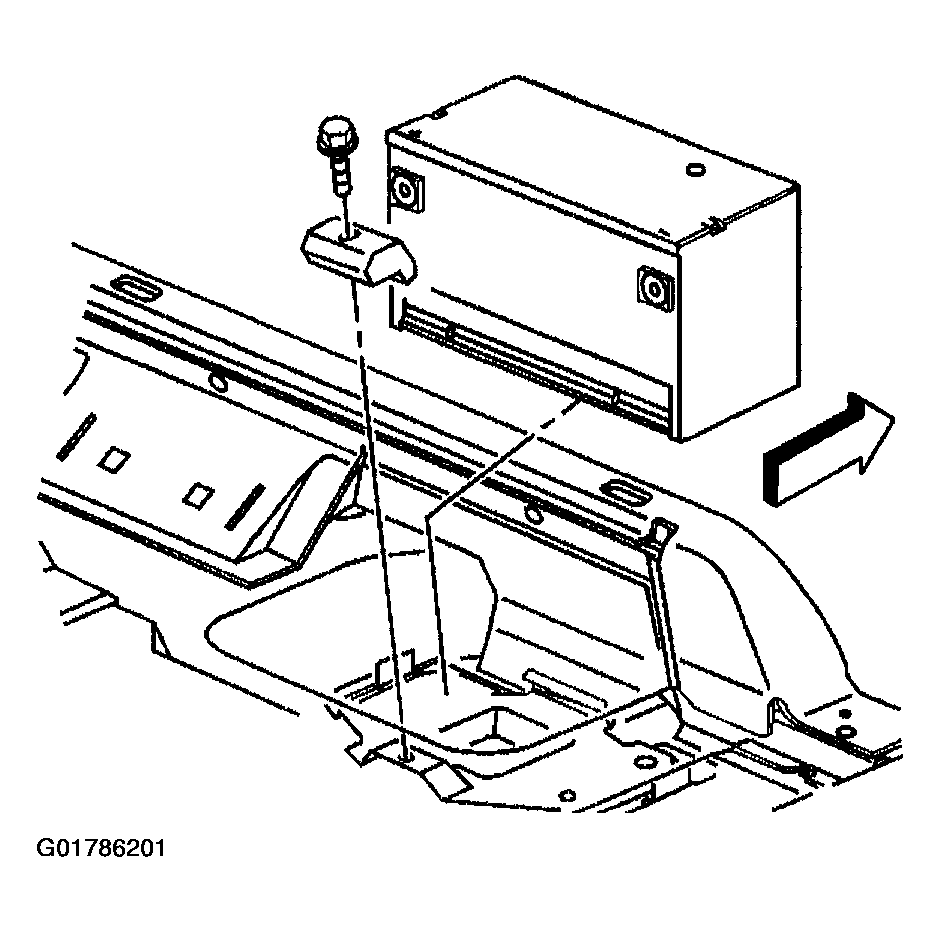

    Fig 3: Removing Battery
    G01786201Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery.
