Removal Procedure

Important:

• Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
• Always route the replacement cable the same way as the original cable.

1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

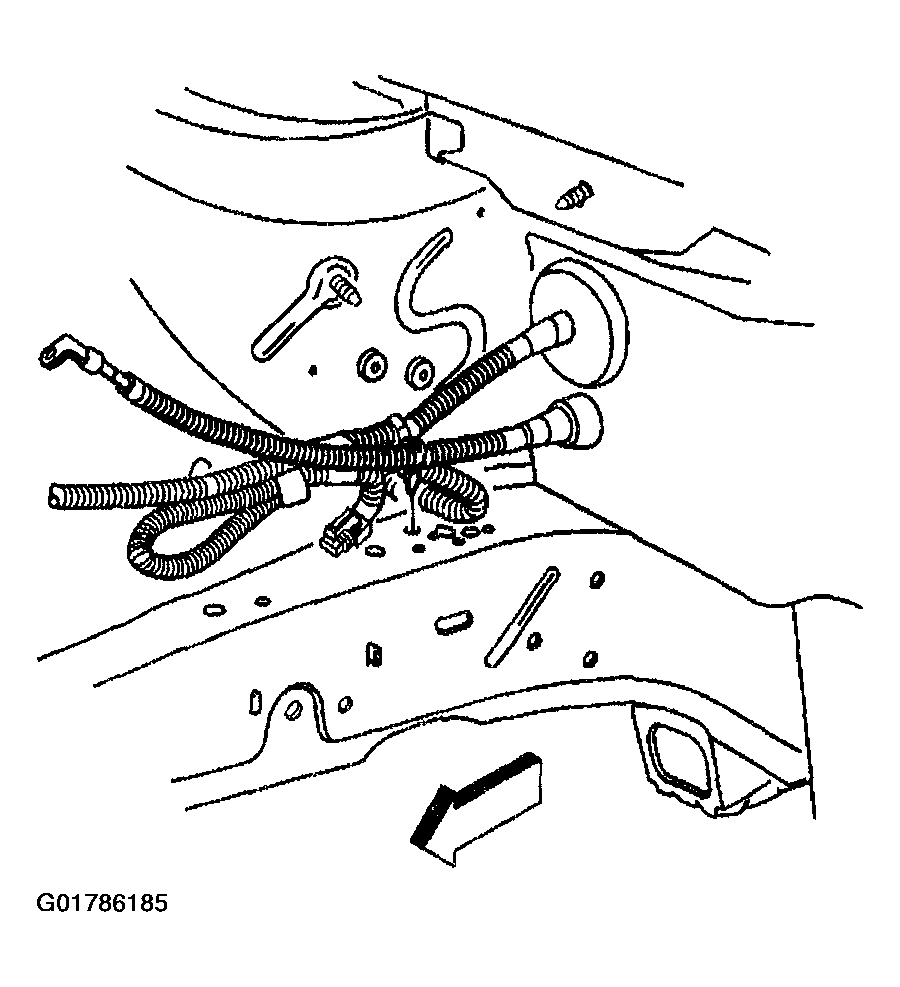

2. Disconnect the positive battery cable (1) from the battery.
   Fig 1: Disconnecting Positive Battery Cable From Battery

   Courtesy of GENERAL MOTORS CORP.

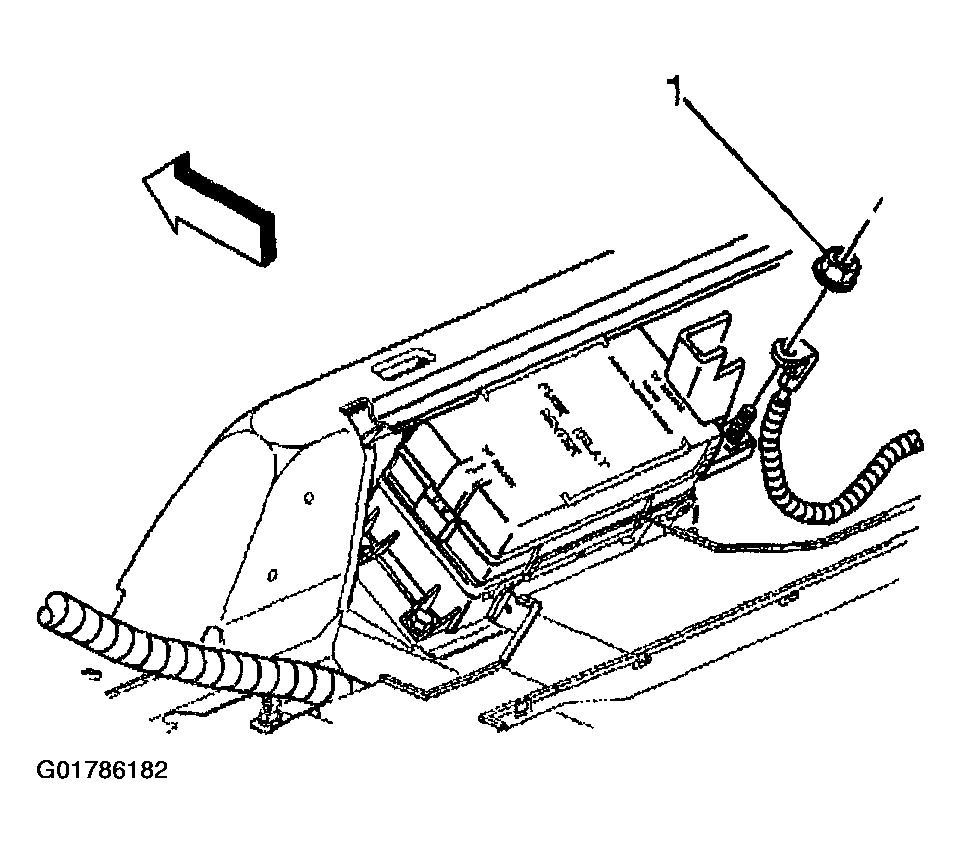

3. Remove the nut (1) securing the positive battery cable to the rear fuse block.
   Fig 2: Removing Nut Securing Positive Battery Cable To Rear Fuse Block

   Courtesy of GENERAL MOTORS CORP.
4. Remove the interior trim moldings. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR to expose the positive battery cable.
5. Remove the right closeout insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT or CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

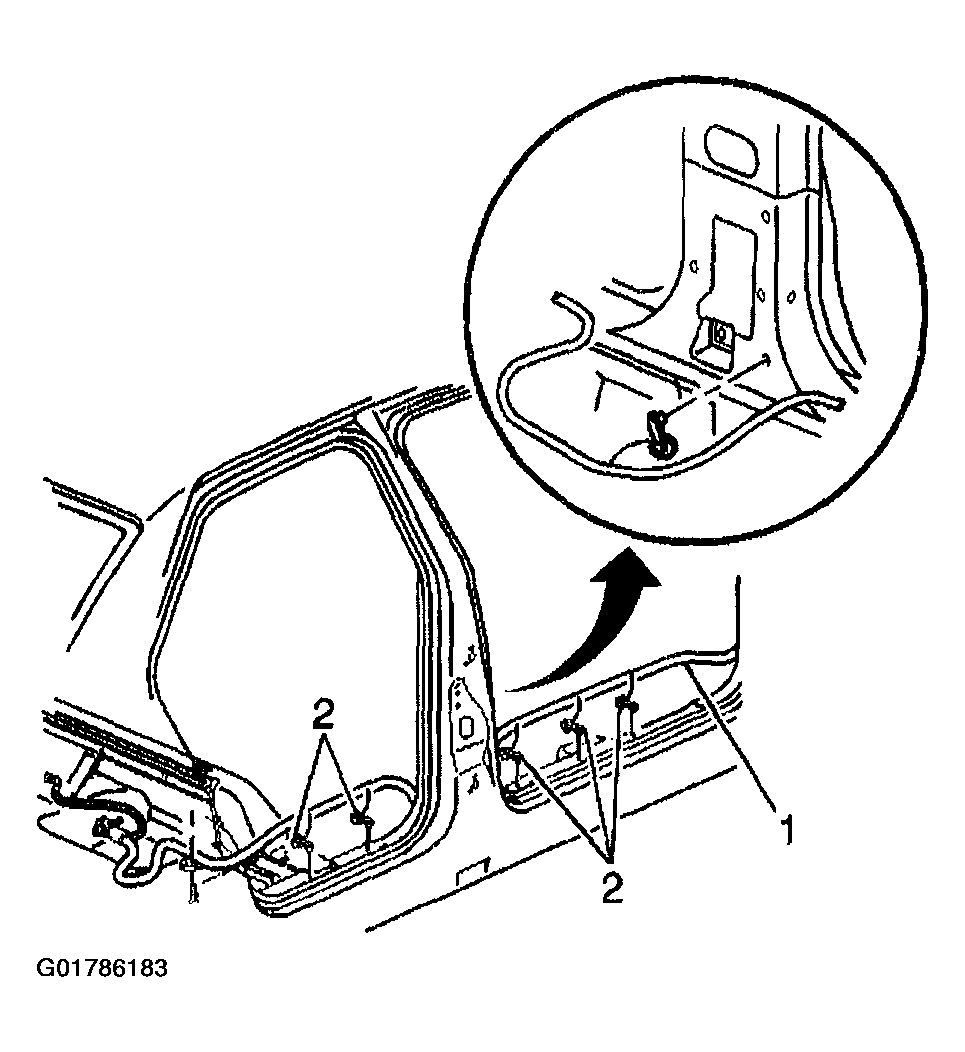

6. Remove the battery cable retainers (2) from the rocker panel area.
   Fig 3: Removing Battery Cable Retainers From Rocker Panel Area

   Courtesy of GENERAL MOTORS CORP.

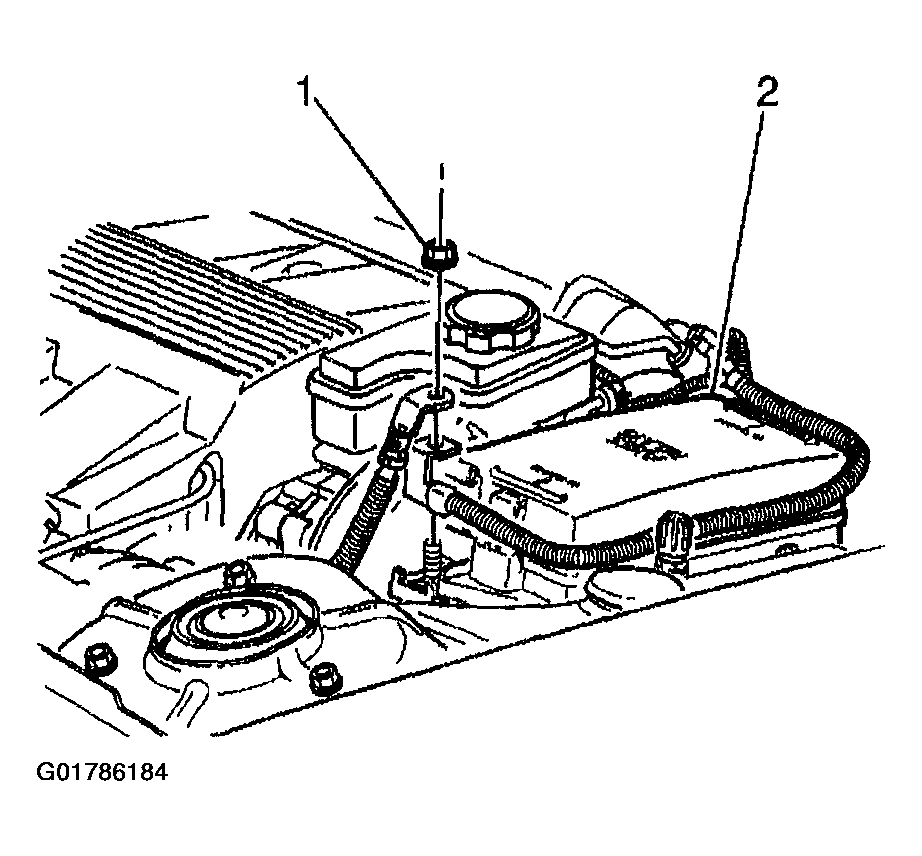

7. Disconnect the positive battery cable from the underhood fuse block (2).
   Fig 4: Disconnecting Positive Battery Cable From Underhood Fuse Block

   Courtesy of GENERAL MOTORS CORP.

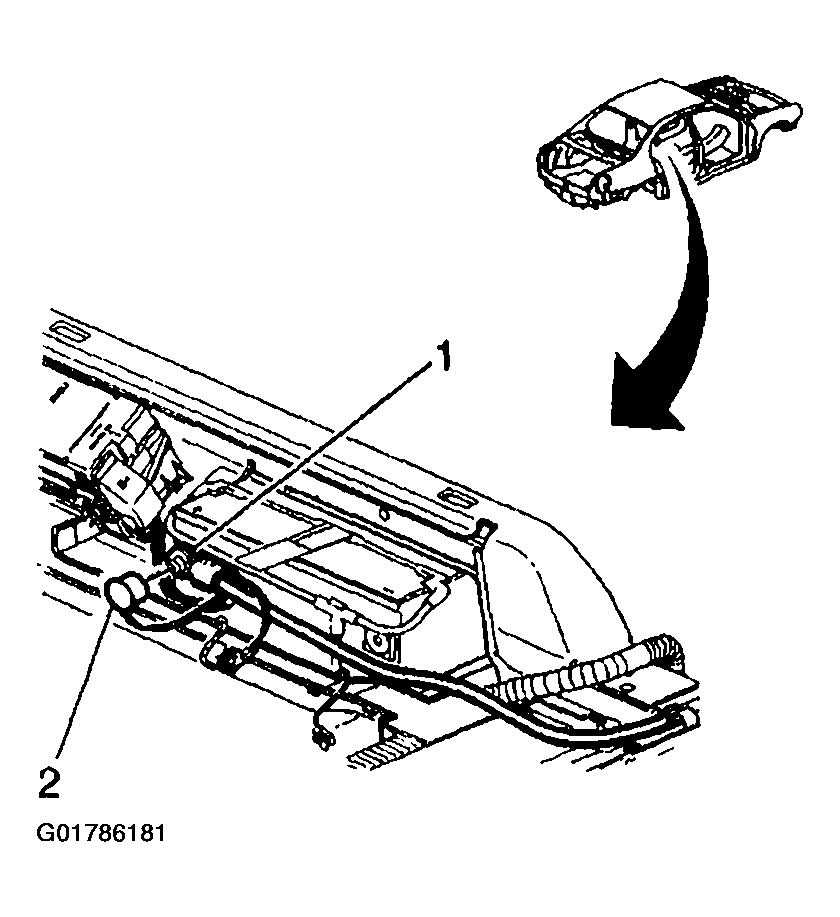

8. Remove the battery cable retainer from the rail.
   Fig 5: Removing Battery Cable Retainer From Rail

   Courtesy of GENERAL MOTORS CORP.

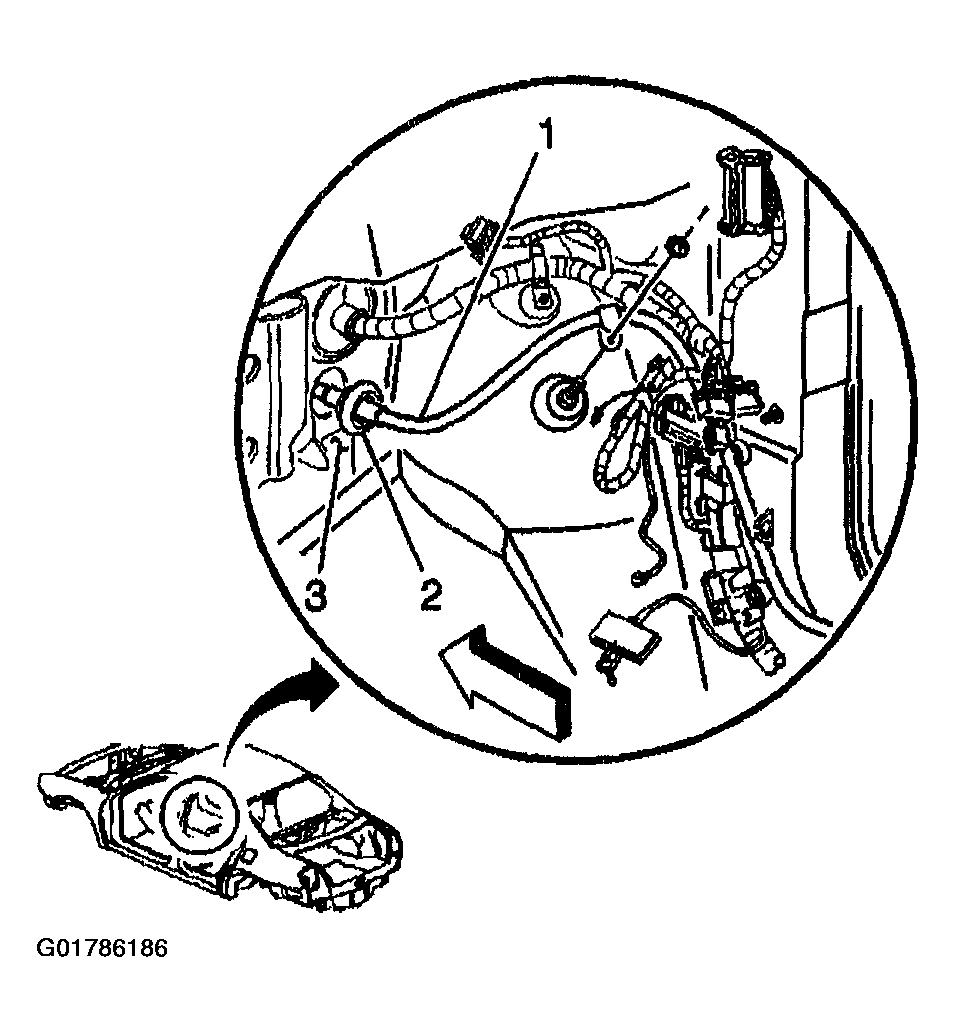

9. Unseat the battery cable grommet (2) from the cowl panel (3).
   Fig 6: Removing Battery Cable

   Courtesy of GENERAL MOTORS CORP.
10. Carefully remove the battery cable (1) from the vehicle by pulling the cable through the cowl panel (3) and out of the vehicle.
