Installation Procedure

NOTE: Refer to FASTENER NOTICE .

Important: Clean any existing oxidation from the contact face of the battery terminal and battery cable using a wire brush before installing the battery cable to the battery terminal.

Connect the negative battery cable to the battery.

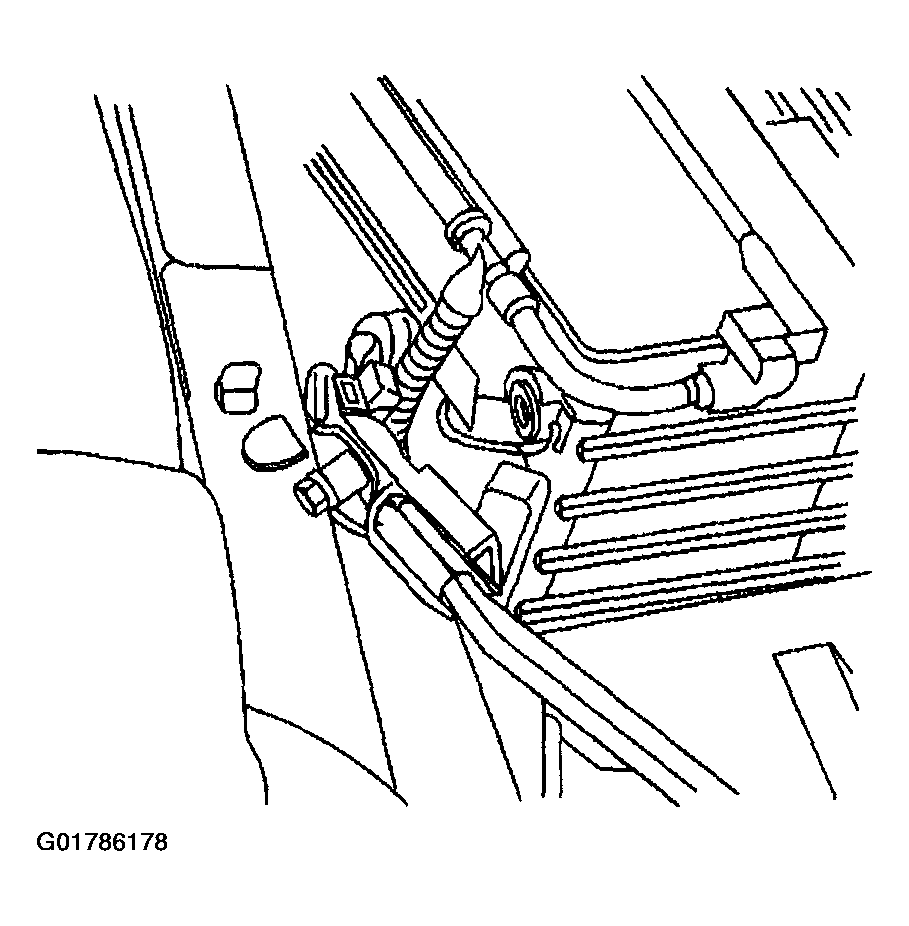

Fig 1: Installing Negative Battery Cable From Battery
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the battery ground (negative) terminal bolt to 17 N.m (13 lb ft).
Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .

The radio incorporates electronic memory for the clock and pre-selected radio stations, reprogramming is not necessary.
