Windshield Washer Fluid Level Switch Connector End View

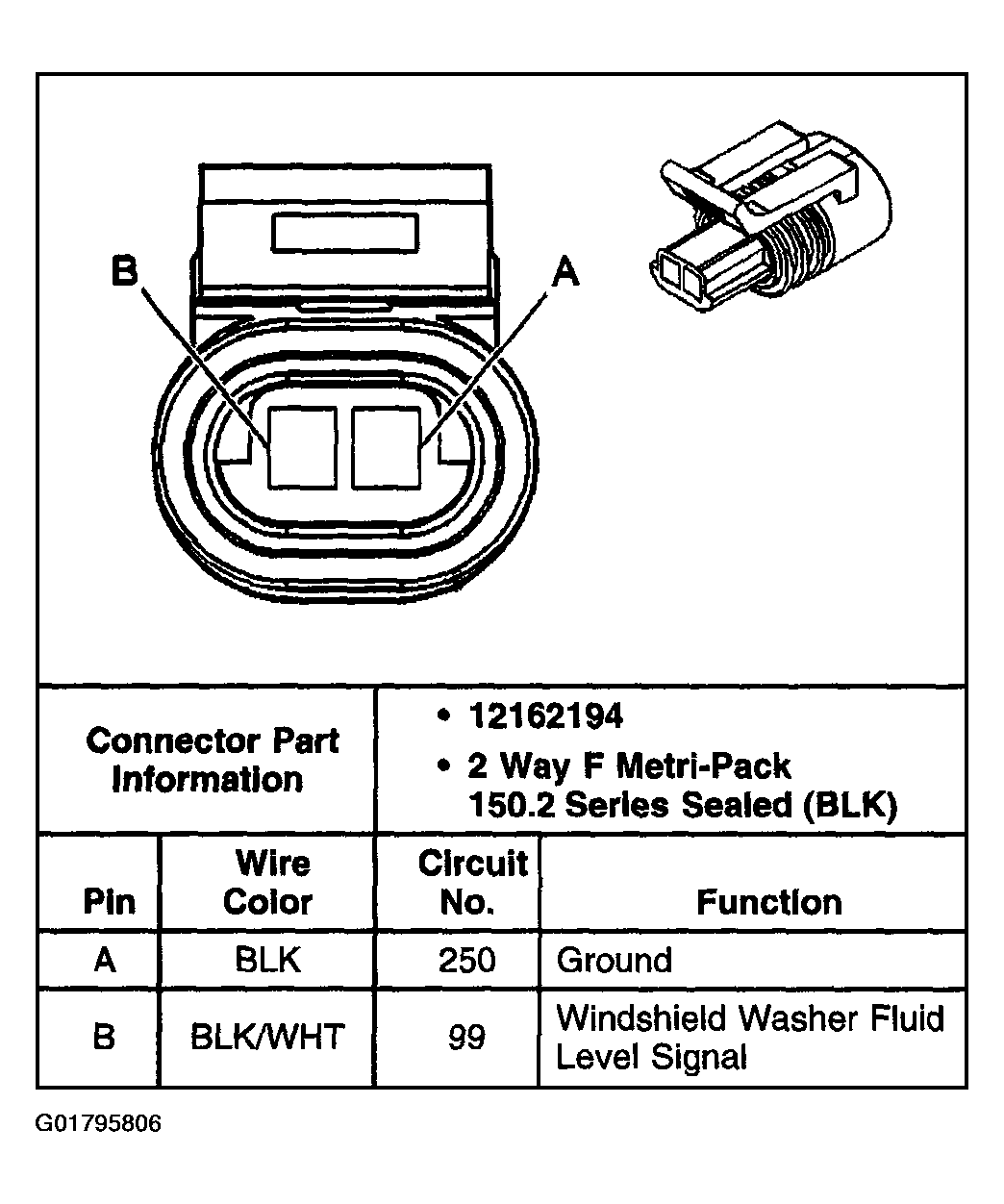

Fig 1: Windshield Washer Fluid Level Switch

G01795806

Courtesy of GENERAL MOTORS CORP.
