Home >> Cadillac >> 2002 >> Seville SLS >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Steering Controls Connector End Views >> Automatic Level Control (ALC) Module Connector End View (1 Of 2)

Automatic Level Control (ALC) Module Connector End View (1 Of 2)

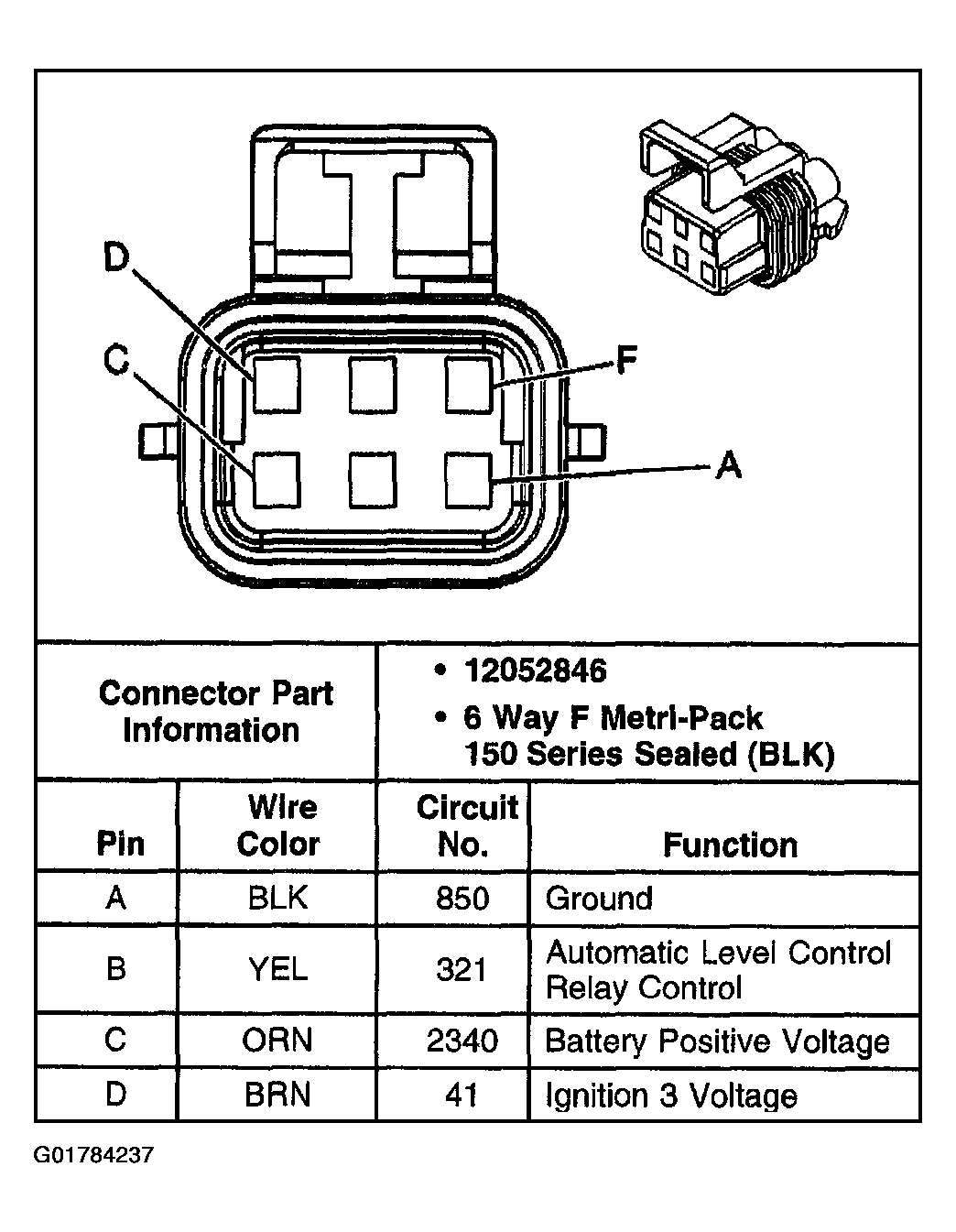

Fig 1: Automatic Level Control (ALC) Module (1 Of 2)

G01784237

Courtesy of GENERAL MOTORS CORP.
