Steering Wheel Position Sensor Connector End View

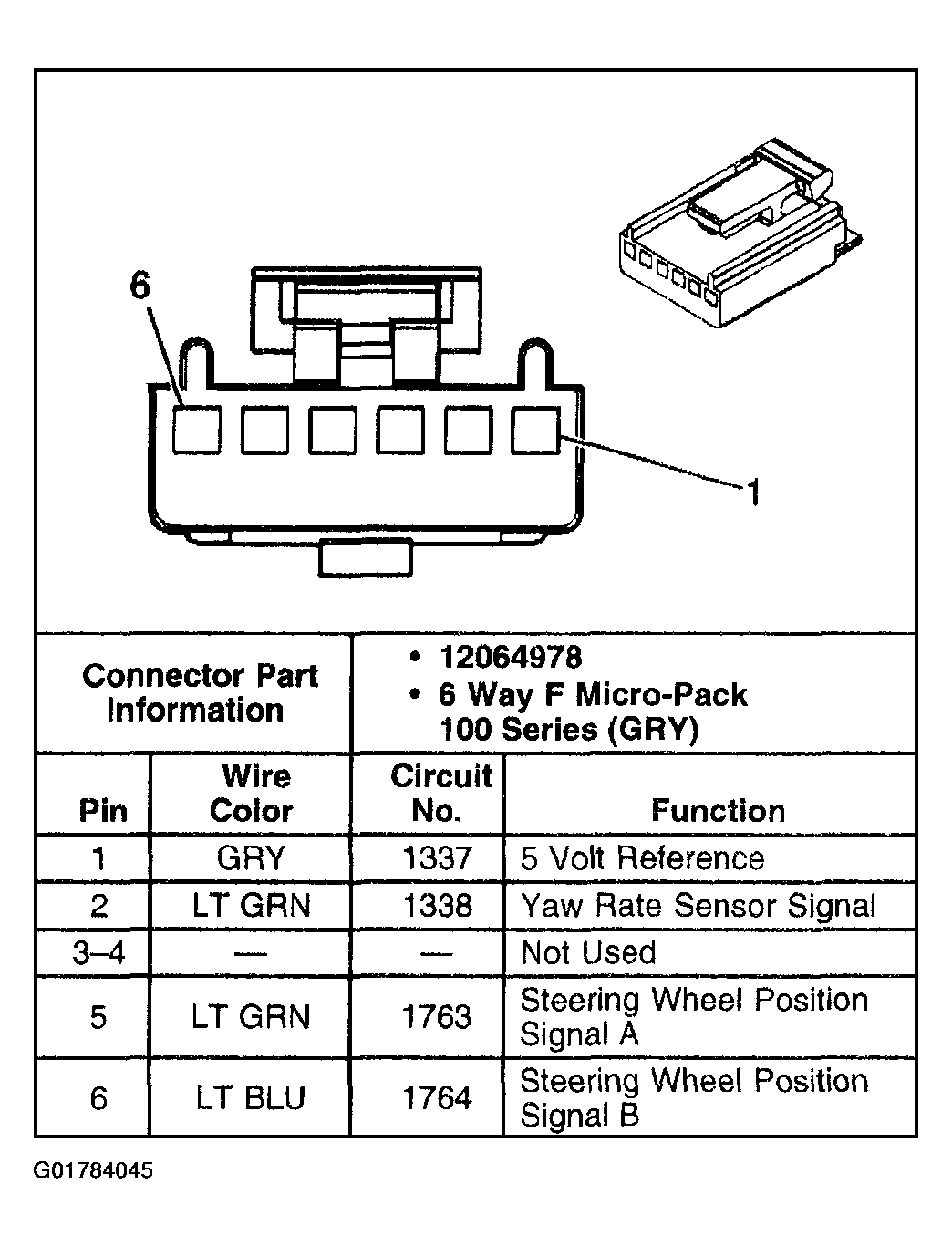

Fig 1: Steering Wheel Position Sensor

G01784045

Courtesy of GENERAL MOTORS CORP.
