Scan Tool Data List

Fig 1: Identifying Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.

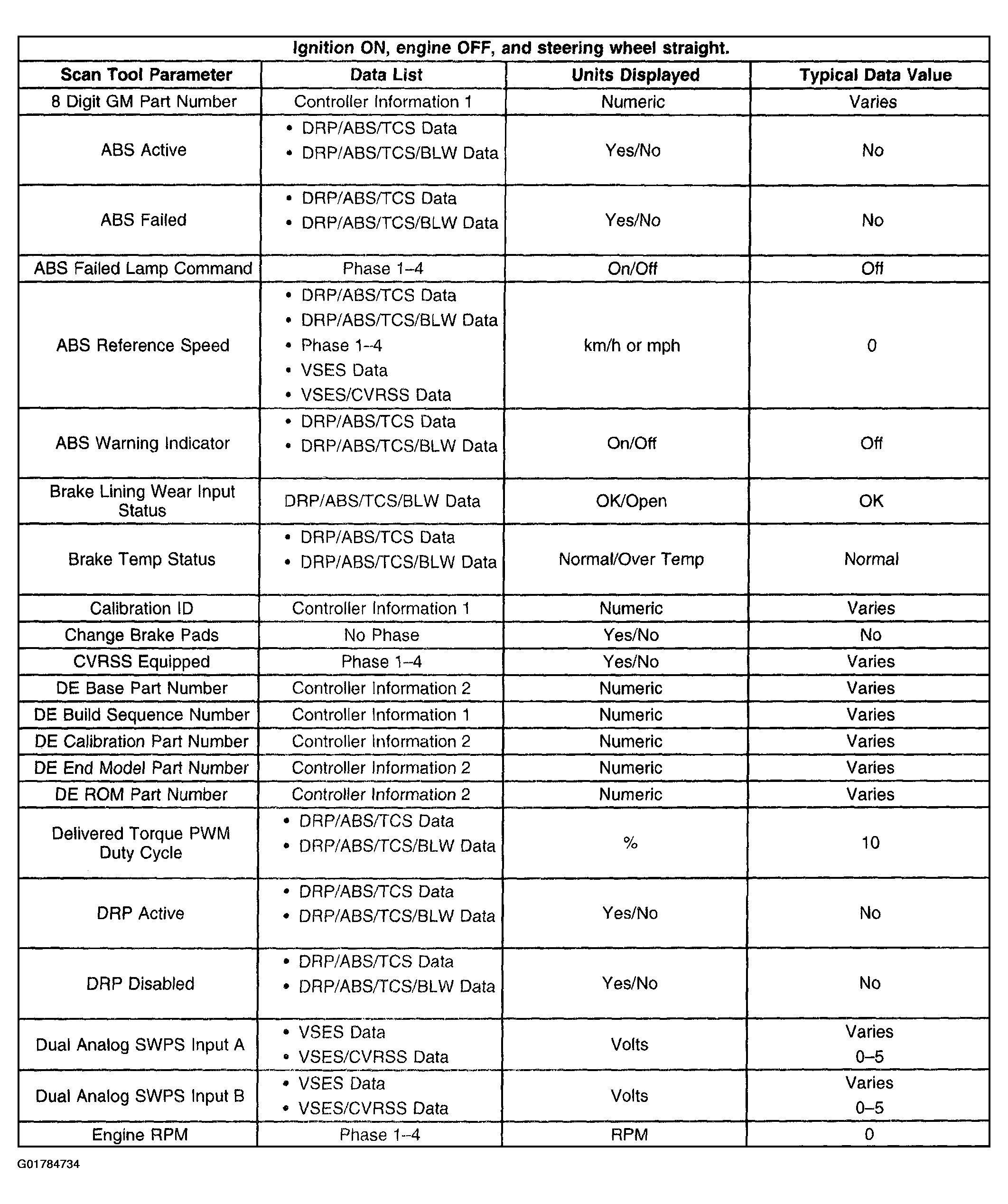

Fig 2: Identifying Electronic Brake Control Module (EBCM) (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

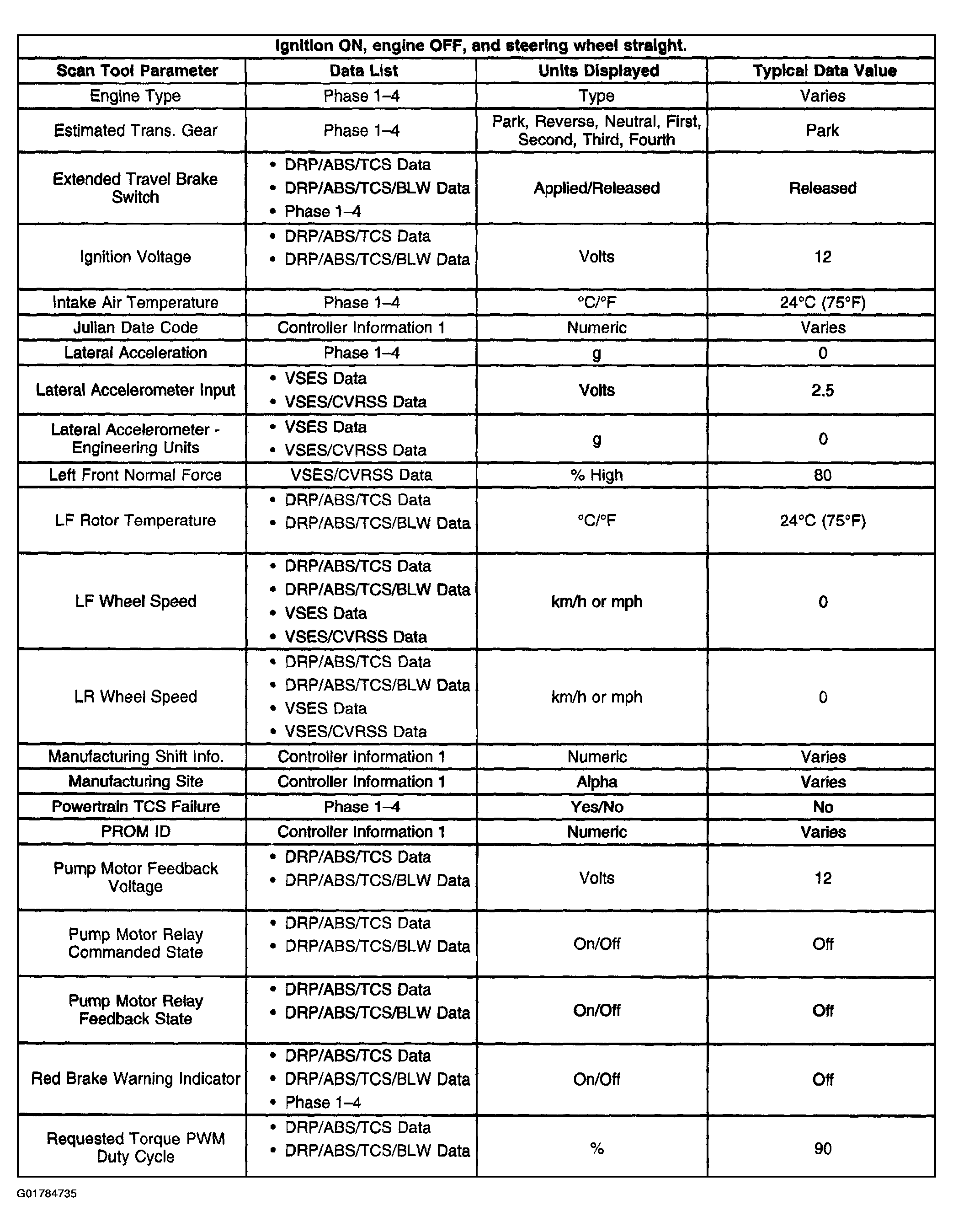

Fig 3: Identifying Electronic Brake Control Module (EBCM) (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

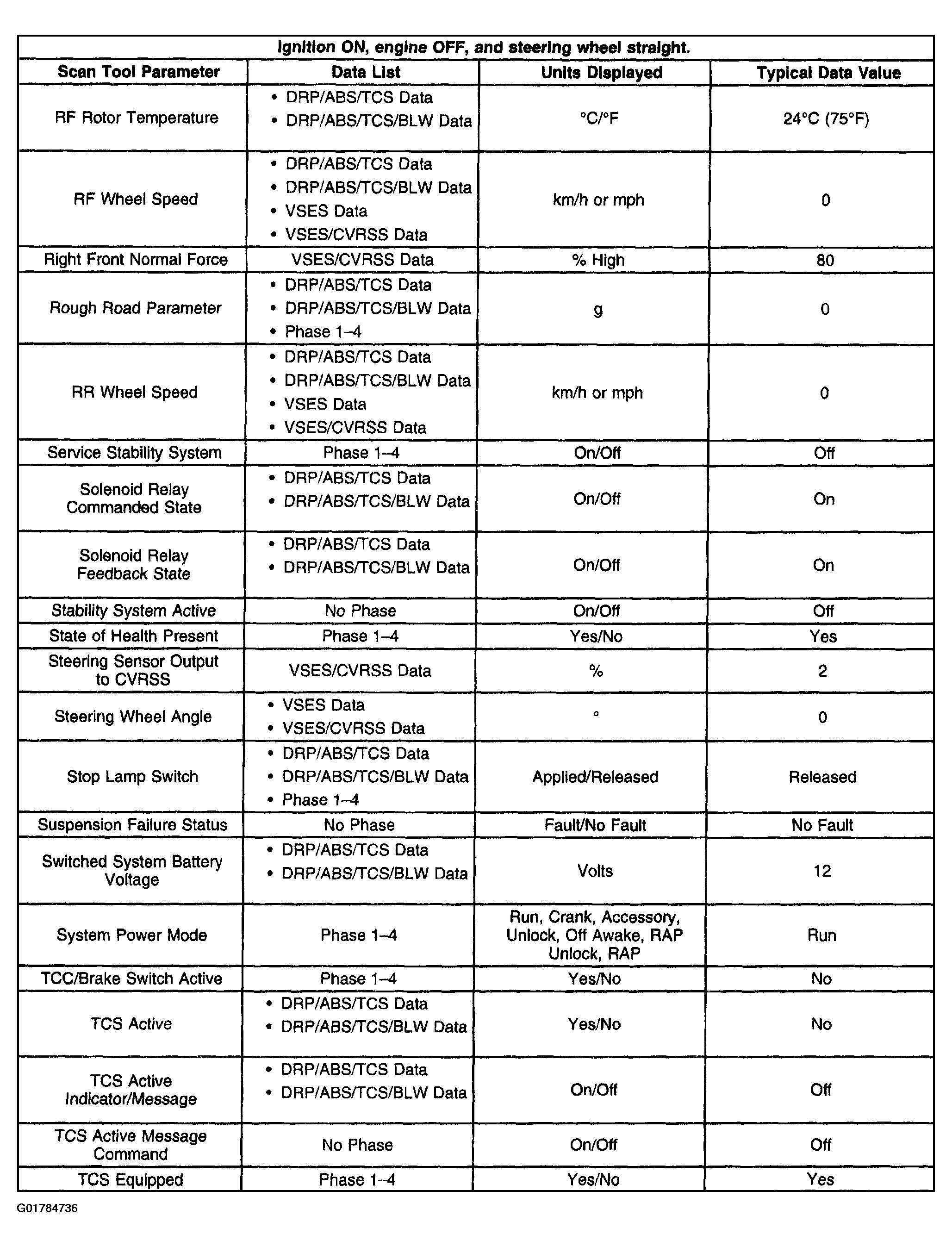

Fig 4: Identifying Electronic Brake Control Module (EBCM) (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

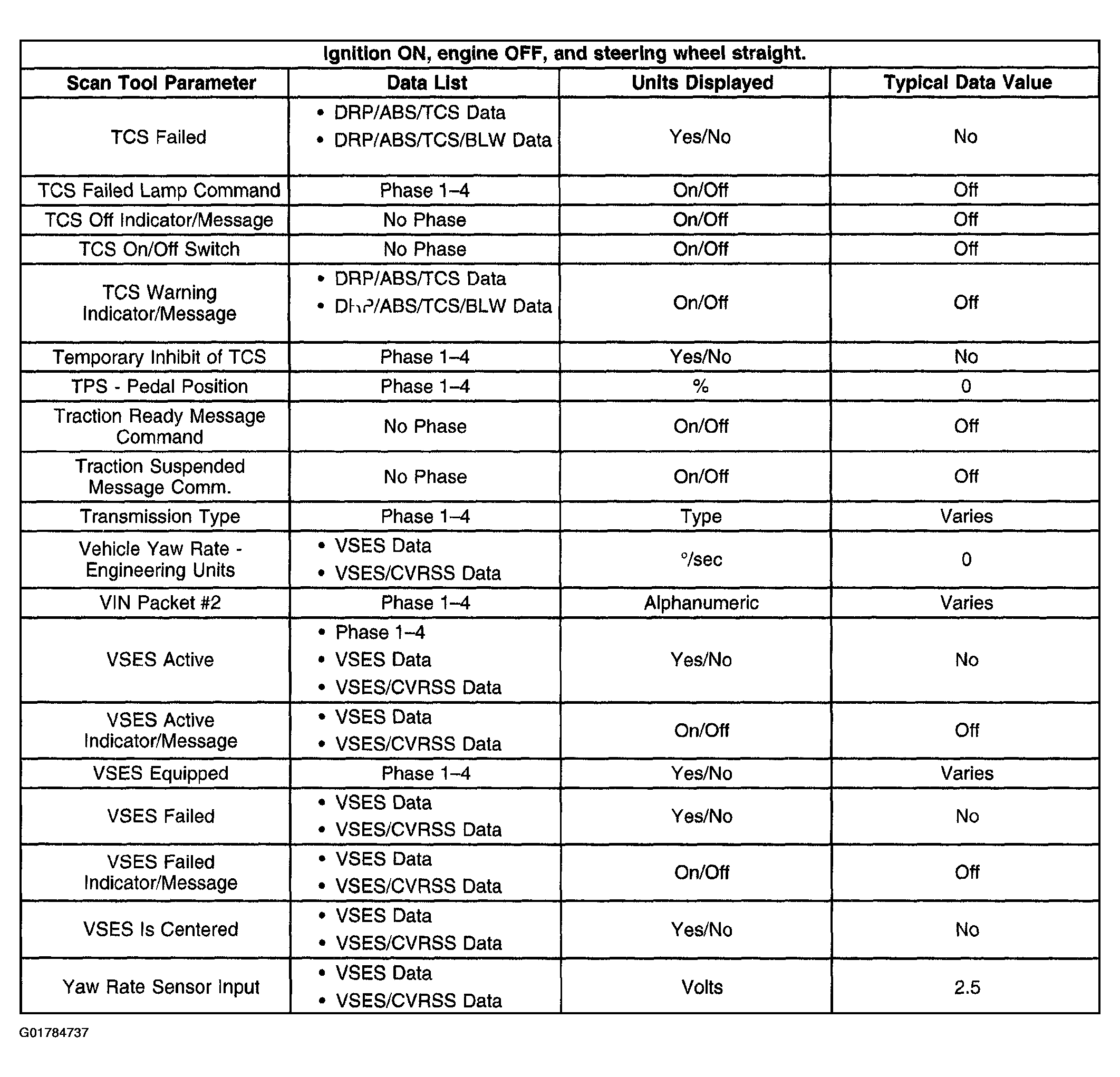

Fig 5: Identifying Electronic Brake Control Module (EBCM) (4 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying HVAC Control Module (Instrument Panel Module)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
