Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the door frame garnish molding. Refer to Garnish Molding Replacement - Front Door Frame .

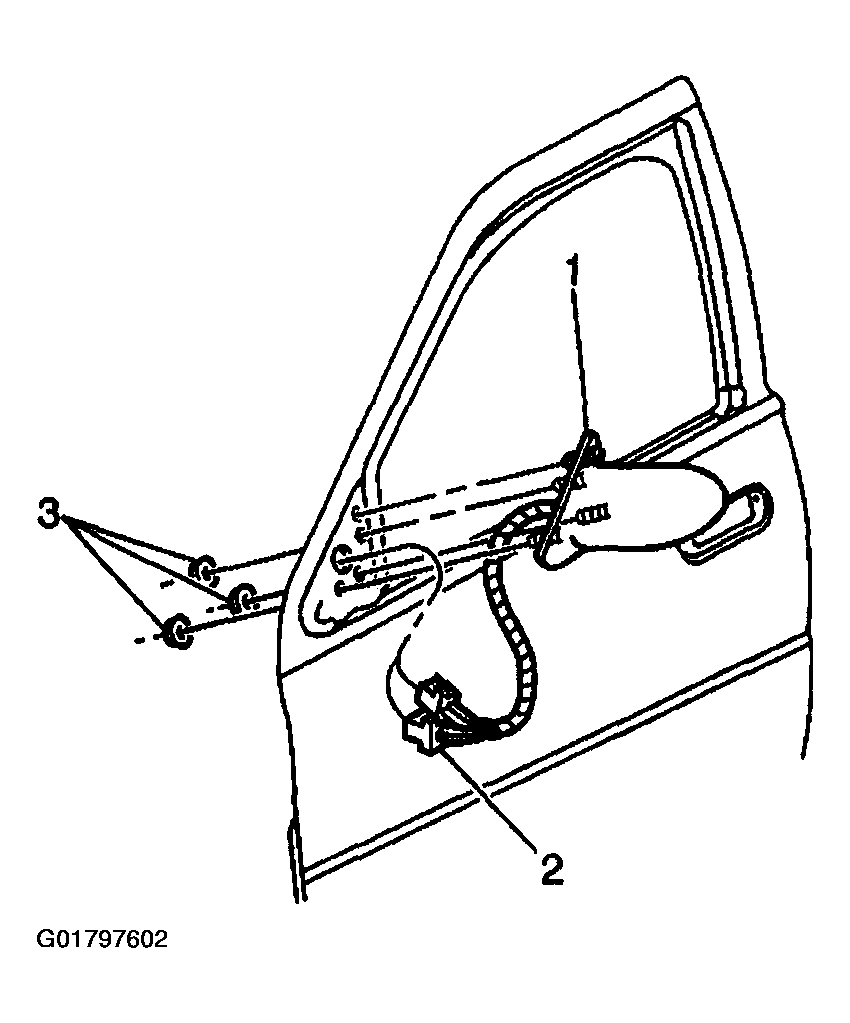

    3. Fig 1: Locating Power Mirror Components
    G01797602Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors (2).
  4. Remove the three fasteners (3).
  5. Disconnect the wire harness from the retainer clip and unseat the grommet.
  6. Route the wiring harness through the hole in the mirror patch.
  7. Remove the mirror (1) from the door.
