Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
  2. Remove the inside door handle from the door trim panel. Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE .
  3. Disconnect the memory seat switch (1) electrical connector (2).

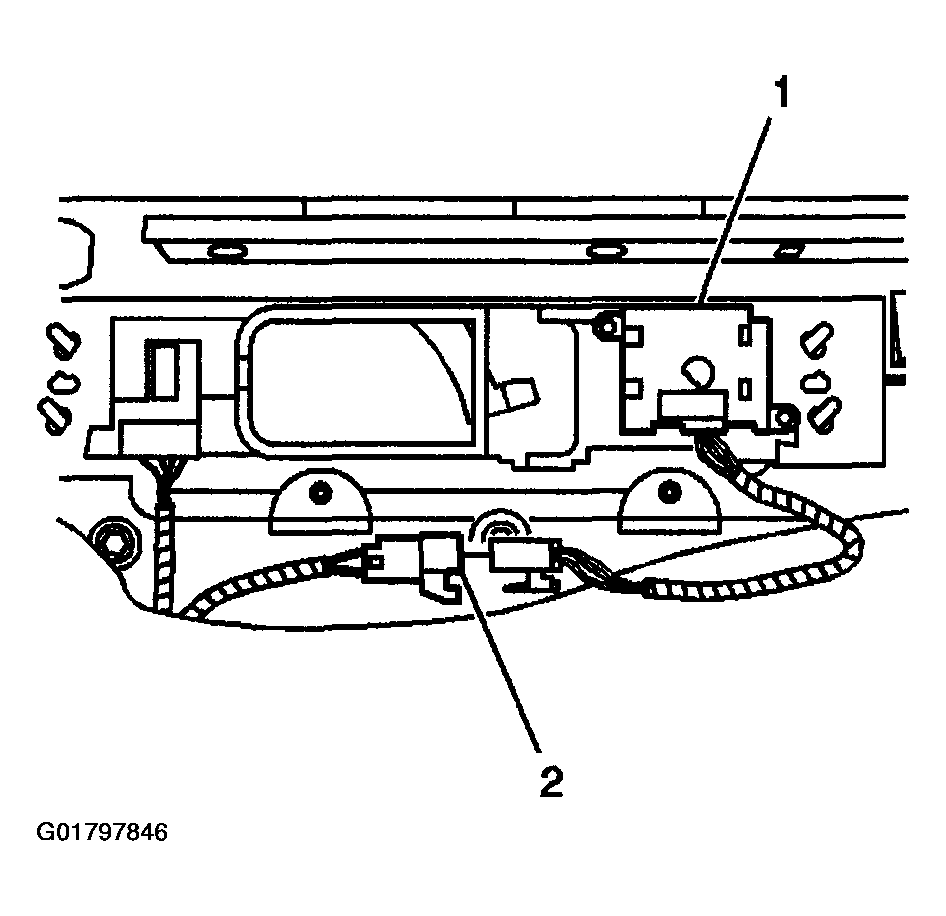

    Fig 1: Memory Seat Switch Electrical Connector
    G01797846Courtesy of GENERAL MOTORS CORP.
  4. Remove the fasteners (1) from the memory seat switch (2).

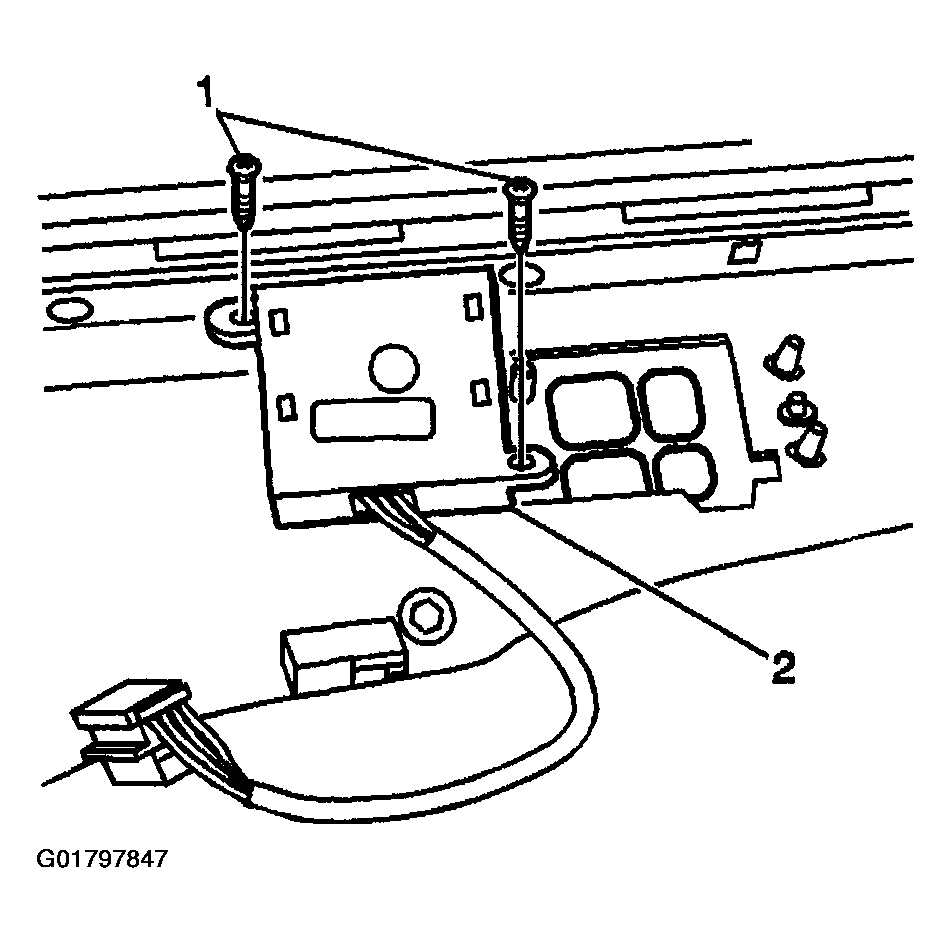

    5. Fig 2: Memory Seat Switch
    G01797847Courtesy of GENERAL MOTORS CORP.
  5. Remove the memory seat switch (2). from the door trim panel.
