Installation Procedure

  1. Install the heated seat module to the seat back.
    NOTE: Refer to FASTENER NOTICE .

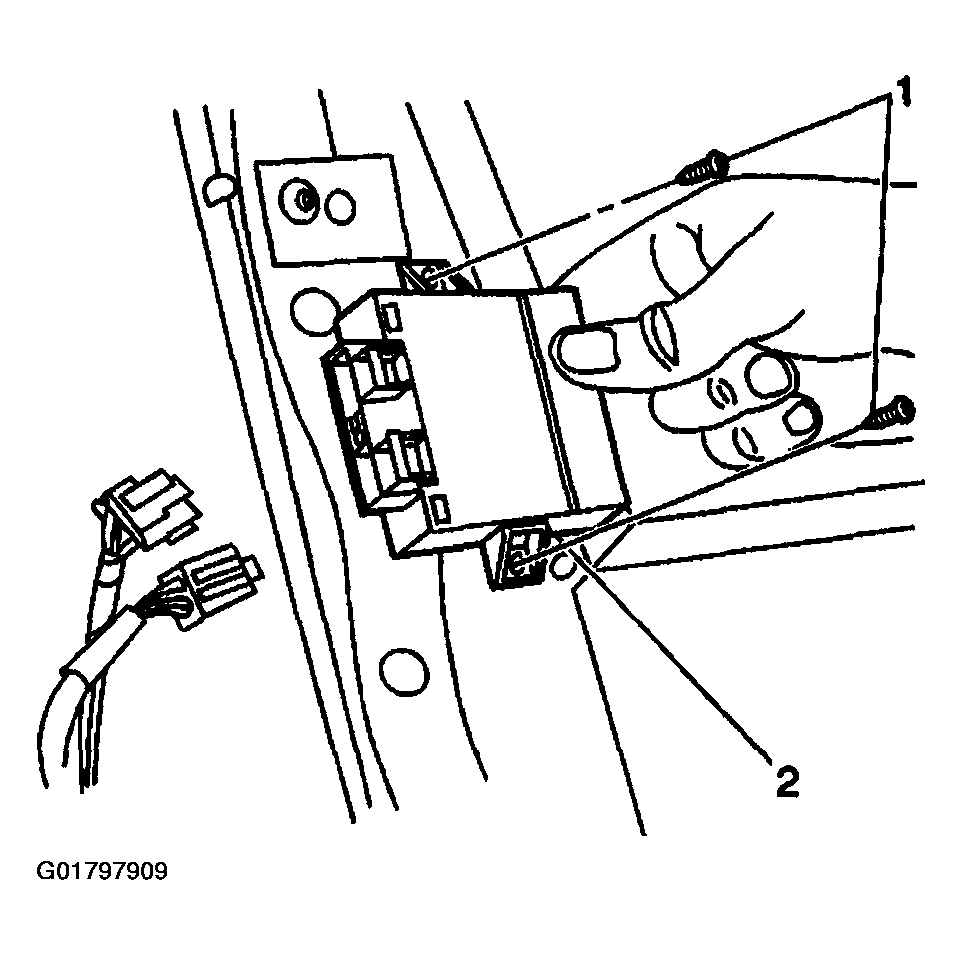

    2. Fig 1: Installing Rear Heated Seat Control Module
    G01797909Courtesy of GENERAL MOTORS CORP.
  2. Install the heated seat module fasteners (1).
  3. Connect the heated seat module electrical connections.
  4. Install the rear seat back. Refer to Seat Back Replacement - Rear .
