Scan Tool Output Controls

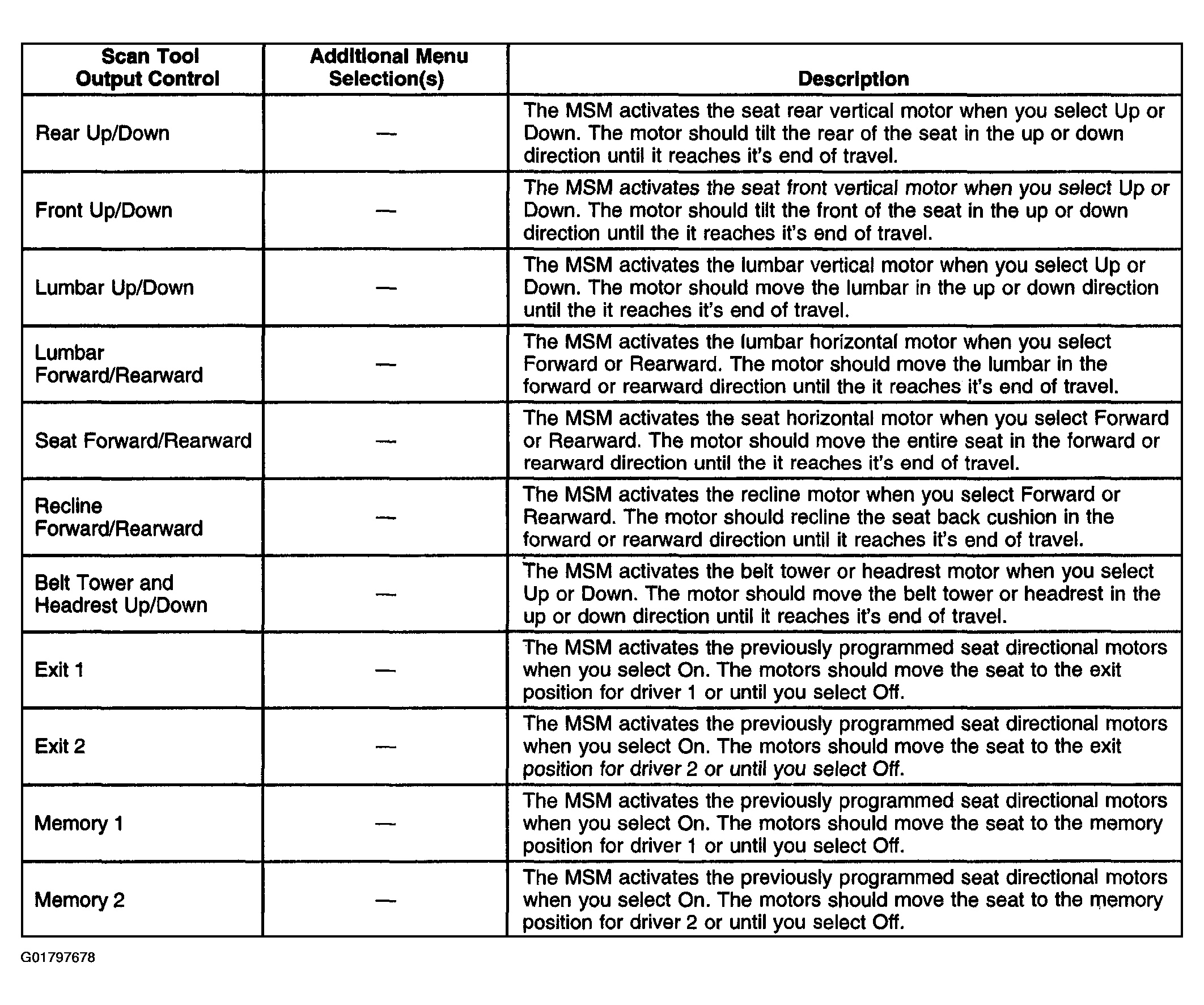

Fig 1: Memory Seat Module (MSM)

G01797678

Courtesy of GENERAL MOTORS CORP.

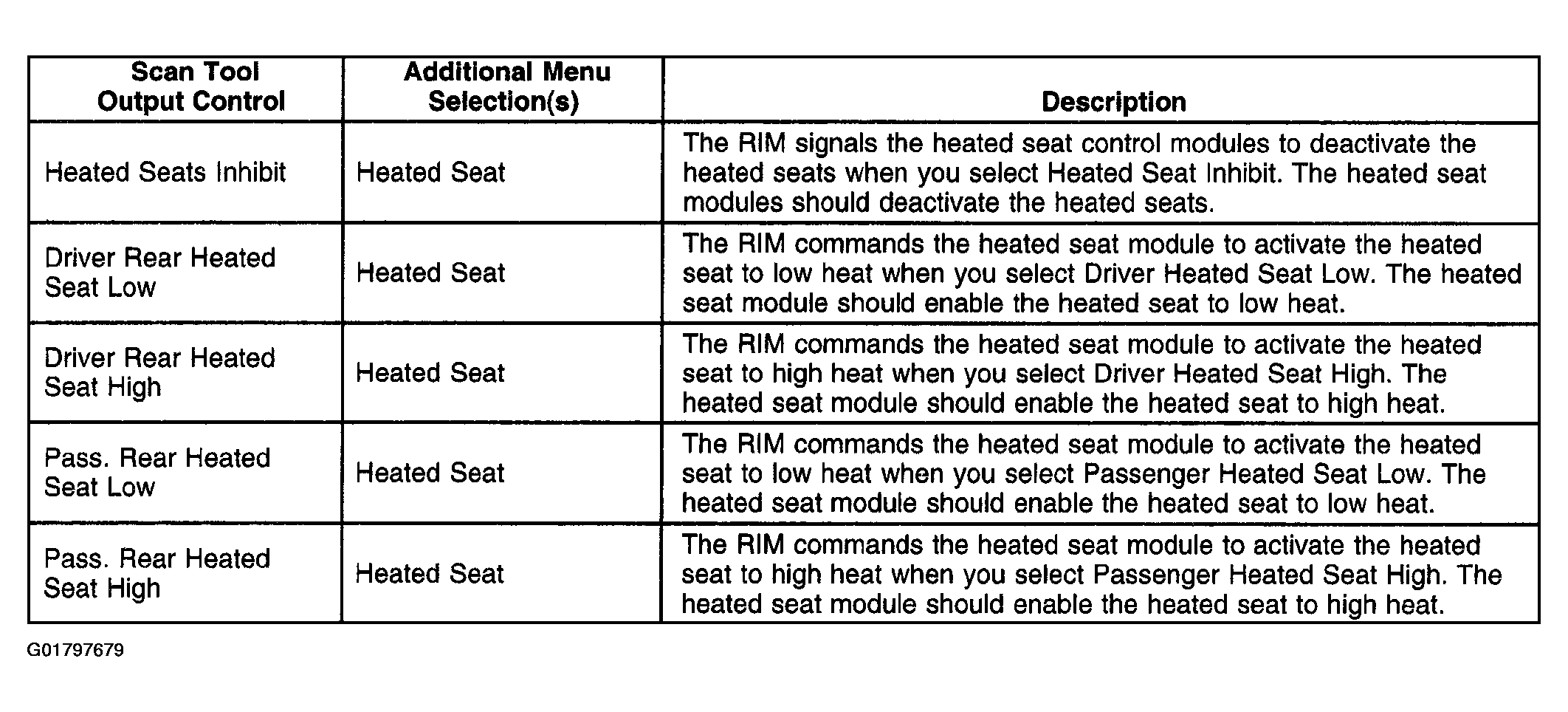

Fig 2: Rear Integration Module (RIM)

G01797679

Courtesy of GENERAL MOTORS CORP.
