Power Seat Systems Component Views

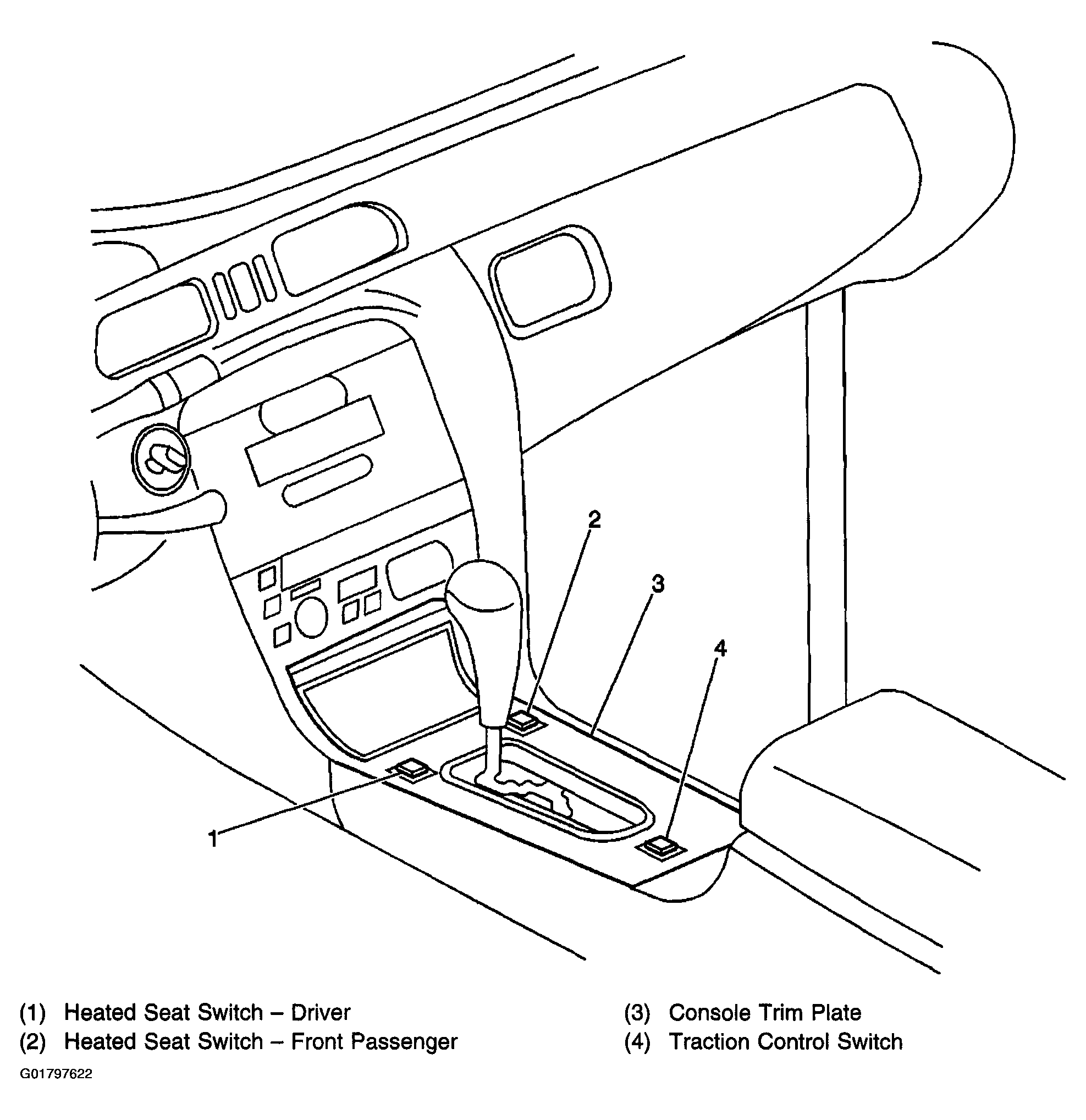

Fig 1: Passenger Compartment, in the Center Console
G01797622Courtesy of GENERAL MOTORS CORP.

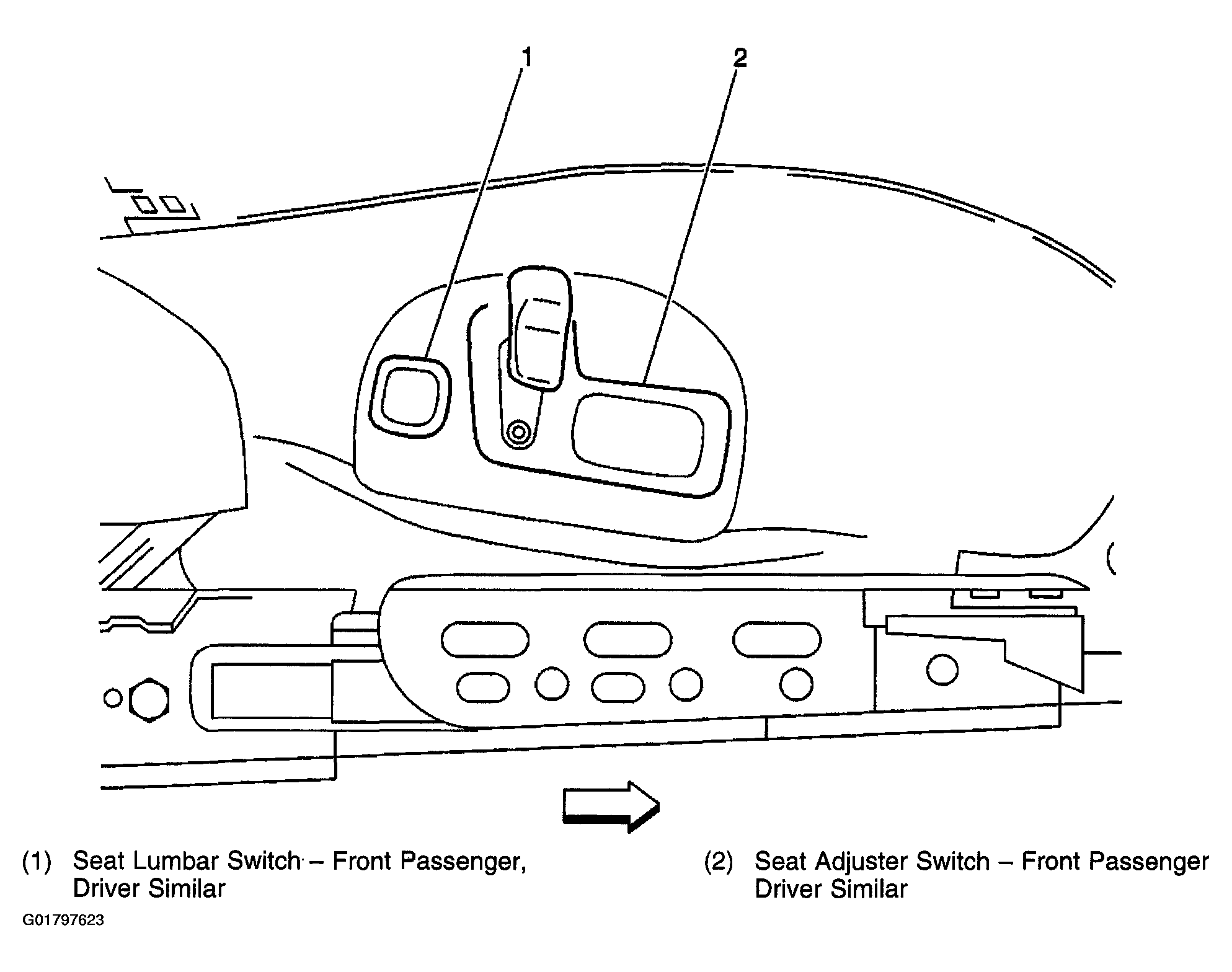

Fig 2: Passenger Compartment, on the Side of the Seat
G01797623Courtesy of GENERAL MOTORS CORP.

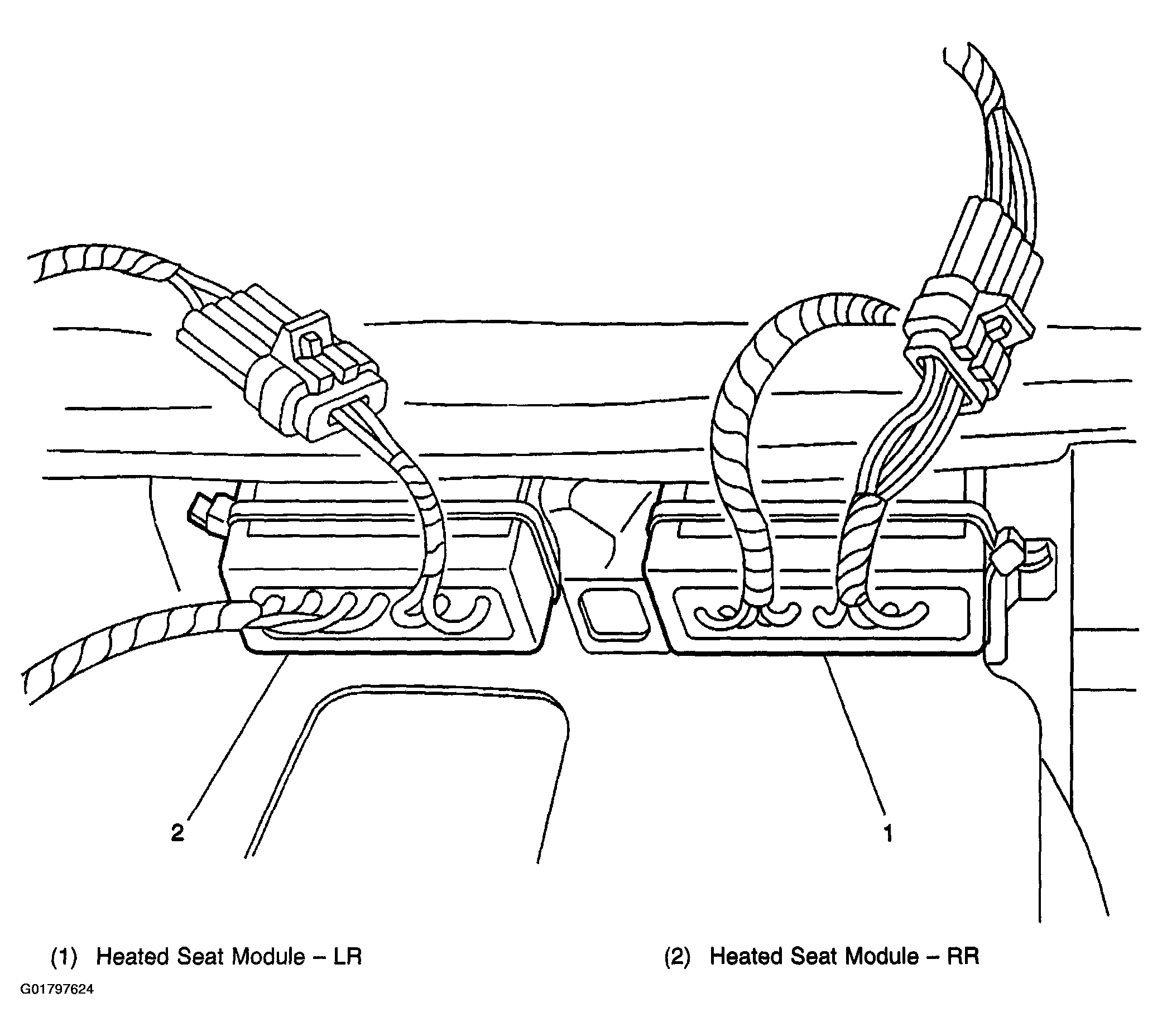

Fig 3: Rear Heated Seat Modules
G01797624Courtesy of GENERAL MOTORS CORP.
