Scan Tool Data List

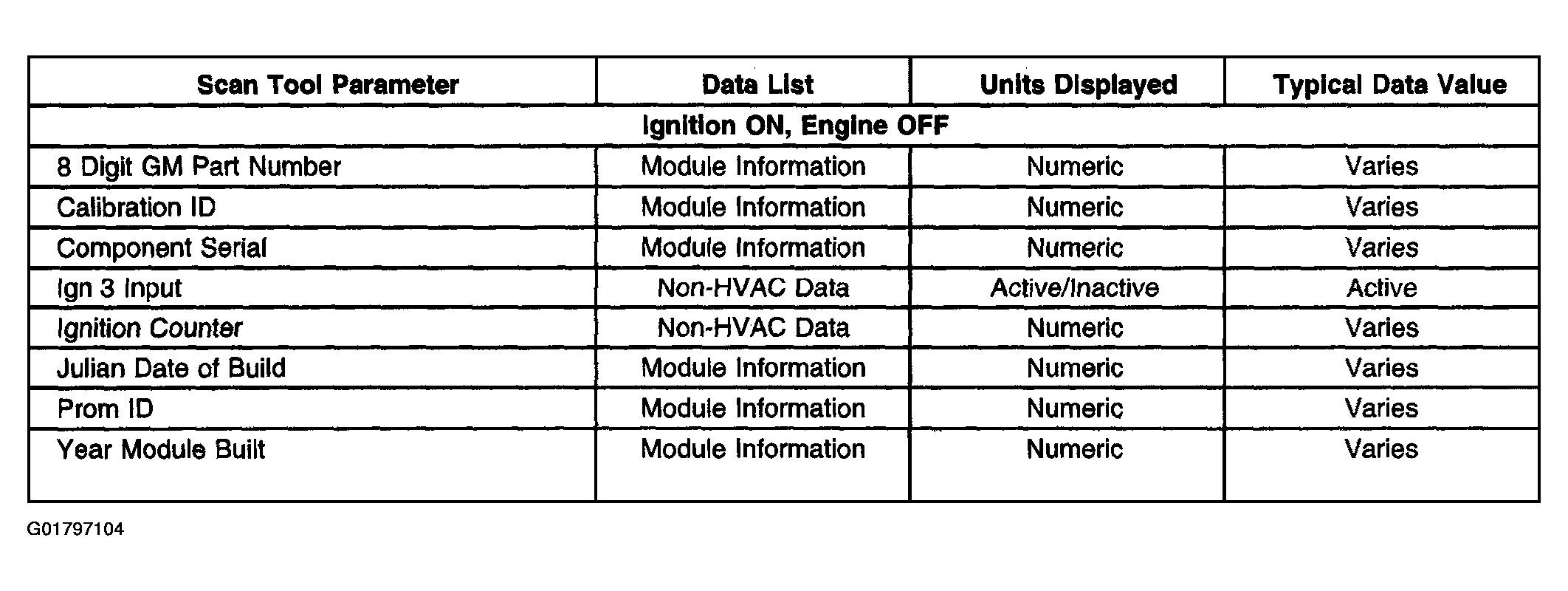

Fig 1: DIM
Courtesy of GENERAL MOTORS CORP.

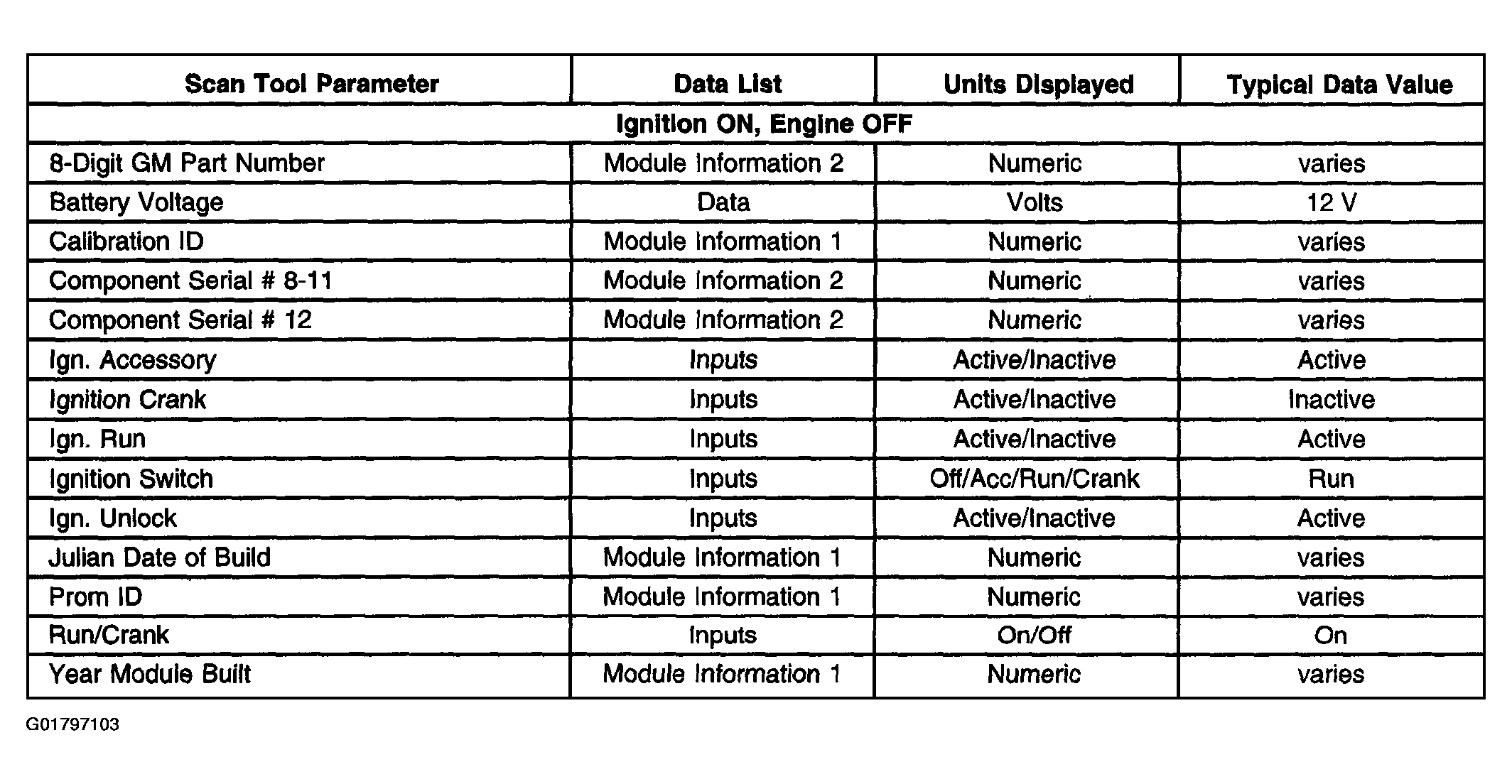

Fig 2: IPM
Courtesy of GENERAL MOTORS CORP.

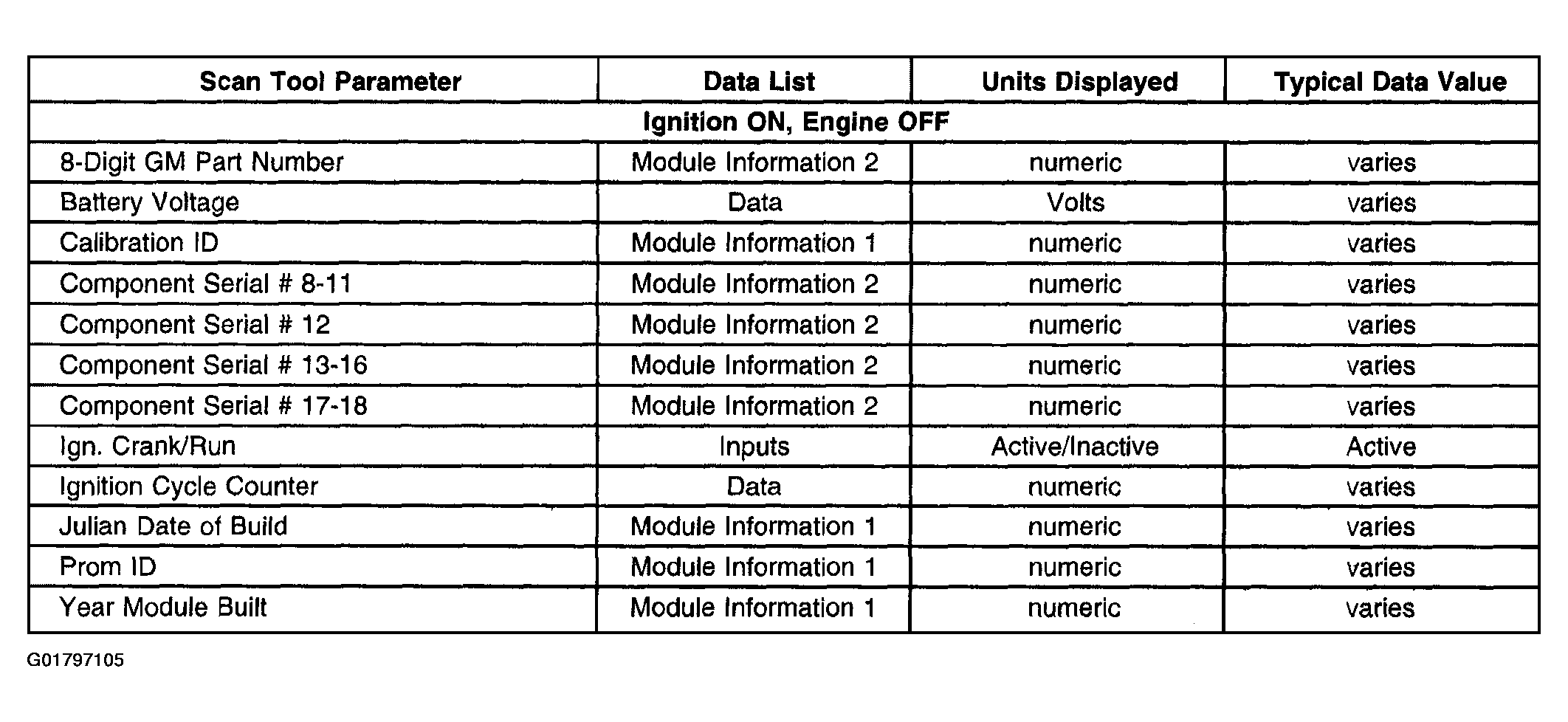

Fig 3: RIM
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
