Data Link Communications Connector End Views

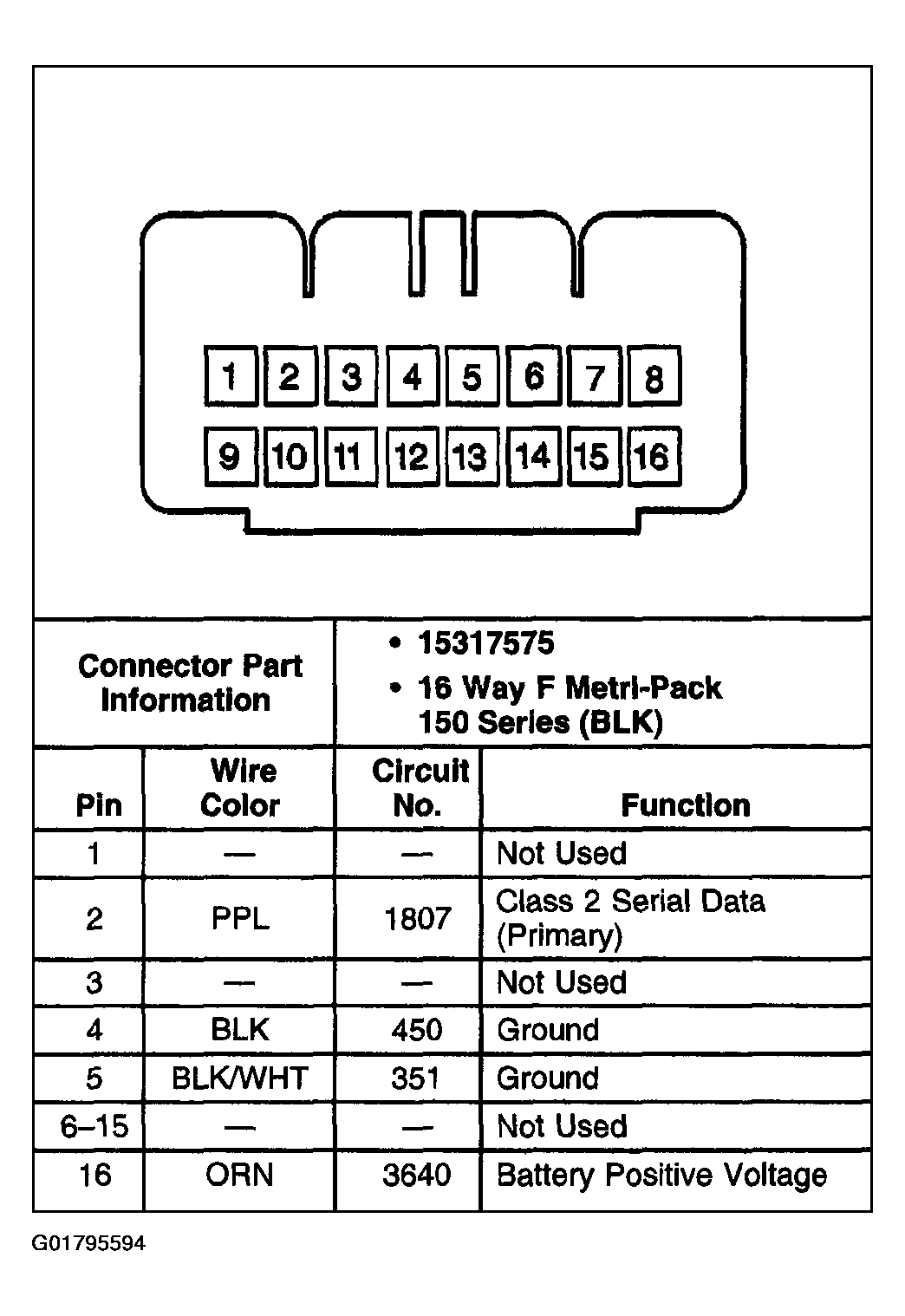

Fig 1: Data Link Connector (DLC)

G01795594

Courtesy of GENERAL MOTORS CORP.
