Vehicle Communication Interface Module (VCIM) Connector End View C3

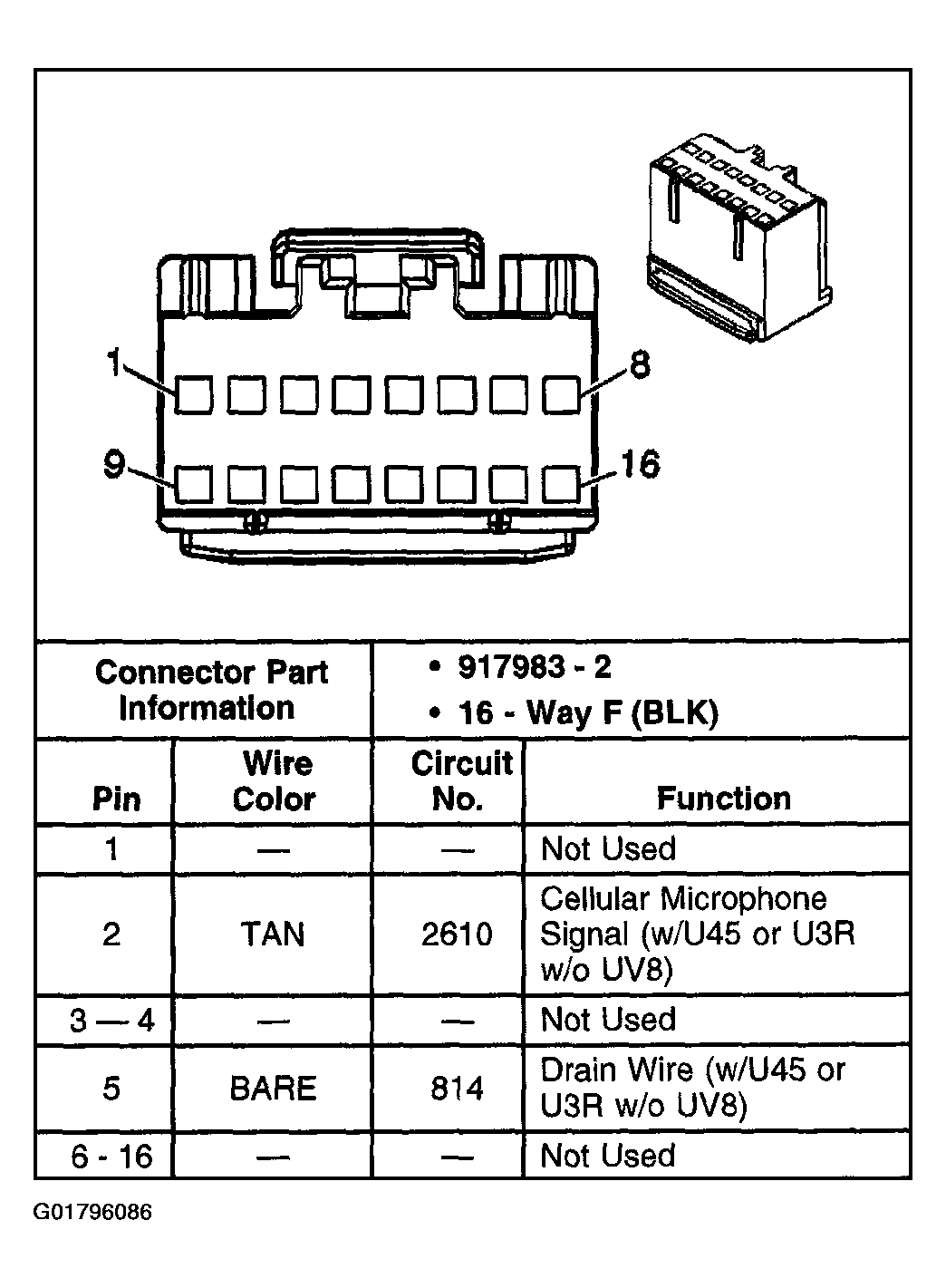

Fig 1: Vehicle Communication Interface Module (VCIM) C3

G01796086

Courtesy of GENERAL MOTORS CORP.
