Power Steering Pump Disassembled View (Regular)

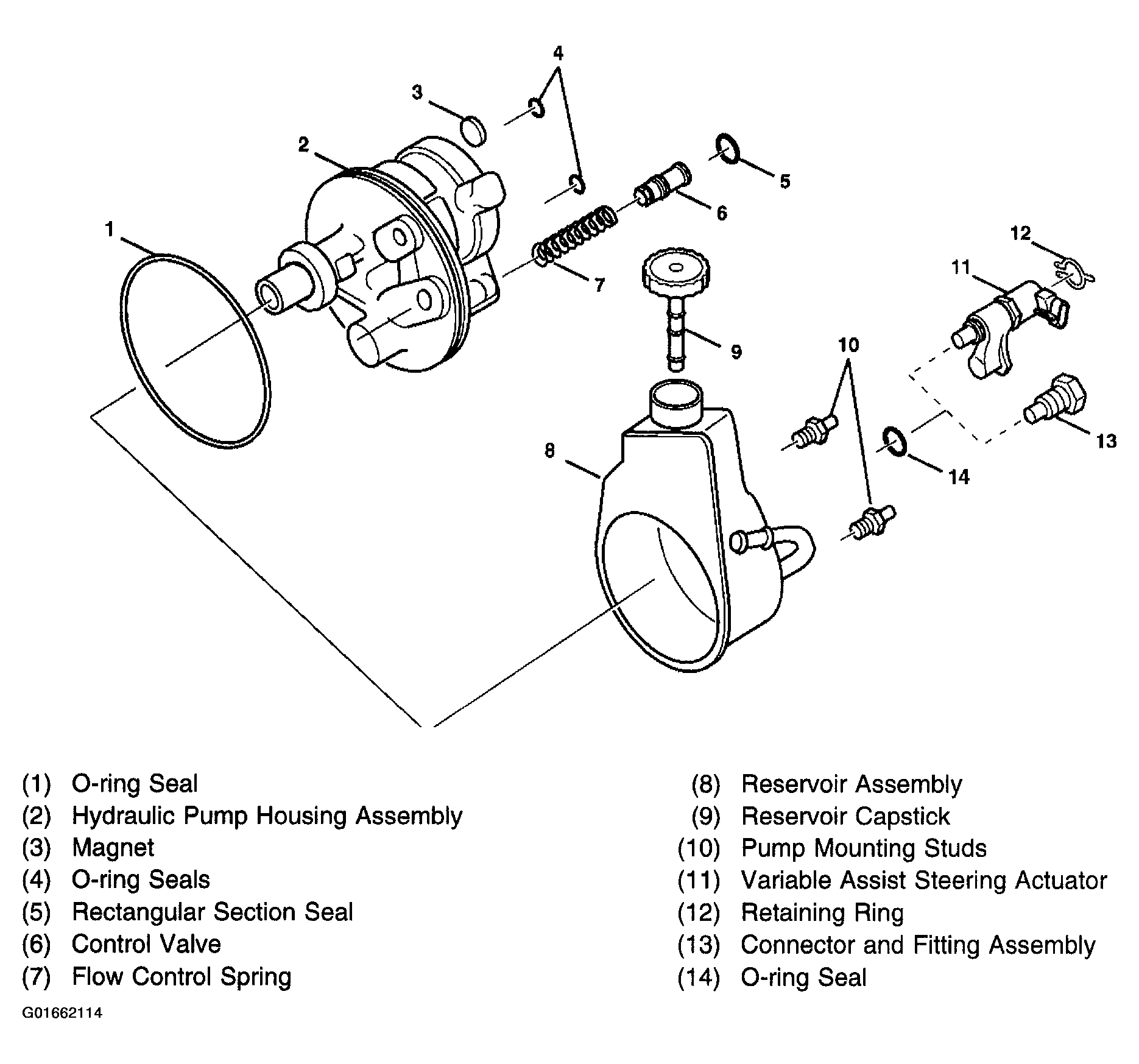

Fig 1: Identifying C/K Truck Power Steering Pump

G01662114

Courtesy of GENERAL MOTORS CORP.
