Home >> Cadillac >> 2002 >> Escalade EXT >> Repair and Diagnosis >> Steering >> Power Steering System >> Component Locator >> Power Steering Gear Disassembled View (700 Gear)

Power Steering Gear Disassembled View (700 Gear)

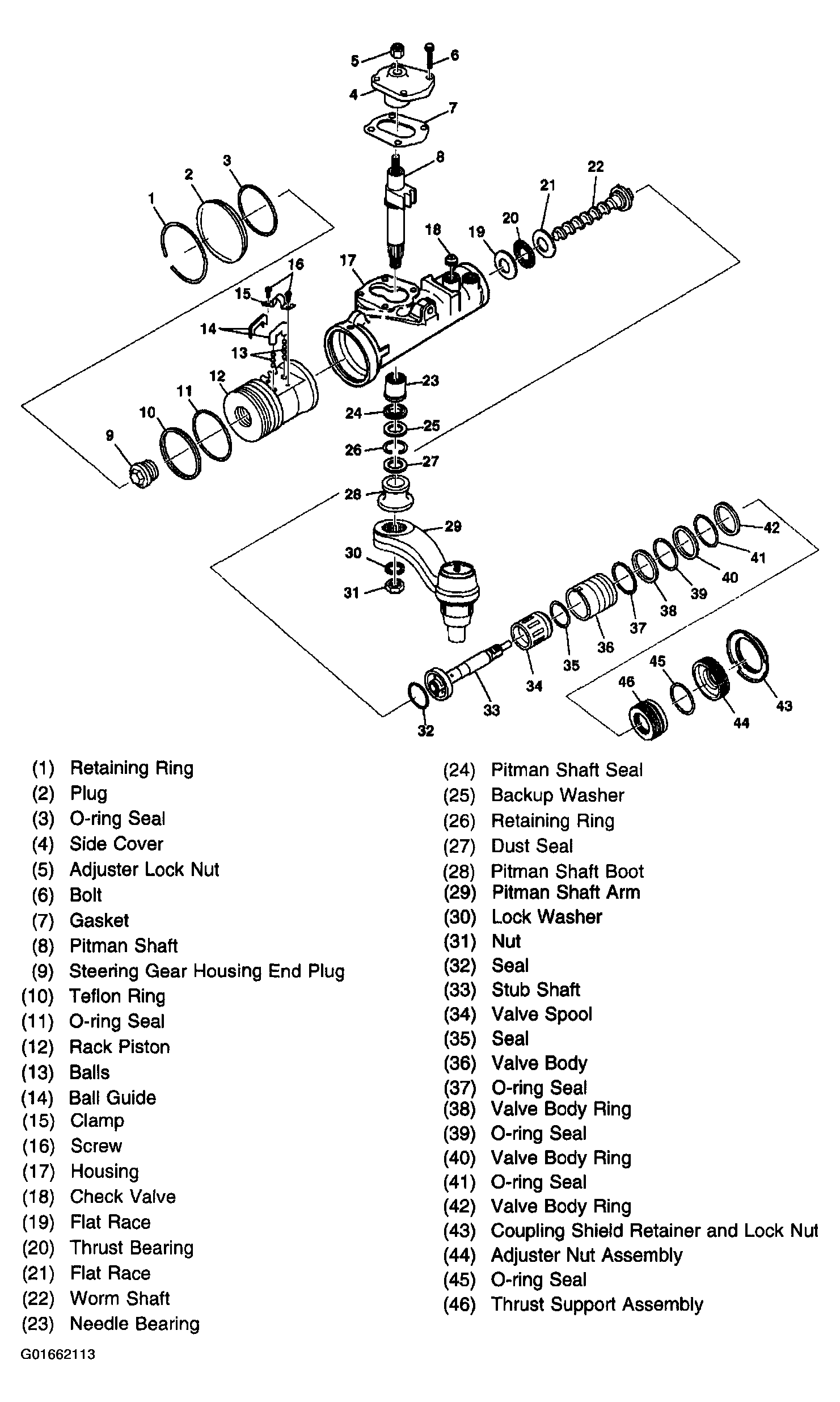

Fig 1: Identifying Power Steering Gear

G01662113

Courtesy of GENERAL MOTORS CORP.
