Identifying Recirculation Actuator Harness Connector End View
Identifying Recirculation Actuator Harness Connector End View

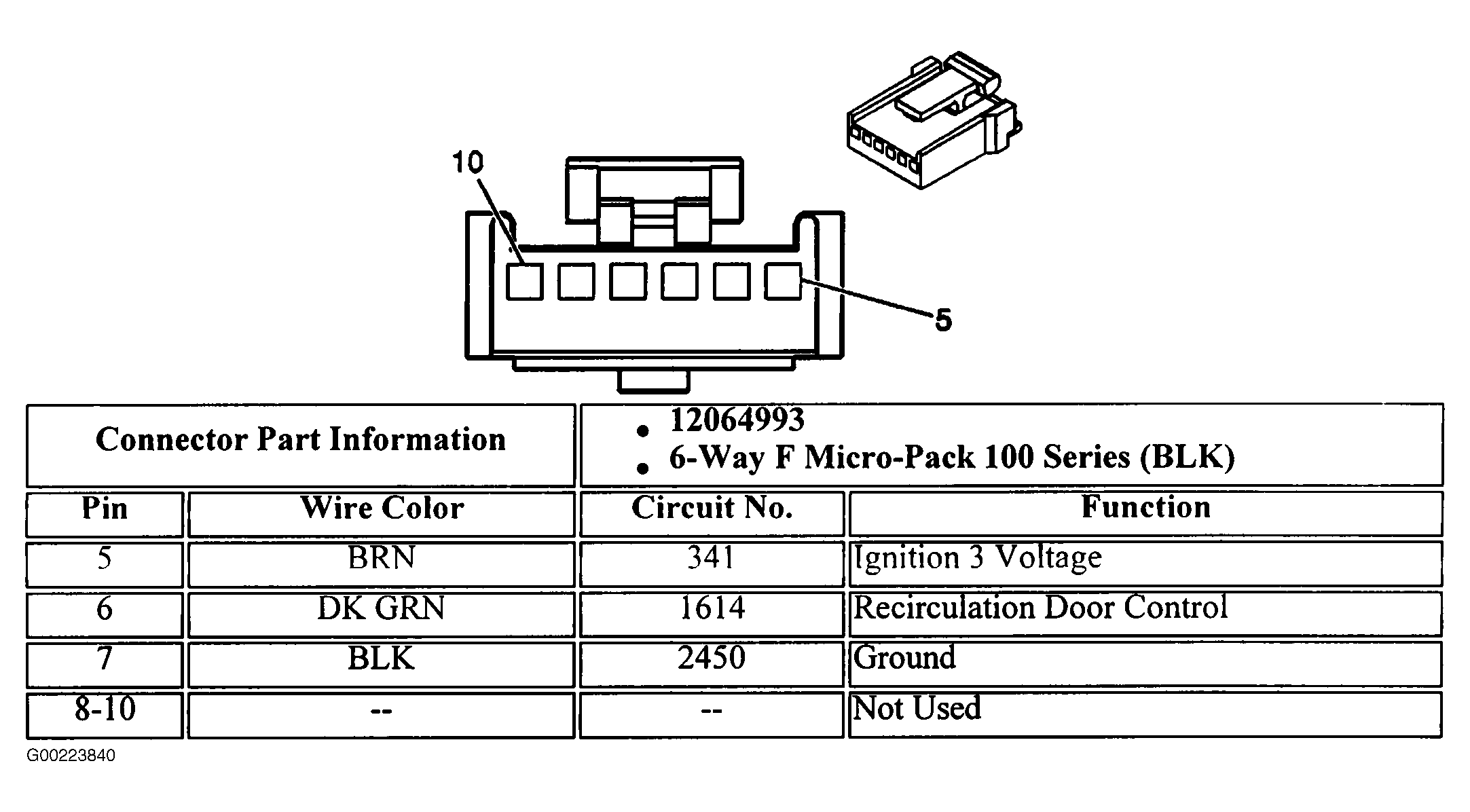

Fig 1: Identifying Recirculation Actuator Harness Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
