Section 985 (Cruise Control System)
>>
Schematic and Routing Diagrams
>>
Cruise Control Schematics
Cruise Control Schematics
WARNING:
This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

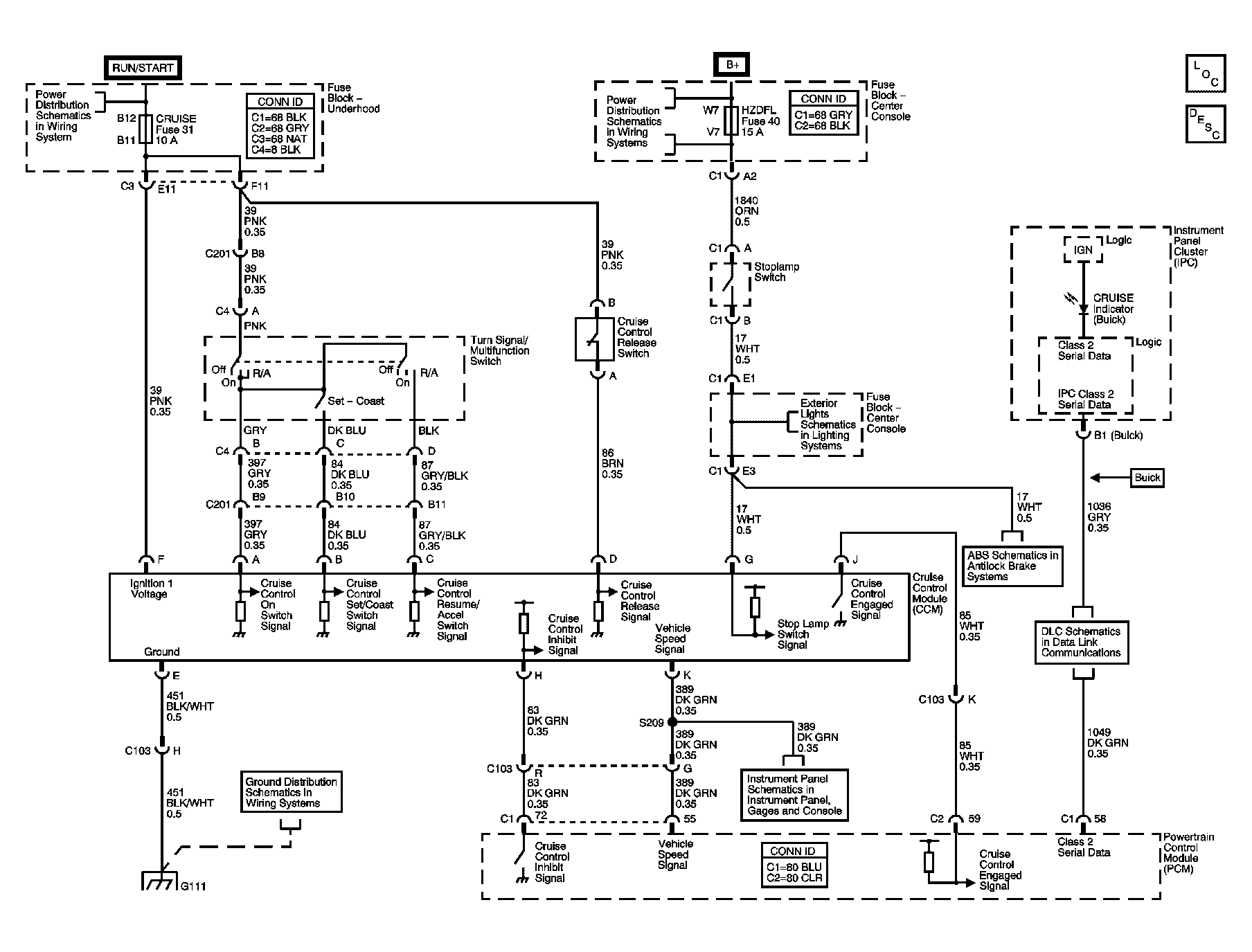

Fig 1: Cruise Control - LA1 Schematics
Courtesy of GENERAL MOTORS CORP.

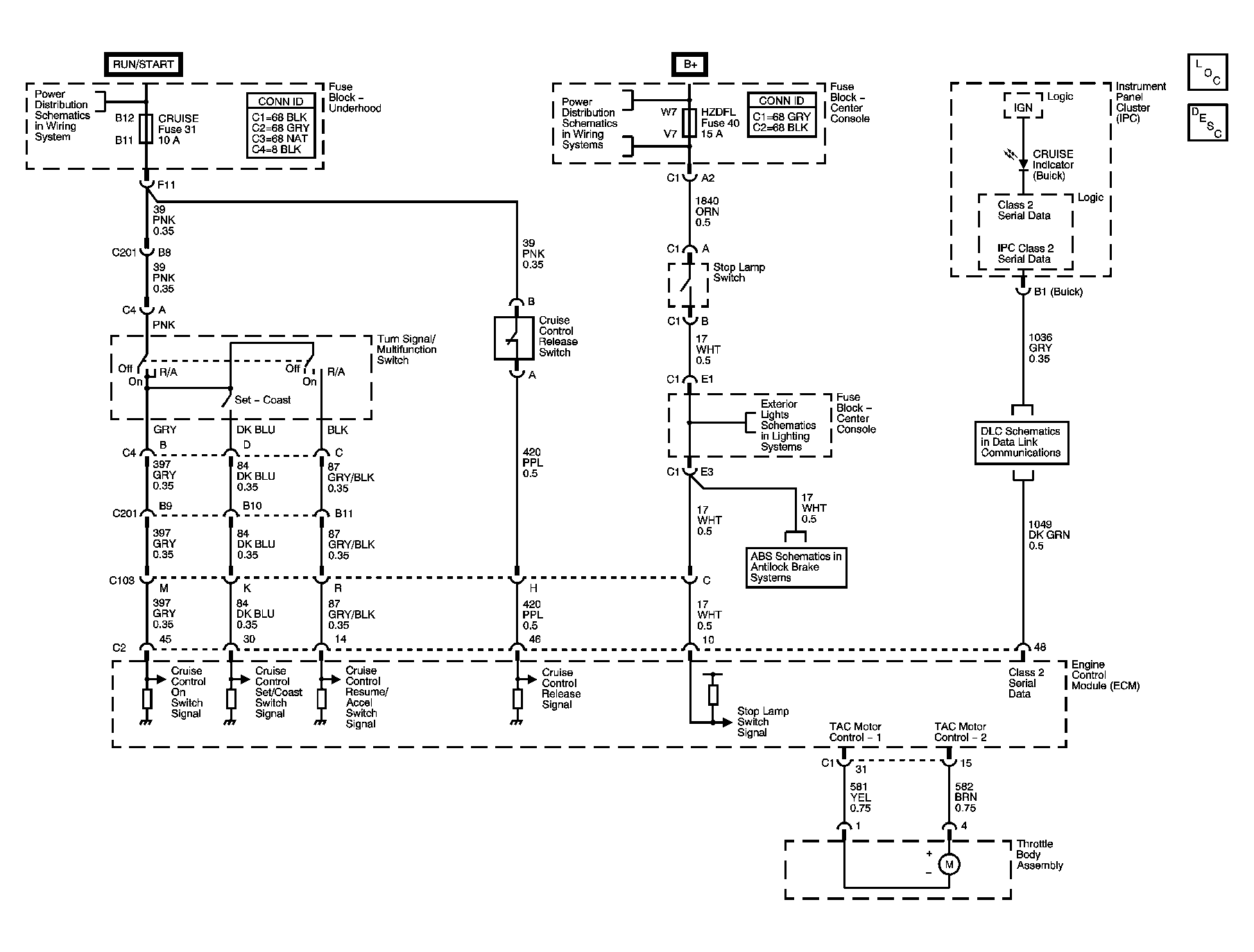

Fig 2: Cruise Control - LY7 Schematics
Courtesy of GENERAL MOTORS CORP.
